ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe for Fired Heater API661
ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe for Fired Heater API661
ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe for Fired Heater API661
ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe for Fired Heater API661
ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe for Fired Heater API661
ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe for Fired Heater API661
ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe for Fired Heater API661
ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe for Fired Heater API661
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA335 P11
Certification :
ABS, BV, DNV, GL, LR, SGS, IEI
Place of Origin :
CHINA
MOQ :
1000KGS
Payment Terms :
L/C, T/T
Supply Ability :
800Tons/ Month
Delivery Time :
7DAYS
Packaging Details :

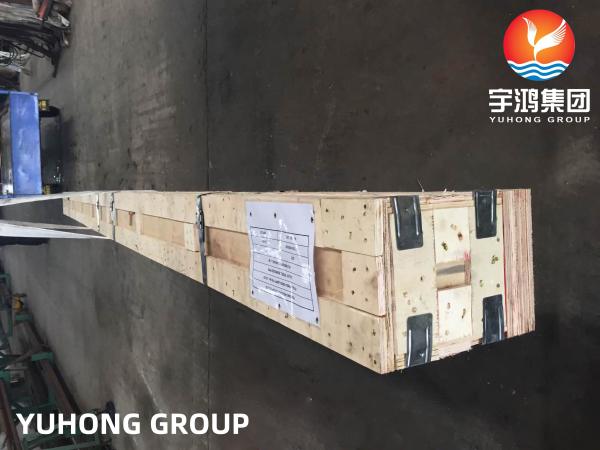

BUNDLE, PLYWOOD CASE
Price :
Negotiable
STANDARD :
ASME SA335
MATERIAL :
P11
SURFACE :
BLACK VANISH
LENGTH :
6000mm
END :
PLAIN, BEVELED
Test :
Nondestructive Test
DestructiveTest :
Hardness Test, Mechanical Test, Bend Test, Transverse Teanical test
Application :
Fired Heater API661
Description

ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe for Fired Heater API661

Chromium and molybdenum are important elements of P11. Chromium, or chrome, improves high-temperature strength, increases oxidation resistance and raises the tensile, yield and hardness at room temperatures. Molybdenum increases the strength, elastic limit, resistance to wear, impact qualities and hardenability. It increases the resistance to softening, restrains grain growth and makes chromium steel less susceptible to embrittlement. Moly is also the most effective additive for increasing high temperature creep strength, or creep resistance. It also enhances the corrosion resistance of steel and inhibits pitting.

Alloy steel seamless pipe
PIPES ASTM A335, ASTM A312
PIPES FITTINGS ASTM A234
FITTINGS & FLANGES ASTM A182
GRADES P1/P5/P9/P11/P12/P22/P91
FORM (PIPES) SEAMLESS

Yuhong Special Steel is Exporters & Supplier of alloy steel seamless pipe, alloy steel pipe gr.p5, alloy steel pipe gr.p11, alloy steel pipe gr.p9, alloy steel pipe gr.p22, alloy steel pipe

gr.p91
Available Shapes :

Tubes & Pipes (SEAMLESS ) up to 30".

Tubes & Pipes (ERW ) up to 60".

Sheets / plates up to 150 MM.

Rod / Bar up to 350 MM.

Circle up to 1000 & Above as per your requirements.

thickness up to 200 MM & Above as per requirements.

ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe

Size : 1/2" TO 24 "IN OD & NB

Schedule: SCH20, SCH30, SCH40
Type : Seamless
End : Plain End, Beveled End

MATERIALS :Alloy Steel Pipe A335 P11

ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe Chemical Composition(%)

Grade C Mn P≤ S≤ Si Cr Mo
P11 0.05-0.15 0.30-0.60 0.025 0.025 0.50-1.00 1.00-1.50 0.44-0.65
P22 0.05-0.16 0.30-0.60 0.025 0.025 ≤0.50 1.90-2.60 0.87-1.13
P5 ≤0.15 0.30-0.60 0.025 0.025 ≤0.50 4.00-6.00 0.45-0.65
P9 ≤0.15 0.30-0.60 0.025 0.025 0.25-1.00 8.00-10.00 0.90-1.10
P91 0.08-0.12 0.30-0.60 0.020/0.010 0.020/0.010 0.02-0.50 8.00-9.50 0.85-1.05
P92 0.07-0.13 0.30-0.60 0.020/0.010 0.020/0.010 ≤0.50 8.50-9.50 0.30-0.60

ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe Mechanical Properties

Grade Tensile strength Yield strength Elongation
P11, P22, P5, P9 ≥415 ≥205 ≥30/20
P91 ≥585 ≥415 ≥20
P92 ≥620 ≥440 ≥20


ASME SA335 P11 Ferritic Alloy Steel Seamless Pipe for Fired Heater API661
