ASME SB622 Hastelloy C22 UNS N06022 DIN 2.4602 Nickel Alloy Steel Tube for Oil and Gas Industry
ASME SB622 Hastelloy C22 UNS N06022 DIN 2.4602 Nickel Alloy Steel Tube for Oil and Gas Industry
ASME SB622 Hastelloy C22 UNS N06022 DIN 2.4602 Nickel Alloy Steel Tube for Oil and Gas Industry
ASME SB622 Hastelloy C22 UNS N06022 DIN 2.4602 Nickel Alloy Steel Tube for Oil and Gas Industry
ASME SB622 Hastelloy C22 UNS N06022 DIN 2.4602 Nickel Alloy Steel Tube for Oil and Gas Industry
ASME SB622 Hastelloy C22 UNS N06022 DIN 2.4602 Nickel Alloy Steel Tube for Oil and Gas Industry
ASME SB622 Hastelloy C22 UNS N06022 DIN 2.4602 Nickel Alloy Steel Tube for Oil and Gas Industry
ASME SB622 Hastelloy C22 UNS N06022 DIN 2.4602 Nickel Alloy Steel Tube for Oil and Gas Industry
Specifications
Brand Name :
Yuhong
Model Number :
ASTM B622 / B619/ B626 Hastelloy C22 (N06022, 2.4602)
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China
MOQ :
1000KGS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1500 tons per month
Delivery Time :
10days->
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap etc.
Standard :
ASME SB622
Grade :
Hastelloy C22 (N06022, 2.4602)
OD :
Up to 88.9MM
Length :
Max. : 12000MM/PC
Density :
8.69 g/cm³
Melting point :
1325-1370℃

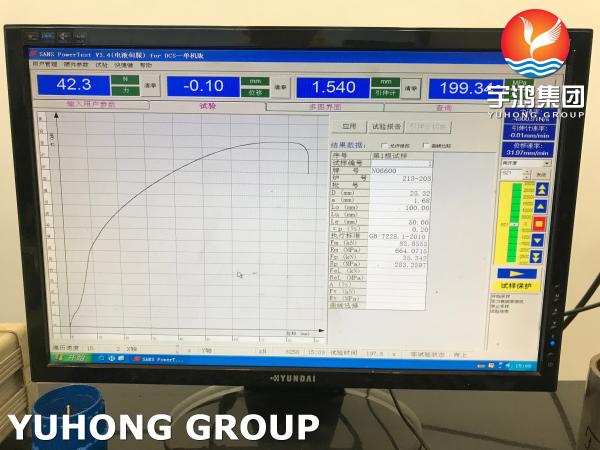

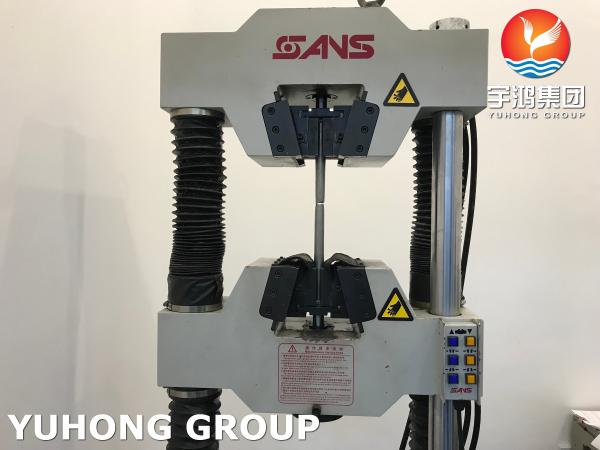

Test :
Specification B829
Description

ASME SB622 Hastelloy C22 UNS N06022 DIN 2.4602 Nickel Alloy Steel Tube for Oil and Gas Industry

Alloy C22 is a nickel, chromium and molybdenum superalloy reinforced with solid solution, with a nominal chemical composition of 56% nickel, 22% chromium and 13% molybdenum, with additions of iron, tungsten and cobalt. It is commonly referred to by the trade name HastelloyASTM B622 Hastelloy C22 N06022 2.4602 Nickel Alloy Seamless Tube C22 and the universal designation UNS N06022.

Chemical composition of Hastelloy C22

Element Content (%)
Chromium, Cr 20-22.5
Molybdenum, Mo 12.5-14.5
Tungsten, W 2.5-3.5
Cobalt, Co 2.5 min
Iron, Fe 2.0-6.0
Manganese. Mn 0.5 max
Vanadium, V 0.35 max
Silicon, Si 0.08 max
Phosphorus, P 0.02 max
Sulfur, S 0.02 max
Carbon, C 0.015 max
Nickel, Ni Remainder

Hastelloy C22 Equivalent Grade

Grade WERKSTOFF NR. UNS
Hastelloy C22 2.4602 N06022

ASTM B622 Hastelloy C22 Seamless Tube Weight Chart

OD inches Ave. Wall inches D/t Ratio ID inches Tube Cross Sectional Area (in2) Internal Area (in2)
0.250 0.020 12.50 0.210 0.0145 0.0346
0.250 0.028 8.93 0.194 0.0195 0.0296
0.250 0.035 7.14 0.180 0.0236 0.0254
0.250 0.049 5.10 0.152 0.0309 0.0181
0.250 0.065 3.85 0.120 0.0378 0.0113
0.375 0.020 18.75 0.335 0.0223 0.0881
0.375 0.028 13.39 0.319 0.0305 0.0799
0.375 0.035 10.71 0.305 0.0374 0.0731
0.375 0.049 7.65 0.277 0.0502 0.0603
0.375 0.065 5.77 0.245 0.0633 0.0471
0.500 0.020 25.00 0.460 0.0302 0.1662
0.500 0.028 17.86 0.444 0.0415 0.1548
0.500 0.035 14.29 0.430 0.0511 0.1452
0.500 0.049 10.20 0.402 0.0694 0.1213
0.500 0.065 7.69 0.370 0.0888 0.1075
0.500 0.083 6.02 0.334 0.1087 0.0876
0.625 0.020 31.25 0.585 0.0380 0.2688
0.625 0.028 22.32 0.569 0.0525 0.2543
0.625 0.035 17.86 0.555 0.0649 0.2419
0.625 0.049 12.76 0.527 0.0887 0.2181
0.625 0.065 9.62 0.495 0.1144 0.1924
0.625 0.083 7.53 0.459 0.1413 0.1655
0.625 0.095 6.58 0.435 0.1582 0.1486
0.625 0.109 5.73 0.407 0.1767 0.1301
0.750 0.028 26.79 0.694 0.0635 0.3783
0.750 0.035 21.43 0.680 0.0786 0.3632
0.750 0.049 15.31 0.652 0.1079 0.3339
0.750 0.065 11.54 0.620 0.1399 0.3019
0.750 0.083 9.04 0.584 0.1739 0.2679
0.750 0.095 7.89 0.560 0.1955 0.2463
0.750 0.109 6.88 0.532 0.2195 0.2223
0.750 0.120 6.25 0.510 0.2375 0.2043
0.875 0.020 43.75 0.835 0.0537 0.5476
0.875 0.028 31.25 0.819 0.0745 0.5268
0.875 0.035 25.00 0.805 0.0924 0.5090
0.875 0.049 17.86 0.777 0.1272 0.4742
0.875 0.065 13.46 0.745 0.1654 0.4359
0.875 0.083 10.54 0.709 0.2065 0.3948
0.875 0.095 9.21 0.685 0.2328 0.3685
0.875 0.109 8.03 0.657 0.2623 0.3390
0.875 0.120 7.29 0.635 0.2846 0.316L7
1.000 0.028 35.71 0.944 0.0855 0.6999
1.000 0.035 28.57 0.930 0.1061 0.6793
1.000 0.049 20.41 0.902 0.1464 0.6390
1.000 0.065 15.38 0.870 0.1909 0.5945
1.000 0.083 12.05 0.834 0.2391 0.5463
1.000 0.095 10.53 0.810 0.2701 0.5153
1.000 0.109 9.17 0.782 0.3051 0.4803
1.000 0.120 8.33 0.760 0.3318 0.4536
1.000 0.134 7.46 0.732 0.3646 0.4208
1.250 0.035 35.71 1.180 0.1336 1.0936
1.250 0.049 25.51 1.152 0.1849 1.0423
1.250 0.065 19.23 1.120 0.2420 0.9852
1.250 0.083 15.06 1.084 0.316L3 0.9229
1.250 0.095 13.16 1.060 0.3447 0.8825
1.250 0.109 11.47 1.032 0.3907 0.8365
1.250 0.120 10.42 1.010 0.4260 0.8012
1.250 0.134 9.33 0.982 0.4698 0.7574
1.500 0.035 42.86 1.430 0.1611 1.6061
1.500 0.049 30.61 1.402 0.2234 1.5438
1.500 0.065 23.08 1.370 0.2930 1.4741
1.500 0.083 18.07 1.334 0.3695 1.3977
1.500 0.095 15.79 1.310 0.4193 1.3478
1.500 0.109 13.76 1.282 0.4763 1.2908
1.500 0.120 12.50 1.260 0.5202 1.2469
1.500 0.134 11.19 1.232 0.5750 1.1921
1.500 0.148 10.14 1.204 0.6286 1.1385
1.750 0.035 50.00 1.680 0.1886 2.2167
1.750 0.049 40.82 1.902 0.3003 2.8413
1.750 0.065 26.92 1.620 0.3441 2.0612
1.750 0.083 21.08 1.584 0.4347 1.9706
1.750 0.095 18.42 1.560 0.4939 1.9113
1.750 0.109 16.06 1.532 0.5619 1.8433
1.750 0.120 14.58 1.510 0.6145 1.7908
1.750 0.134 13.06 1.482 0.6803 1.7250
1.750 0.148 11.82 1.454 0.7449 1.6604
1.750 0.165 10.61 1.420 0.8216 1.5837
2.000 0.035 57.14 1.930 0.2161 2.9255
2.000 0.049 40.82 1.902 0.3003 2.8413
2.000 0.065 30.77 1.870 0.3951 2.7465
2.000 0.083 24.10 1.834 0.4999 2.6417
2.000 0.095 21.05 1.810 0.5685 2.5730
2.000 0.109 18.35 1.782 0.6475 2.4941
2.000 0.120 16.67 1.760 0.7087 2.4328
2.000 0.134 14.93 1.732 0.7855 2.3561
2.000 0.148 13.51 1.704 0.8611 2.2805
2.000 0.165 12.12 1.670 0.9512 2.1904

ASME SB622 Hastelloy C22 UNS N06022 DIN 2.4602 Nickel Alloy Steel Tube​ Applications

  1. -Petrochemical
  2. -Oil & Gas
  3. -Paper
  4. -Refineries
  5. -Nuclear Power
  6. -Cement
  7. -Sugar
  8. -Power Plant
  9. -Fertilizers
  10. -Breweries
  11. -Chemical
  12. -Petrochemical
  13. -Shipbuilding
  14. -Defence
  15. -Mining
