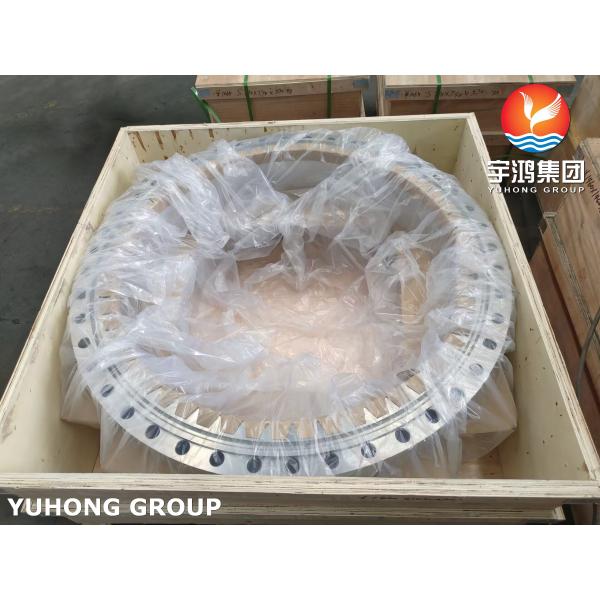

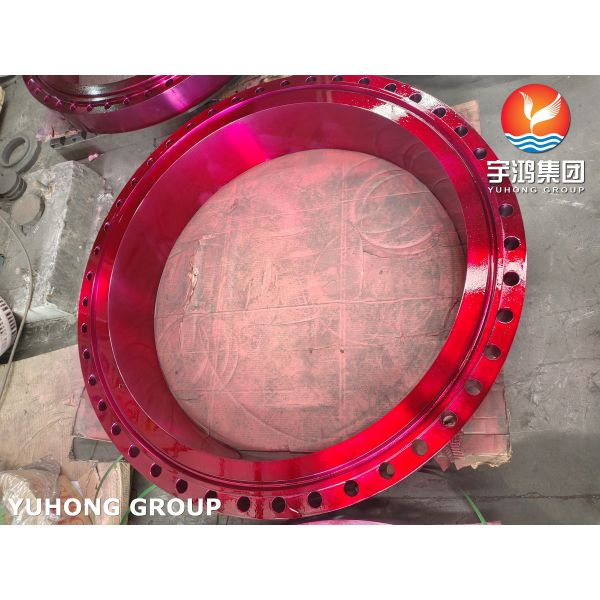

High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ
High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ
High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ
High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ
High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ
High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ
High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ
High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ
High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ
High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ
High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ
High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A182 F310
Certification :
API , ABS, DNV, GL , LR, NK
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
1000 tons per month
Delivery Time :
Depends on quantity
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Grade :
F310
Application :
Petroleum,Chemical, Fittings And Connection
Pressure :
Class150/300/600/9001500/2500
Color :
Natural Color
Specification :
ASTM A182
Packing :
Wooden Case
Description

High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ

Features of stainless steel 310:


High temperature resistance:


310 stainless steel is known for its excellent high temperature resistance. Withstands temperatures up to 1150°C (2100°F) in continuous operation and up to 1230°C (2250°F) in intermittent operation.

Corrosion resistance:


This grade of stainless steel exhibits excellent corrosion resistance, especially in mildly corrosive environments. It resists oxidation and scaling, making it suitable for applications involving high temperatures.

Strength and durability:


Stainless steel 310 or pipe flanges are known for their high strength and durability. It maintains its mechanical properties at both high and low temperatures, providing reliability under a wide range of operating conditions.

ASME SA182 SS 310 flanges can generally be easily cold formed using standard methods and equipment. UNS S31000 flanges have machining properties comparable to Type 304 flanges. Also known as wnr 1.4841 flanges, these grades are welded using matching electrodes and filler metal. We also offer similar customized sizes and shapes as per the demands of our esteemed clients.

Chemical Composition of F310

Grade

C

Mn

Si

P

S

Cr

Mo

Ni

N

310

min.
max.

-
0.25

-
2.00

-
1.50

-
0.045

-
0.030

24.0
26.0

-

19.0
22.0

-

Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB)
max
310 515 205 40 95 217

PT

High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ

High Corrosion Resistance ASTM A182 F310 Forged Flange Weldneck RTJ

Physical Properties

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion(μm/m/°C) Thermal Conductivity(W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity (nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
310 7750 200 15.9 16.2 17.0 14.2 18.7 500 720

Equivalent Material

STANDARD

WERKSTOFF NR.

UNS

JIS

BS

GOST

AFNOR

EN

F310 Flanges

1.4841

S31000

SUS 310

310S24

20Ch25N20S2

-

X15CrNi25-20

Applications

  1. Oil and Gas Industries
  2. Food Processing Industries
  3. Equipments
  4. Pipeline
  5. Power Industries
  6. Ship Building Industries
  7. Paper Industries
  8. Cement Industries
  9. Chemical Industries
