Specifications
Brand Name :
YUHONG
Model Number :
ASME SA335 P9 K90941
Certification :
ISO9001-2008, PED, AD2000, LR, API 5L
Place of Origin :
CHINA
MOQ :
1000KGS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1500 Tons per Month
Delivery Time :
10days->
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
ASME SA213
Grade :
P9, K90941
Manufacture :
Cold drawn
Test :
Hydrostatic Test, , Mechanical Test(Hardness Test, Transverse Test, Longitudinal Tension Test, Flattening Test, Bend Test)
Nondestructive Examination :
Practise E213, E309, E570
Description

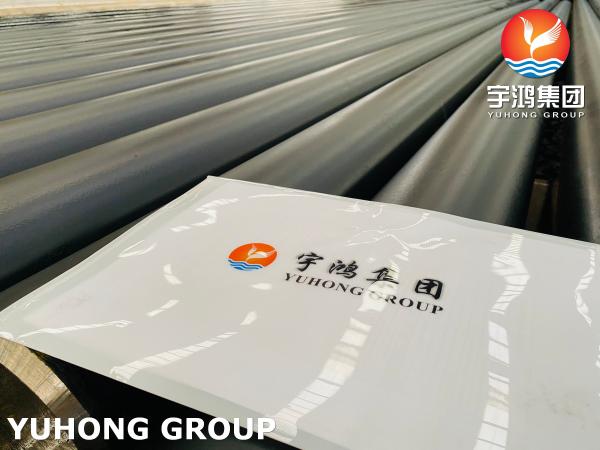

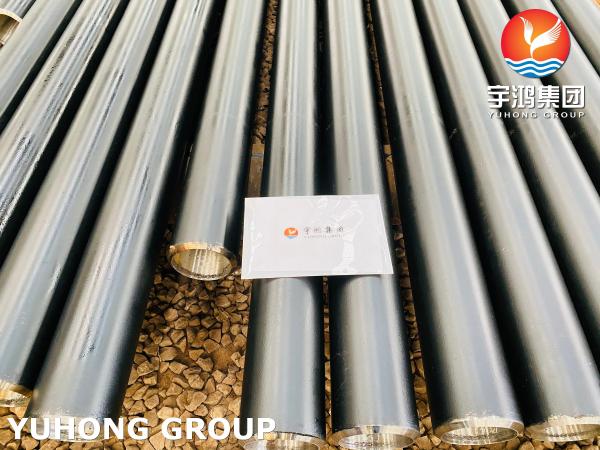

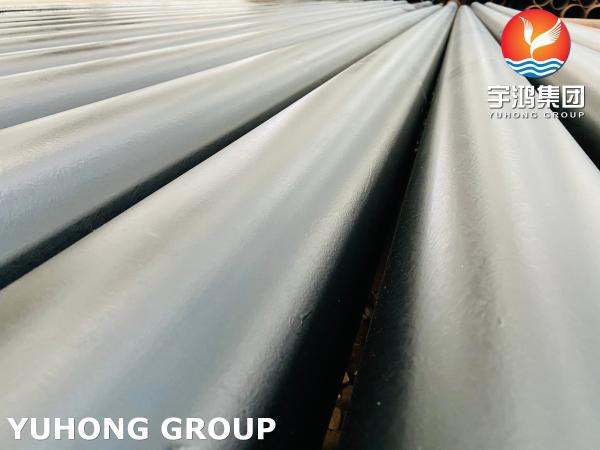

ASME SA335 P9 K90941 Ferritic Alloy Steel Seamless Pipe for Thermal Power Generation

ASME SA335 P9 Ferritic Alloy Steel Seamless Pipe are designed to cover nominal (average) wall seamless alloy-steel pipes meant for high-temperature applications.

SA335 P9 belongs to the high-temperature chromium-molybdenum alloy heat-resistant steel category. With excellent oxidation resistance, high-temperature strength, and resistance to sulfide corrosion, A335 P9 finds extensive usage in high-temperature, high-pressure, flammable, and explosive pipelines within petroleum refining and chemical equipment sectors, particularly in the direct heating pipes of heating furnaces. The operating temperature can range between 550-600 ℃.

ASME SA335 P9 Ferritic Alloy Steel Seamless Pipe Equivalent grade
GradeStandardCountry
STBA26JIS G3462Japan
T9ASTM A213U.S.A
HT7SAVDNIKSweden

ASME SA335 P9 Ferritic Alloy Steel Seamless Pipe Key Specifications

  • ASME SA335 Pipes: P9
  • Size Range: 1/8" to 26"
  • Schedules: 20, 30, 40, Standard (STD), 80, 100, 120, 140, 160, etc.

ASME SA335 P9 Ferritic Alloy Steel Seamless Pipe Chemical Composition

GradeChemical Composition(%)
CMnPSSiCrMo
P9≤0.0150.30-0.60≤0.025≤0.0250.25-1.008.00-10.000.90-1.10

ASME SA335 P9 Ferritic Alloy Steel Seamless Pipe Mechanical Property

GradeMechanical property
Tensile Strength(MPa)Yield Strength(MPa)Elongation(%)
P9≥415≥205≥30

ASME SA335 P9 Ferritic Alloy Steel Seamless Pipe Outside diameter tolerances

NPS DesignatorOverUnder
in.mmin.mm
1⁄8 to 1 1⁄2 , incl.1 ⁄ 64 (0.015)0.401 ⁄ 64 (0.015)0.40
Over 1 1⁄2 to 4, incl.1 ⁄ 32 (0.031)0.791 ⁄ 32 (0.031)0.79
Over 4 to 8, incl.1 ⁄ 16 (0.062)1.591 ⁄ 32 (0.031)0.79
Over 8 to 12, incl.3 ⁄ 32 (0.093)2.381 ⁄ 32 (0.031)0.79
Over 12


± 1 %

ASME SA335 P9 Ferritic Alloy Steel Seamless Pipe Inquiry Information
(1) Quantity (feet, centimetres, or number of lengths),
(2) Name of material (seamless alloy steel pipe),
(3) Grade (P9)
(4) Manufacture (hot-finished or cold-drawn),
(5) Size (NPS or outside diameter and schedule number or average wall thickness),
(6) Length (specific or random),
(7) End finish
(8) Test report required
