Specifications
Brand Name :
YUHONG
Model Number :
TP316L
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500KG
Price :
Discussion
Payment Terms :
T/T, L/C at sight
Supply Ability :
According to client requirements
Delivery Time :
5-8 DAYS
Packaging Details :
According to client requirements/wooden drum packing
Material Grade :
TP316L
Standard :
ASTM A269
Test :
Chemical composition, mechanical test(flaring test for seamless tube), nondestructive rest,
Suppementary Test :
Pneumatic test, intergranular corrision test
Description

ASME BPE Compliant TP316L Seamless Tube for Analytical Equipment​


Yuhong Special Steel has been dealing with seamless stainless steel tubes for more than 10 years. Our customers have covered more than 45 countries. Our seamless stainless steel tubes are widely used in mining, energy, petrochemical, chemical, food mill, paper mill, gas and fluid industries.

ASTM A269 Stainless Steel Welded Coiled Tube

(1)Commodity name: Austenitic Stainless Steel Coil Tubes
(2)Process method: cold drawn/cold pilgered
(3)Material: TP304, TP304L,TP316L,dual grade 317L , 316Ti, TP321

(4)Standard: ASTM ( ASME) ,EN, DIN, JIS and etc.
(5)Specifications:a) O.D.:1/4" -3/4"
b) W.T.:0.028"- 0.065"
c) Length:customized, max:500m/pc.
(6)Delivery conditions: annealed & pickled
(7)Applications: widely used in petrol, chemical, pharmacy, foodstuff, machinery, spaceflight,

war industry.

(8)boiler gas, hot water heating parts, hardware, shipping, power and other

industries.
(9)Packing: packed by weaving bags, then protected by seaworthy wooden case.

American Standard

Austenitic Steel:
TP304,TP304L,TP304H, TP304N, TP310S,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :
S32101,S32205,S31803,S32304,S32750, S32760
Others:
TP405,TP409, TP410, TP430, TP439...

Europen Standard

 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

GOST

08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9,
17Х18Н9, 08Х22Н6Т, 06ХН28МДТ

Imperial size Metric size
OD
inch		 WT
inch		 OD
mm		 WT
mm
1/8 (0.125) 0.028 3.18 0.71
0.035 3.18 0.89
3/16 (0.188) 0.028 4.76 0.71
0.035 4.76 0.89
0.049 4.76 1.24
1/4 (0.250) 0.035 6.35 0.89
0.049 6.35 1.24
0.065 6.35 1.65
0.083 6.35 2.11
3/8 (0.375) 0.035 9.53 0.89
0.049 9.53 1.24
0.065 9.53 1.65
0.083 9.53 2.11
1/2 (0.500) 0.035 12.7 0.89
0.049 12.7 1.24
0.065 12.7 1.65
0.083 12.7 2.11

ASTM A269 Stainless Steel Welded Coiled Tube Test Requirement

  • Quality Requirement: Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable
  • Test NTD ( Ultrasonic test , Eddy Current test )
  • Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
  • Metal Test ( Metallographic Analysis , Impact Test - High / low temperature )

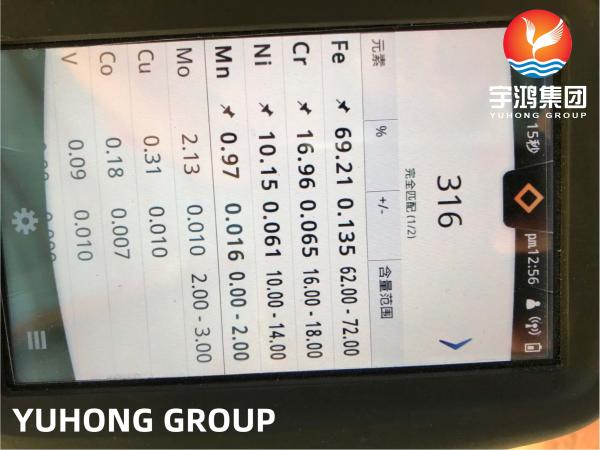

  • Chemical Analysis ( Photoelectric Emission Spectroscopic )

ASME BPE Compliant TP316L Seamless Tube for Analytical Equipment​
