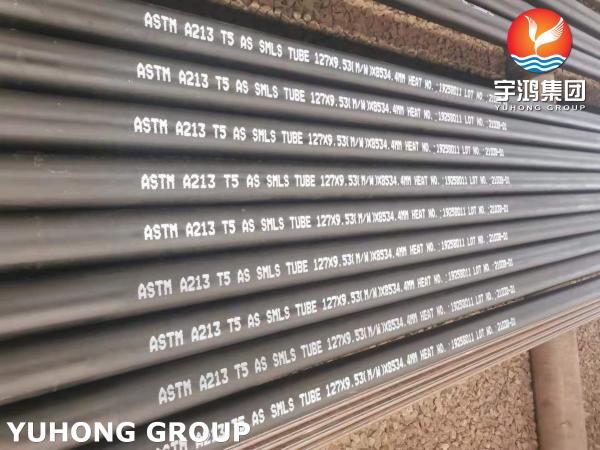

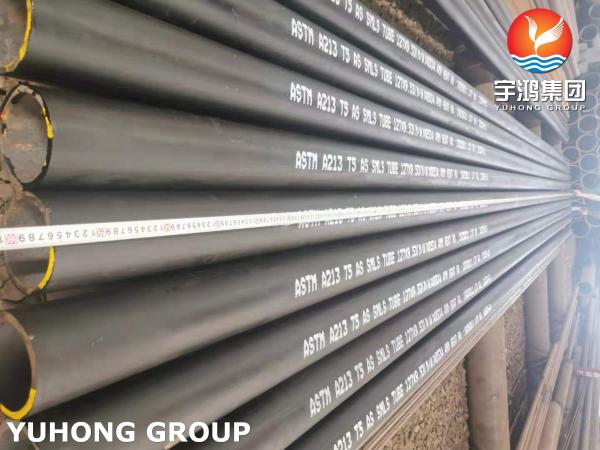

Superheater Alloy Steel Seamless Tube, ASTM A213 Gr.T5, Used In Power Generation Plant
Superheater Alloy Steel Seamless Tube, ASTM A213 Gr.T5, Used In Power Generation Plant
Superheater Alloy Steel Seamless Tube, ASTM A213 Gr.T5, Used In Power Generation Plant
Superheater Alloy Steel Seamless Tube, ASTM A213 Gr.T5, Used In Power Generation Plant
Superheater Alloy Steel Seamless Tube, ASTM A213 Gr.T5, Used In Power Generation Plant
Superheater Alloy Steel Seamless Tube, ASTM A213 Gr.T5, Used In Power Generation Plant
Superheater Alloy Steel Seamless Tube, ASTM A213 Gr.T5, Used In Power Generation Plant
Superheater Alloy Steel Seamless Tube, ASTM A213 Gr.T5, Used In Power Generation Plant
Specifications
Brand Name :
YUHONG GROUP
Model Number :
T5
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
10000 Ton/month
Delivery Time :
Depends on quantity
Packaging Details :
Bundle /Ply-wooden Case
Material Grade :
T5
Standard :
ASTM A213
Size :
1/8" - 24”
W.T. :
SCH20-XXS
Length :
1000-12500mm
NDT :
ET,HT,UT
Packing :
Ply-wooden Case /Iron Case/ Bundle
Appllication :
heat exchanger/ chemical
Description

Superheater Alloy Steel Seamless Tube, ASTM A213 Gr.T5, Used In Power Generation Plant

Overview of A213 Gr.T5 Tube

A213 T5 alloy steel tube is equivalent to domestic 1Cr5Mo alloy steel pipe, metal organization is martensite, in about 650 degrees Celsius has good oxidation resistance, in 600 degrees Celsius below has good thermal strength, and good shock absorption and thermal conductivity, widely used in steam turbines. But these steels have a greater tendency to harden.

Chemical Composition of A213 Gr.T5 Tube

Grade

UNS

C=

Mn

P=

S=

Si=

Cr

Mo

T1

K11522

0.10~ 0.20

0.30~ 0.80

0.025

0.025

0.10~ 0.50

-

0.44~ 0.65

T2

K11547

0.10~ 0.20

0.30~ 0.61

0.025

0.025

0.10~ 0.30

0.50~ 0.81

0.44~ 0.65

T5

K41545

0.15

0.30~ 0.60

0.025

0.025

0.50

4.00~ 6.00

0.44~ 0.65

T5b

K51545

0.15

0.30~ 0.60

0.025

0.025

1.00~ 2.00

4.00~ 6.00

0.44~ 0.65

T5c

K41245

0.12

0.30~ 0.60

0.025

0.025

0.50

4.00~ 6.00

0.44~ 0.65

T9

S50400

0.15

0.30~ 0.60

0.025

0.025

0.50~ 1.00

8.00~ 10.00

0.44~ 0.65

T11

K11597

0.05~ 0.15

0.30~ 0.61

0.025

0.025

0.50~ 1.00

1.00~ 1.50

0.44~ 0.65

T12

K11562

0.05~ 0.15

0.30~ 0.60

0.025

0.025

0.50

0.80~ 1.25

0.44~ 0.65

T15

K11578

0.05~ 0.15

0.30~ 0.60

0.025

0.025

1.15~ 1.65

-

0.44~ 0.65

T21

K31545

0.05~ 0.15

0.30~ 0.60

0.025

0.025

0.50

2.65~ 3.35

0.80~ 1.60

T22

K21590

0.05~ 0.15

0.30~ 0.60

0.025

0.025

0.50

1.90~ 2.60

0.87~ 1.13

T91

K91560

0.08~ 0.12

0.30~

0.60

0.020

0.010

0.20~ 0.50

8.00~ 9.50

0.85~ 1.05

T92

K92460

0.07~ 0.13

0.30~ 0.60

0.020

0.010

0.50

8.50~ 9.50

0.30~ 0.60

Mechanical Property of ASTM A213 GR.T5 Tube

Tensile Strength, MPa

Yield Strength, MPa

Elongation, %

415 min

205 min

30 min

Physical Properties Of ASTM A213 GR.T5 Tube

304L Stainless Steel Pipe Density (lb / cu. in.) 0.29
Specific Gravity(kgs/dm³) 7.93
Specific Heat (Btu/lb/Deg°F – [32-212 Deg °F]) 0.12
Electrical Resistivity (microhm-cm (at 68 Deg °F)) 432
Melting Point (Deg°F) 2650
Modulus of Elasticity Tension 28

ASTM A213 GR.T5 Tube APPLICATION

  • Gas Processing
  • Petrochemical
  • Power Generation
  • Food Processing
  • Chemical
  • Oil & Gas

Superheater Alloy Steel Seamless Tube, ASTM A213 Gr.T5, Used In Power Generation Plant
