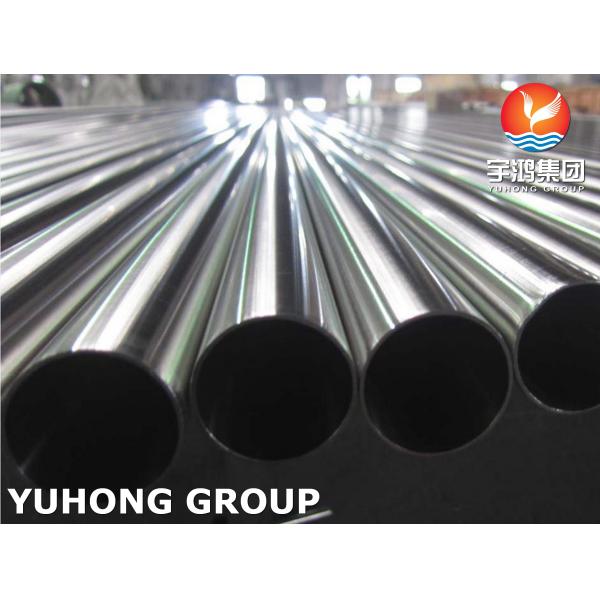

ASTM A270 TP316L / 1.4404 Stainless Steel Sanitary Pipe For Food Processing Industry
ASTM A270 TP316L / 1.4404 Stainless Steel Sanitary Pipe For Food Processing Industry
ASTM A270 TP316L / 1.4404 Stainless Steel Sanitary Pipe For Food Processing Industry
ASTM A270 TP316L / 1.4404 Stainless Steel Sanitary Pipe For Food Processing Industry
ASTM A270 TP316L / 1.4404 Stainless Steel Sanitary Pipe For Food Processing Industry
ASTM A270 TP316L / 1.4404 Stainless Steel Sanitary Pipe For Food Processing Industry
ASTM A270 TP316L / 1.4404 Stainless Steel Sanitary Pipe For Food Processing Industry
ASTM A270 TP316L / 1.4404 Stainless Steel Sanitary Pipe For Food Processing Industry
Specifications
Brand Name :
YUHONG
Model Number :
TP316L, 1.4404, UNS S31603
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
500 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According To Customers' Request
Delivery Time :
15 - 90 Work Days
Packaging Details :
Ply-Wood Case / Bundle with Plastic Cap
Product Name :
Sanitary Pipe
Standard :
ASTM A270, ASME SA270
Material Grade :
TP316L, 1.4404, UNS S31603
Type :
Welded, Seamless
Surface :
Bright Annealed
Shape :
Round
Description

ASTM A270 TP316L / 1.4404 Stainless Steel Welded Sanitary Pipe For Food Processing Industry

ASTM A270 TP316L Seamless Sanitary Tube/Pipe is produced as hot steel billets are passed through extruded metal to put them in their correct position. This gives the pipes without any welds excellent strength and load-bearing capacity than the welded pipes. The ASME SA270 TP316L Welded Sanitary Tube/Pipe is cheaper than these components and is available in different sizes and not restricted to a specific size as seamless tubes. The ASME SA270 TP316L Stainless Steel Welded Sanitary Pipe has good strength and torsion, allowing it to function efficiently in harsh environments. The pipes have a long service life and don’t deteriorate under any pressures in the system.

Equivalent Grades:

UNS No Old British Euronorm Swedish
SS		 Japanese
JIS
BS No Name
S31603 316S11 1.4404 X2CrNiMo17-12-2 2348 SUS 316L

Chemical Composition:

C Mn Si P S Cr Mo Ni N
Min – – – – – 16 2 10 –
Max 0.03 2 0.75 0.045 0.03 18 3 14 0.1

Mechanical Properties:

Elongation (% in 50mm) min Hardness Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min
Rockwell B (HR B) max Brinell (HB) max
95 217 485 170 40

Physical Properties:

Grade Density
(g/cm3)		 Elastic Modulus
(GPa)		 Mean Co-eff of Thermal Expansion (µm/m/°C) Thermal Conductivity
(W/m.K)		 Specific Heat 0-100°C
(J/kg.K)		 Elec Resistivity
(nΩ.m)
0-100°C 0-315°C 0-538°C 100°C 500°C
TP316L 8 193 15.9 16.2 17.5 16.3 21.5 500 740

Applications:

  • Refining
  • Gas transmission
  • refrigeration machinery
  • Petrochemical industry
  • Pulp and paper industry
  • Heating and Air Conditioning
  • Chemical & Electric Power
  • Food Processing Industry

ASTM A270 TP316L / 1.4404 Stainless Steel Sanitary Pipe For Food Processing Industry
