Specifications
Brand Name :
YUHONG HOLDING GROUP
Model Number :
ASME B111 C44300 SB 395
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000Ton per month
Delivery Time :
10-15 DAYS

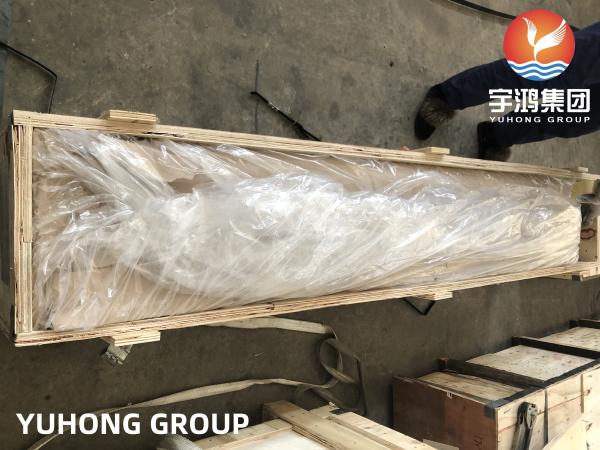

Packaging Details :
Wooden Box package
Name :
Straight Copper Seamless Tube
Material :
C44300 C70600 C68700
Diameter :
3mm-500mm
Thickness :
0.5mm-10mm
Processing :
Bending, Decoiling, Welding, Punching, Cutting
Application :
Heat exchangers, condensers, and cooling systems; desalination equipment.
Description

Copper Nickel Tube Admiralty Bass Tube ASTM B111 C70600 C68700 C44300 Heat exchangers, Condensers, Cooling systems Application

ASME SB111 and ASTM B111 are internationally recognized standards that specify the requirements for seamless copper alloy tubes commonly used in heat exchangers, condensers, and similar applications. The C68700 alloy, also known as Aluminum Brass, is a high-performance copper-zinc alloy with excellent corrosion resistance and mechanical properties.

Copper Alloy Tube chemical Requirement:

Copper or Copper Alloy UNS No. CopperA Tin Aluminum Nickel, incl Cobalt Lead, max Iron Zinc Managnese Arsenic Antimony Phosphorus Chro
mium		 Other Named Elements
C10200 99.95 min - - - - - - - - - - - -
C12000 99.90 min - - - - - - - - - 0.004-0.012 - -
C12200 99.9 min - - - - - - - - - 0.015-0.040 - -
C14200 99.40 min - - - - - - - 0.15-0.50 - 0.015-0.040 - -
C19200 98.7 min - - - - 0.8-1.2 - - 0.15-0.50 - 0.01-0.04 - -
C23000 84.0-86.0 - - - 0.05 0.05 max remalnder - - - - - -
C28000 59.0-63.0 - - - 0.30 0.07 max remainder - - - - - -
C44300 70.0-73.0 0.9-1.2 - - 0.07 0.06 max remainder - 0.02-0.06 - - - -
C44400 70.0-73.0 0.9-1.2 - - 0.07 0.06 max remainder - - 0.02-0.10 - - -
C44500 70.0-73.0 0.9-1.2 - - 0.07 0.06 max remainder - - - 0.02-0.10 - -
C60800 remainder - 5.0-6.5 - 0.10 0.10 max - - 0.02-0.35 - - - -
C68700 76.0-79.0 - 1.8-2.5 - 0.07 0.06 max remainder - 0.02-0.10 - - - -
C70400 remainder - 4.8-6.2 0.05 1.3-1.7 1.0max 0.30-0.8 - - - - -
C70600 remainder - 9.0-11.0 0.05B 1.0-1.8 1.0maxB 1.0max - - B - B
C71000 remainder - 19.0-23.0 0.05B 0.50-1.0 1.0maxB 1.0max - - B - B
C71500 remainder - 29.0-33.0 0.05B 0.40-1.0 1.0maxB 1.0max - - B - B
C71640 remainder - 29.0-32.0 0.05B 1.7-2.3 1.0maxB 1.5-2.5 - - B - B
C72200 remainder - 15.0-18.0 0.05B 0.50-1.0 1.0maxB 1.0max - - B 0.30
-0.70		 B

Copper Alloy Tube diameter Tolerance :

Outside Diameter, in Wall Thickness, in.
0.020A
0.022
0.025
0.028		 0.032 0.035 0.042 0.049 and Over
Diameter Tolerance, Plus and Minus, in.
Up to 0.500, incl 0.003 0.0025 0.0025 0.0025 0.0025
Over 0.500-0.740, incl 0.0040 0.004 0.004 0.0035 0.003
Over 0.500-7.40, incl 0.0060 0.006 0.005 0.0045 0.004
Over 0.740-1.000, incl ... 0.009 0.008 0.006 0.045
Over 1.250-1.375, incl ... ... ... 0.008 0.005
Over 1.375-2.000, incl ... ... ... ... 0.006


A Tolerances in this column are applicable to light drawn and drawn tempers only.
Tolerances for annealed tempers shall be as agreed upon between the manufacturer and the purchaser.

Copper Alloy Seamless Tube Wall Thickness Tolerance ,

Wall Thicness, in. Outside Diameter, in.
Over ? to ?, incl Over ? to 1, incl Over 1 to 2, incl
0.020, incl to 0.032 0.003 0.003 ...
0.032, incl to 0.035 0.003 0.003 0.004
0.035, incl to 0.058 0.004 0.0045 0.0045
0.058, incl to 0.083 0.0045 0.005 0.005
0.083, incl to 0.120 0.005 0.0065 0.0065
0.120, incl to 0.134 0.007 0.007 0.0075

Product Name
Hollow Brass Tube H62 C28000 C44300 c68700 Brass Pipe
Material
Brass:C21000,C22000,C22600,C23000,C24000,C26000,C26130,C26800,
C27000,C27200,C27400,C2800,H59,H62,H70,H65,H80,H90,CuZn30,
CuZn37,CuZn35,CuZn40,etc
Leaded brass:
C31400,C31600,C32000,C33000,C33200,C33500,C34000,C34200,
C34500,C35000,C35300,C35600,C36000,C36500,C37000,C37700,C38000,C38500,etc
Tin brass:
C40500,C40800,C41100,C42200,C44400,C48200,C46400,C46200
Aluminium bronze:C60600,C62300,C62400,C63000,C63200,C64200,etc
Nickel copper:C71000,C71500,C70400,C70600,C70250,C70260,C71520
C72200,C74500,C75200,C77400,etc
Phosphor bronze:C50500,C51100,C52100,C51980,etc
Size
Outside Diamter 2~914mm Wall thickness 0.2-120mm Length 1~12meters
Hardness
1/16 hard,1/8 hard,1/4 hard,1/2hard,full hard
Surface
mill,polished,bright,hair line,mirror,brush,sand blast,etc
Price Term
x-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU,etc
Payment Term
TT,L/C,Western Union,D/P,etc
Used
Brass pipe have strong, corrosion resistant properties, and become a modern contractor in all ofcommodity house pipes,heating, cooling water piping installation of choice
Export to
Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA,Brazil,
Thailand,Korea,Russia,Chile,India,Egypt,Oman,Kuwait,Egypt,VietNam,
England,Holland,Mexico,Peru,Malaysia,Italy,Nigeria,etc
Package
Standard export package,suit for all kinds of transport,or as required.
Container Size
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
