ASTM A516 Gr.70 Gr.70N Carbon Steel Stationary Tubesheet For Heat Exchanger Parts
ASTM A516 Gr.70 Gr.70N Carbon Steel Stationary Tubesheet For Heat Exchanger Parts
ASTM A516 Gr.70 Gr.70N Carbon Steel Stationary Tubesheet For Heat Exchanger Parts
ASTM A516 Gr.70 Gr.70N Carbon Steel Stationary Tubesheet For Heat Exchanger Parts
ASTM A516 Gr.70 Gr.70N Carbon Steel Stationary Tubesheet For Heat Exchanger Parts
ASTM A516 Gr.70 Gr.70N Carbon Steel Stationary Tubesheet For Heat Exchanger Parts
ASTM A516 Gr.70 Gr.70N Carbon Steel Stationary Tubesheet For Heat Exchanger Parts
ASTM A516 Gr.70 Gr.70N Carbon Steel Stationary Tubesheet For Heat Exchanger Parts
Specifications
Brand Name :
YUHONG
Model Number :
Gr.70, Gr70N
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According to Clients' Requirement
Delivery Time :
5 - 60 Work Days
Packaging Details :
Ply Wooden Case with Waterproof Membrane
Standard :
ASTM A516, ASME SA516
Material Grade :
Gr.70, Gr.70N
Size :
Customized
Surface Treatment :
Polishing
Material :
Stainless Steel, Carbon Steel
Applications :
Heat Exchanger, Boiler, Petroleum, Condenser, Etc.
Description

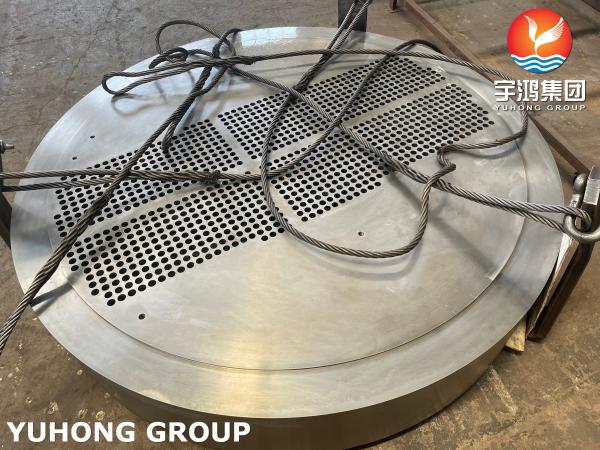

ASTM A516 Gr.70 Gr.70N Carbon Steel Stationary Tubesheet For Heat Exchanger Parts

Tubesheet is widely used in shell and tube heat exchanger, boiler, pressure vessel, steam turbine, etc. The material of metal makes it not only has strong rigidity, but also has a great deal of Heat conduction performance. ASTM A516 Gr.70+N steel is characterised by good weldability and high resistance to brittle cracking. This material is widely used for manufacturing vessels for pressurised gas, pressure vessels, steam boilers, pressure piping, compressors, etc. Tubesheet is one of the main components of the shell and tube heat exchanger. Depending on the configuration of the tueb bundle, a heat exchanger can be equipped with one or two tubesheets. These are usually made of low carbon steel material, but depending on the applications such as petrochemical, nuclear, oil&gas, etc., the tubesheet can be made of Stainless Steel or Superalloys.

Feature:

  • High Gloss
  • Good Tube Hole Surface Quality
  • High Precisive

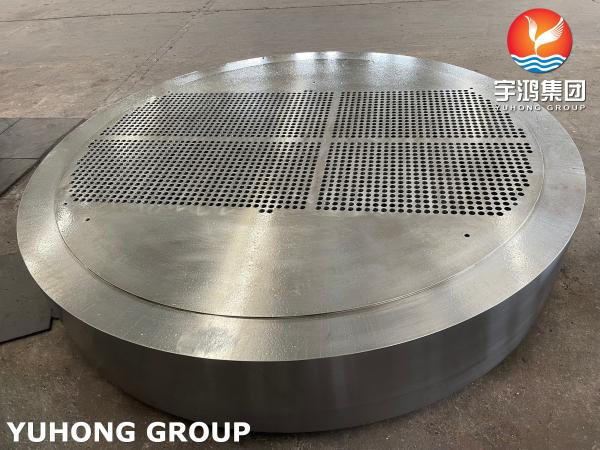

ASTM A516 Gr.70 Gr.70N Carbon Steel Stationary Tubesheet For Heat Exchanger Parts

Mechanical Properties:

Element Gr. 70N
Tensile strength 70 -90Ksi, 485 - 620Mpa
Yield strength 38Ksi, 260Mpa
Elongation in 200mm(min) 17%
Elongation in 50mm(min) 21%
Thickness(max) 205mm

Applications:

  • Tubular heat exchangers
  • Boilers
  • Pressure vessels
  • Steam turbines,
  • large central air conditioners
  • Condensers
  • Evaporators
  • Pulp and Paper Industry

ASTM A516 Gr.70 Gr.70N Carbon Steel Stationary Tubesheet For Heat Exchanger Parts
