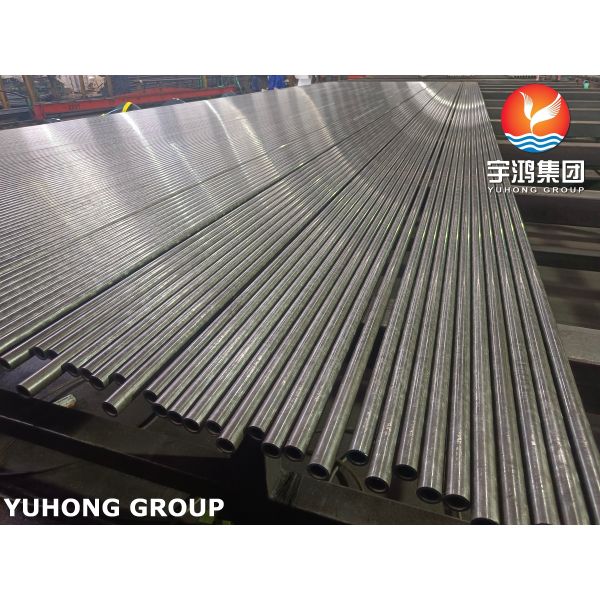

ASME SA213 T5 Alloy Steel Tube Seamless Hot Rolled for Boiler Heat Exchanger Application
ASME SA213 T5 Alloy Steel Tube Seamless Hot Rolled for Boiler Heat Exchanger Application
ASME SA213 T5 Alloy Steel Tube Seamless Hot Rolled for Boiler Heat Exchanger Application
ASME SA213 T5 Alloy Steel Tube Seamless Hot Rolled for Boiler Heat Exchanger Application
ASME SA213 T5 Alloy Steel Tube Seamless Hot Rolled for Boiler Heat Exchanger Application
ASME SA213 T5 Alloy Steel Tube Seamless Hot Rolled for Boiler Heat Exchanger Application
ASME SA213 T5 Alloy Steel Tube Seamless Hot Rolled for Boiler Heat Exchanger Application
ASME SA213 T5 Alloy Steel Tube Seamless Hot Rolled for Boiler Heat Exchanger Application
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA213 T5
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
100KGS
Price :
Negotiable
Payment Terms :
L/C,T/T
Delivery Time :
7DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
ASME SA213
Material :
T5
NDT :
ET/UT
Technique :
Hot Rolled
Surface :
Black Painting
Application :
Boiler/Heat Exchanger/Oil&Gas
Description

ASME SA213 T5 Alloy Steel Tube Seamless Hot Rolled for Boiler and Heat Exchanger Application



ASTM A213 is a standard for seamless ferritic/austenitic alloy steel tubes for boilers, superheaters, and heat exchangers, and T5 is the specific material grade under this standard. T5 belongs to medium chromium molybdenum alloy steel, which has high temperature oxidation resistance and creep resistance, and is suitable for high-pressure and high-temperature environments.


Specification
Outside diameter:3.18-810mm
Wall thickness:0.2-40mm
Max.Length; 50m

Surface:Pickling and annealing,pickling and annealing+polishing+ EP(Electricity polish)

The core advantages of ASME SA213 T5 alloy seamless tubes lie mainly in their excellent high-temperature strength and creep resistance, good oxidation and corrosion resistance, good structural stability and tempering stability, and good thermal conductivity.


ASME SA213 T5 Alloy Steel Tube Chemical Composition

Grade Chemical Components (%)
C Mn P S Si Cr Mo
T5 0.15 0.30-0.60 ≤0.025 ≤0.025 0.5 4.0-6.0 0.45-0.65


ASME SA213 T5 Alloy Steel Tube Heat Treatment Requirements

Grade UNS. Heat Treat Type Austenitizing/ Solutioning Temperature, min or range °F [°C] Subcritical Annealing or Tempering Temperature, Min or range °F [°C]
T5 K41545 full or isothermal anneal normalize and temper … 1250 [675]


ASME SA213 T5 Alloy Steel Tube Mechanical properties​

Grade ASME SA213 T5 Alloy Steel Tube Mechanical properties
Tensile,Strength (Mpa) Yield, Strength (Mpa) Elongation, % Hardness
T5 ≥415 ≥205 ≥30 ≤89HR



ASME SA213 T5 Alloy Steel Seamless Tube Main Application

  • Power plant boilers: superheaters, reheaters, evaporator tubes/water-cooled walls.
  • Industrial boilers: superheater tubes and heat exchanger tubes for industrial boilers of various sizes.
  • Petrochemical plants: furnace tubes for ethylene cracking furnaces, hydrogen conversion furnaces, etc., and heat exchangers and pipes under various high-temperature and high-pressure conditions.



ASME SA213 T5 Alloy Steel Tube Seamless Hot Rolled for Boiler Heat Exchanger Application
