ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Extruded Fin Tube For Heat Exchangers
ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Extruded Fin Tube For Heat Exchangers
ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Extruded Fin Tube For Heat Exchangers
ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Extruded Fin Tube For Heat Exchangers
ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Extruded Fin Tube For Heat Exchangers
ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Extruded Fin Tube For Heat Exchangers
ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Extruded Fin Tube For Heat Exchangers
ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Extruded Fin Tube For Heat Exchangers
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A179, ASME SA179+AL1060
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
500 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According to Clients' Requirement
Delivery Time :
30 - 90 Work Days
Packaging Details :
Ply-Wooden Case /Iron Case
Tube Standard :
ASTM A179, ASME SA179
Fin Material :
Aluminum 1060
Tube material :
Carbon Steel,Stainless Steel,Alloy Steel
Fin material :
Aluminum,Copper,carbon steel
Fin height :
0mm-16mm
Tube length :
18 meters max
Fin pitch :
2-14mm
Application :
Heater Parts,Refrigeration Parts,heat exchanger,Cooler,Fluid Cooling
Description

ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Extruded Fin Tube For Heat Exchangers

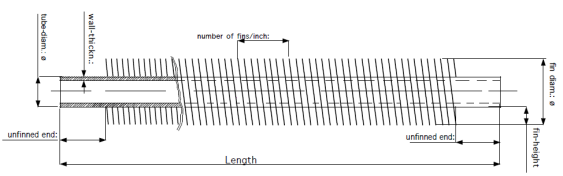

Fin Tubes are a type of heat exchanger tubes. They are widely used in air-cooled type heat exchangers where the exchange of heat takes place between gas flowing on the Fins and the fluid flowing inside the Fin Tubes. The main purpose is to increase the surface area to facilitate more exchange of heat between the medium and the air. High fin tubes are also called extruded tubes. The finning is achieved by extruding the fin from the tube. Our YUHONG GROUP are professional in manufacturing various fin tubes with high qyality and suitable prices. We supply embedded G type fin tubes, extruded fin tubes, HFW fin tubes, studded fin tubes and so on.

Chemical Composition:

Grade C Si Mn P S
A179 0.06-0.18 0.25 max 0.27-0.63 0.035 max 0.035 max

ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Extruded Fin Tube For Heat Exchangers

Characteristics:

  • Anti-corrosion & Anti-wear
  • Low contact resistance
  • Excellent Stability
  • Anti-fouling ability

Mechanical Properties:

Tensile Strength (Mpa), min Yield Strength (Mpa), min Elongation (%), min Hardness (HRB), max
325 180 35 72

  • Applications:
  • Pharmaceutical Equipments
  • Chemical Equipments
  • Sea Water Systems
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Plants
  • Power Generation
  • Gas Processing Plants
  • Chemicals Industries
  • Oil and Gas Systems

ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Extruded Fin Tube For Heat Exchangers
