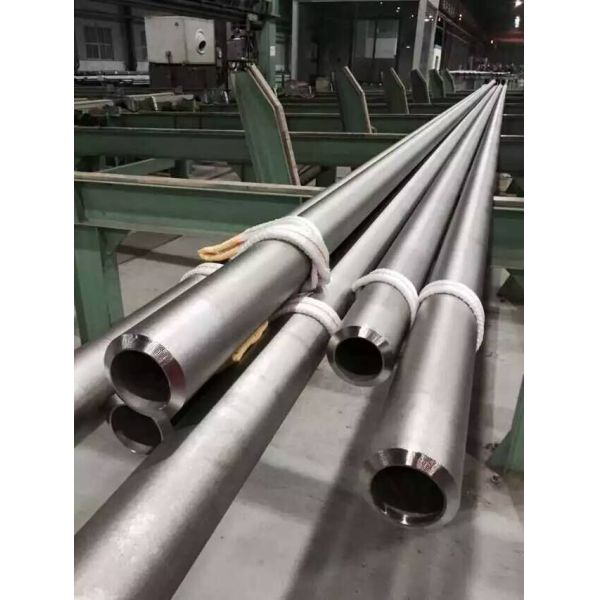

DIN 2.4642 Alloy Seamless Tube, Inconel 690™ ASME SB163 / SB167 / SB829
DIN 2.4642 Alloy Seamless Tube, Inconel 690™ ASME SB163 / SB167 / SB829
DIN 2.4642 Alloy Seamless Tube, Inconel 690™ ASME SB163 / SB167 / SB829
DIN 2.4642 Alloy Seamless Tube, Inconel 690™ ASME SB163 / SB167 / SB829
DIN 2.4642 Alloy Seamless Tube, Inconel 690™ ASME SB163 / SB167 / SB829
DIN 2.4642 Alloy Seamless Tube, Inconel 690™ ASME SB163 / SB167 / SB829
DIN 2.4642 Alloy Seamless Tube, Inconel 690™ ASME SB163 / SB167 / SB829
DIN 2.4642 Alloy Seamless Tube, Inconel 690™ ASME SB163 / SB167 / SB829
Specifications
Brand Name :
YUHONG SPECIAL STEEL
Model Number :
ASME SB163, SB167, SB829
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China, USA, Korea, UE
MOQ :
100KGS
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1500 tons per month
Delivery Time :
10days->
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
ASME SB163, SB167, SB829
Grade :
INCONEL ALLOY 690 ,UNS N06690 ,W. Nr. 2.4642)
Size :
OD:3MM TO 530MM ,WT:0.2MM TO 60MM, L:MAX 50M
PACKING :
Ply-wooden Case or Iron Case
Description

DIN 2.4642 Alloy Seamless Tube Inconel 690™ ASME SB163 / SB167 / SB829

Super alloys have good creep and oxidation resistance. They are also known as high performance alloys, and can be formed in different shapes. Work hardening, precipitation hardening, and solid-solution hardening are performed for strengthening the super alloys. These alloys have the capcity to function at very high temperatures and severe mechanical stress, and also where high surface stability is required.

Inconel 690™ is a nickel-chromium alloy. It has high resistance to hot gases or oxidizing chemicals due to the presence of high chromium content. The following datasheet gives an overview of Inconel 690™.

Chemical Composition

The chemical composition of Inconel 690™ is outlined in the following table.

Element Content (%)
Chromium, Cr 27-31
Iron, Fe 7-11
Silicon, Si 0.5 max
Manganese, Mn 0.5 max
Copper, Cu 0.5 max
Silicon, Si 0.5 max
Carbon, C 0.05 max
Sulfur, S 0.015 max
Nickel, Ni Remainder

Physical Properties

The physical properties of Inconel 690 ™ are given in the following table.

Properties Metric Imperial
Density 8.19 g/cm³ 0.296 lb/in³
Melting point 1343-1377°C 2450-2510°F

Mechanical Properties

The mechanical properties of Inconel 690™ are displayed in the following table.

Properties Metric Imperial
Poisson's ratio 0.29 0.29
Hardness 85 85

Thermal Properties

The following table shows the thermal properties of Inconel 690™.

Properties Metric Imperial
Thermal conductivity 12.1 W/mK 84 BTU in/hr.ft².°F

Other Designations

Other designations that are equivalent to Inconel 690™ include:

  • ASTM B167 / SB163 / SB829
  • DIN 2.4642

Fabrication and Heat Treatment

Machinability

Inconel 690™ can be machined using conventional machining methods which are used for iron-based alloys. Machining operations are performed using commercial coolants. High-speed operations such as grinding, milling or turning, are performed using water-base coolants.

Forming

Inconel 690™ can be formed using all conventional techniques.

Welding

Inconel 690™ is welded using gas-tungsten arc welding, shielded metal-arc welding, gas metal-arc welding, and submerged-arc welding methods.

Heat Treatment

Inconel 690™ does not react to heat treatment.

Forging

Inconel 690™ is forged at 1038 to 1233°C (1900 to 2250°F).

Hot Working

Inconel 690™ is hot worked at 872 to 1205°C (1600 to 2200°F).

Cold Working

Inconel 690™ is cold worked using standard tooling.

Annealing

Inconel 690™ is annealed at 1038°C (1900°F) followed by cooling.

Aging

Inconel 690™ does not react to aging thermal treatment.

Hardening

Inconel 690™ is hardened by cold working.

Applications

Inconel 690™ is used in the following applications:

  • Duct work
  • High temperature burners
  • Furnaces
  • Petrochemical heaters

DIN 2.4642 Alloy Seamless Tube, Inconel 690™ ASME SB163 / SB167 / SB829
