2011 2014 2024 2A12 2A16 2A06 Aluminium Strip 3mm Aluminium Coil Strip
2011 2014 2024 2A12 2A16 2A06 Aluminium Strip 3mm Aluminium Coil Strip
2011 2014 2024 2A12 2A16 2A06 Aluminium Strip 3mm Aluminium Coil Strip
2011 2014 2024 2A12 2A16 2A06 Aluminium Strip 3mm Aluminium Coil Strip
2011 2014 2024 2A12 2A16 2A06 Aluminium Strip 3mm Aluminium Coil Strip
2011 2014 2024 2A12 2A16 2A06 Aluminium Strip 3mm Aluminium Coil Strip
Specifications
Brand Name :
HTFD
Model Number :
1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075,
Certification :
CE ISO CNAS CQC
Place of Origin :
China
MOQ :
1Ton
Price :
USD 1800-2800
Payment Terms :
T/T
Supply Ability :
8000 Tons/Month
Delivery Time :
5-15 working days
Packaging Details :
Standard Export Package
Material :
Aluminum
Shape :
coil
Terms of Price :
FOB EXW CIF
Production Capacity :
800 Tons/Month
Description
Product Name
Aluminum strip
Category
Production method:Cold/Hot rolled

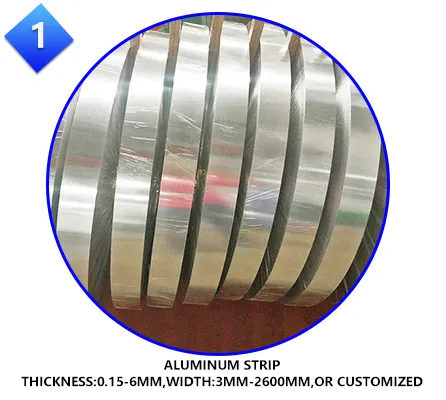

Classified by thickness:0.15mm-6mm
SIZE
THICKNESS
0.15-2.0mm,2.0-6.0mm
WIDTH
3mm-2600mm
LENGTH
Within 16000mm or customized
Material
1000 series :1050,1060;3000 series:3003,3A21 Or Customized
Surface Finish
Brushed,Oxidation,PS,MIRROR,Embossed,etched,color coated,etc
Standard
GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Hardness
Commonly used states are O state and H state
Application
There are many uses of aluminum tape, such as: aluminum-plastic composite pipes, cables, optical cables, transformers, heaters, shutters, etc.
Package
Standard export sea-worthy packing or customized
2011 2014 2024 2A12 2A16 2A06 Aluminium Strip 3mm Aluminium Coil Strip


Aluminum strips
Aluminum strips are aluminum coils that are rolled by cold rolling mills into thin-plate aluminum coils of different thicknesses and widths, and then longitudinally cut into aluminum strips of different widths by slitting machine according to the application.
1.aluminum strips are mainly:
1000 series :1050,1060,1070,1100;
3000series:3003,3004;
5000 series:5005,5052;
8000 series:8011
Or Customized

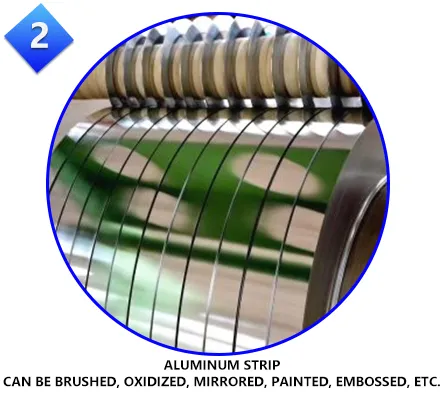

2.Surface technology :
Brushed,Oxidation,PS,MIRROR,Embossed,etched,color coated,etc
3.Aluminum strips of various specifications can be customized according to customer requirements
Aluminum Strips Features
1. Complete product specifications, various materials
2. Commonly used states are O state and H state
3. According to the annealing state of the aluminum strip, the aluminum strip can be divided into fully soft (O state), semi-hard (H24) and fully hard (H18)
4. The most commonly used is the O state, which is easier to stretch and bend
5.The aluminum strip can be divided into the required length and width according to the needs of customers
6. Can be customized
7.Good price, high cost performance
2011 2014 2024 2A12 2A16 2A06 Aluminium Strip 3mm Aluminium Coil Strip

Product Parameters

Width

20-3000mm or Customized

Thickness

0.1-120mm or Customized

Length

100-12000mm or Customized

Certificate

ISO, SGS, BV

Standard

JIS, AISI, ASTM, GB, DIN, EN, etc.

Brand

1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc.

3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc.

5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc.

6000 Series: 6061, 6063, 6082, 6A02, etc.

7000 Series: 7050, 7475, 7075, etc.

8000 Series: 8A06, 8011, 8090, etc.

Surface

Coating, Embossing, Drawing, Polishing, Anodizing, etc.

OEM Service

Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc.

Delivery Time

Received 30%, After deposit 7-15 working day

Application

Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc.

Sample

Free Offers Sample

Packaging

Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement

Chemical Composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others:

Each

Others:

Total

Al: Min.

1050

0.25

0.40

0.05

0.05

0.05

-

0.05

0.03

0.03

-

99.50

1060

0.25

0.35

0.05

0.03

0.03

-

0.05

0.03

0.03

-

99.60

1070

0.20

0.25

0.04

0.03

0.03

-

0.04

0.03

0.05

-

99.70

1100

0.95 Si Fee

0.05~0.20

0.05

-

-

0.1

-

0.05

0.15

99.0

2014

0.5~1.2

0.7

3.9~5.0

0.4~1.2

0.2~0.8

0.10

0.25

0.15

0.05

0.15

 Margin

2017

0.2~0.8

0.7

3.5~4.5

0.4~1.0

0.4~0.8

0.10

0.25

0.15

0.05

0.15

91.5 - 95.5

2024

0.50

0.50

3.8~4.9

0.3~0.9

1.2~1.8

0.10

0.25

0.15

0.05

0.15

 Margin

3003

0.60

0.70

0.05~0.20

1.0~1.5

-

-

0.10

-

0.05

0.15

 Margin

3A21

0.60

0.70

0.20

1.0-1.6

0.05

-

0.15

0.1-0.2

-

-

 Margin

3004

0.30

0.70

0.25

1.0~1.5

0.8~1.3

-

0.25

-

0.05

0.15

 Margin

3005

0.60

0.70

0.30

1.0~1.5

0.2~0.6

0.10

0.25

0.10

0.05

0.15

 Margin

3105

0.60

0.70

0.30

0.3~0.8

0.2~0.8

0.20

0.40

0.10

0.05

0.15

 Margin

5005

0.30

0.70

0.20

0.20

0.5~1.1

0.1

0.25

-

0.05

0.15

 Margin

5052

0.25

0.40

0.10

0.10

2.2~2.8

0.15~0.35

0.10

-

0.05

0.15

 Margin

5754

0.40

0.40

0.10

0.50

2.6~3.6

0.30

0.20

0.15

0.05

0.15

 Margin

5A05

0.50

0.50

0.10

0.3-0.6

4.8-5.5

-

0.20

-

0.05

0.05

 Margin

5083

0.40

0.40

0.10

0.4~1.0

4.0~4.9

0.05~0.25

0.25

0.15

0.05

0.15

 Margin

6061

0.40~0.8

0.70

0.15~0.4

0.15

0.8~1.2

0.04~0.35

0.25

0.15

0.05

0.15

 Margin

6082

0.70~1.3

0.50

0.10

0.4~1.0

0.6~1.2

0.25

0.20

0.10

0.05

0.15

 Margin

7075

0.40

0.50

1.2~2.0

0.30

2.1~2.9

0.18~0.28

5.1~6.1

0.20

0.05

0.15

 Margin

Mechanical Properties

Tensile Strength

(MPa)

Test Stress

0.2% (MPa)

Hardness

HB

Elongation Rate

(%)

105-145

≥85

≥34

≥12

Physical Performance

Density

Melting Point

Modulus of Elasticity

Thermal Conductivity

Thermal Expansion

Resistivity

2.71 Kg/m³

650°C

71 GPa

222 W/m.K

24 × 10-6/K

0.282 × 10-6Ω.m

Annealing State

Brand

Annealing State

1xxx: 1050, 1050A, 1060, 1100

O, H12, H14, H16, H18, H22, H24, H26, H28, H111

3xxx: 3003, 3004, 3005, 3105

5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454

O, H22, H24, H26, H28, H32, H34, H36, H38, H111

6xxx: 6061, 6082

T4, T6, T451, T651

2xxx: 2024

T3, T351, T4

7xxx: 7075

T6, T651

Scope of Application

Aluminum Uses And Application Area

Food Packaging

Beverage can ends, cans, bottle caps, etc.

Building

Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.

Transportation

Auto parts, passenger car bodies, aviation ships and air cargo containers.

Electronic Equipment

Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.

Consumer Goods

Umbrellas, cooking utensils, sports equipment, etc

Other

Military, color coated aluminum plate, etc.

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according toquantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.lf you have another question, pls feel free to contact us.
