Steel Oil Pipe H40 J55 K55 N80 L80 C90 T95 P110 Q125 V150 Carbon Steel Pipe
Steel Oil Pipe H40 J55 K55 N80 L80 C90 T95 P110 Q125 V150 Carbon Steel Pipe
Steel Oil Pipe H40 J55 K55 N80 L80 C90 T95 P110 Q125 V150 Carbon Steel Pipe
Steel Oil Pipe H40 J55 K55 N80 L80 C90 T95 P110 Q125 V150 Carbon Steel Pipe
Steel Oil Pipe H40 J55 K55 N80 L80 C90 T95 P110 Q125 V150 Carbon Steel Pipe
Steel Oil Pipe H40 J55 K55 N80 L80 C90 T95 P110 Q125 V150 Carbon Steel Pipe
Specifications
Brand Name :
HTFD
Model Number :
H40、J55、K55 N80、L80 C90、T95、P110 Q125、V150
Certification :
CE ISO CNAS CQC
Place of Origin :
China
MOQ :
1Ton
Price :
USD 500-850
Payment Terms :
T/T
Supply Ability :
10000tons Per Month
Delivery Time :
5-15 working days
Packaging Details :
Standard Export Package
Length :
3-12m
Terms of Price :
FOB EXW CIF
Production Capacity :
2000 PCS/Month
Description

H40,J55,K55 N80,L80 C90,T95,P110 Q125,V150 Carbon steel oil pipe

Casing pipe is the major structural component of a well. The API 5CT Casing pipe is a large-diameter steel pipe that serves as the structural retainer for the walls of oil and gas wells, and typically held into place with cement.

API 5CT casing is inserted into a well bore and cemented in place to protect both subsurface formations and the wellbore from collapsing and to allow drilling fluid to circulate and extraction to take place.

The cost of casing is a major part of the overall well cost, so selection of casing size, grade, connectors, and setting depth is a primary engineering and economic consideration. KPE supply API 5CT standard casing pipe with assured quality and competive price. Rely on good relationship with domestic big mills/factories. Your honored customers' need is our goal to work for with our best efforts!


1.Specification range:OD: 42.16 MM - 510.0 MM WT: 3.56MM-16MM
2. Materials: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, Q125 etc
3. Executive standards: API 5CT, GB, ISO11960, GOST
4. Thread connection: NU, EU,IJ
5. Length: R1, R2, R3
6. Testing: NDT etc related rules of API 5CT and 5B
7.Type:seamless pipe

Features
  1. Production complies with the provisions under the Standard API 5DP AND SPEC 7-1.
  2. Internal coating TK34, PM200, PM350 are available, or according to client requirement request
  3. hardbanding "ANKE" 100XT 150XT 300XT 350XT, DURABAND NC, OTW12, TCS series are available.
  4. magnetic partical inspection, hardness inspection, Automatic ultrasonic inspection, welding report will be provided
Product Parameters
Size
Weight
(lb/ft)
Grade
Wall thickness
Upset types
Inch
mm
Inch
mm
2 3/8
60.3
6.65
E.X.G.S
0.28
7.11
EU
2 7/8
73
10.4
E.X.G.S
0.362
9.19
IU,EU
3 1/2
88.9
9.5
E
0.254
6.45
IU,EU
3 1/2
88.9
13.3
E.X.G.S
0.368
9.35
IU,EU
3 1/2
88.9
15.5
E
0.449
11.4
IU,EU
3 1/2
88.9
15.5
X.G.S
0.449
11.4
EU,IEU
4
101.6
14
E.X.G.S
0.33
8.38
IU,EU
4 1/2
114.3
13.75
E
0.271
6.88
IU,EU
4 1/2
114.3
16
E.X.G.S
0.337
8.56
EU,IEU
4 1/2
114.3
20
E.X.G.S
0.43
10.92
EU,IEU
5
127
16.25
X.G.S
0.296
7.52
EU
5
127
19.5
E
0.362
9.19
IEU
5
127
19.5
X.G.S
0.362
9.19
EU,IEU
5
127
25.6
E
0.5
12.7
IEU
5
127
25.6
X,G,S
0.5
12.7
EU,IEU

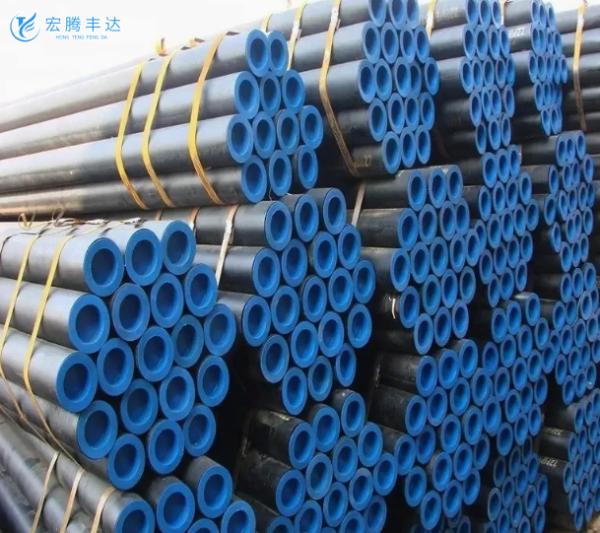

Detailed Photos
Steel Oil Pipe H40 J55 K55 N80 L80 C90 T95 P110 Q125 V150 Carbon Steel Pipe
Steel Oil Pipe H40 J55 K55 N80 L80 C90 T95 P110 Q125 V150 Carbon Steel Pipe


Steel Oil Pipe H40 J55 K55 N80 L80 C90 T95 P110 Q125 V150 Carbon Steel Pipe

Steel Oil Pipe H40 J55 K55 N80 L80 C90 T95 P110 Q125 V150 Carbon Steel Pipe

Steel Oil Pipe H40 J55 K55 N80 L80 C90 T95 P110 Q125 V150 Carbon Steel Pipe
Steel Oil Pipe H40 J55 K55 N80 L80 C90 T95 P110 Q125 V150 Carbon Steel Pipe
