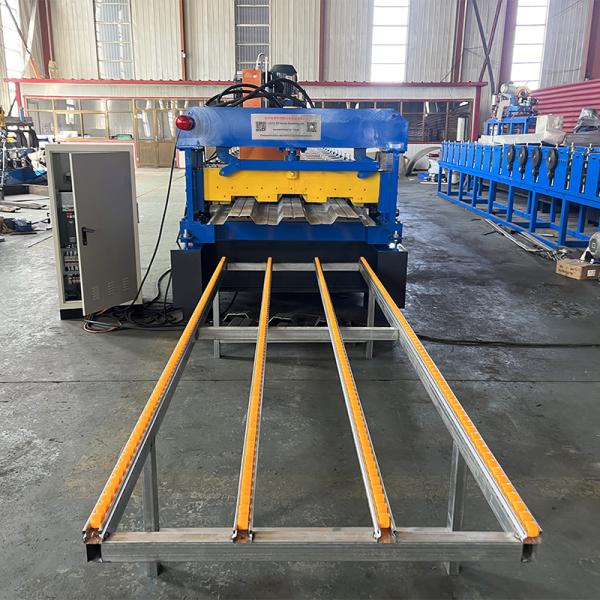

Galvanized Steel Double Decking Sheet Floor Roll Forming Machine
Galvanized Steel Double Decking Sheet Floor Roll Forming Machine
Galvanized Steel Double Decking Sheet Floor Roll Forming Machine
Galvanized Steel Double Decking Sheet Floor Roll Forming Machine
Galvanized Steel Double Decking Sheet Floor Roll Forming Machine
Galvanized Steel Double Decking Sheet Floor Roll Forming Machine
Galvanized Steel Double Decking Sheet Floor Roll Forming Machine
Galvanized Steel Double Decking Sheet Floor Roll Forming Machine
Specifications
Brand Name :
BEST
Model Number :
YX1025
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD6000--10000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
Packaging Details :
a.need one 40ft container b.Fit for ocean shipping c.Main body of roll forming machine fixed to container by 8mm diameter steel wire; Rollers and shaft is covered with anti-rust oil; Spare parts in carton box
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
380V 50Hz 3phases
Condition :
New
Weight :
about 15T
Use :
roof and wall or any
Description

Galvanized Steel Double Decking Sheet Floor Roll Forming Machine

Working flow of floor deck roll forming machine

Floor deck roll forming machine include one set 5 ton manual decoiler, feeding table, roll forming machine , hydraulic cutter and receiving table.Machine is controled by Delta PLC control system, we also have Mitsibishi PLC for option.

Galvanized Steel Double Decking Sheet Floor Roll Forming Machine

Floor deck roll forming machineParameters

Component:

Decoiler ----------------------------1set

Forming Machine ----------------1set

Cutting device---------------------1set

control box-------------------------1set

Hydraulic oil pump---------------1set

NO Type Specification
1 Raw material Type GI
Feeding width As customer need
Thickness 0.8-2 mm
2 Decoiler Operation Manual
Weight apacity 5 Tons
3 Main body Roller station 24 row
Diameter of shaft 75 mm
Shaft material 45# with 0.05mm chrome
Roller material Bearign steel
Type Chinese type
Frame 400mm H-beam
Frame thickness 20 mm
Material Cr 12
Operation Hydraulic automatic
Working speed 8-15 m/min
4 Power Driving way Chain 2 inch
Main motor 11 KW
Voltage 380V/50HZ, 3 phase
5 Control box Electric box PLC control system, inventer
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan
Language Chinese and English

Galvanized Steel Double Decking Sheet Floor Roll Forming Machine
