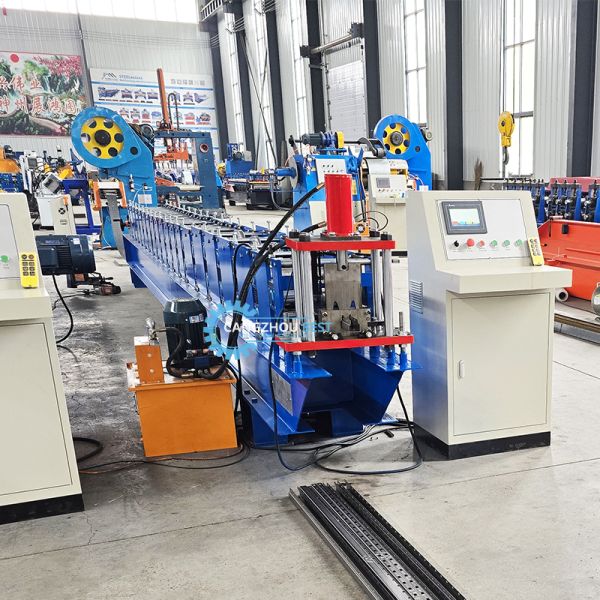

Galvanized Steel PLC Control Shelf Upright Rack Roll Forming Machine

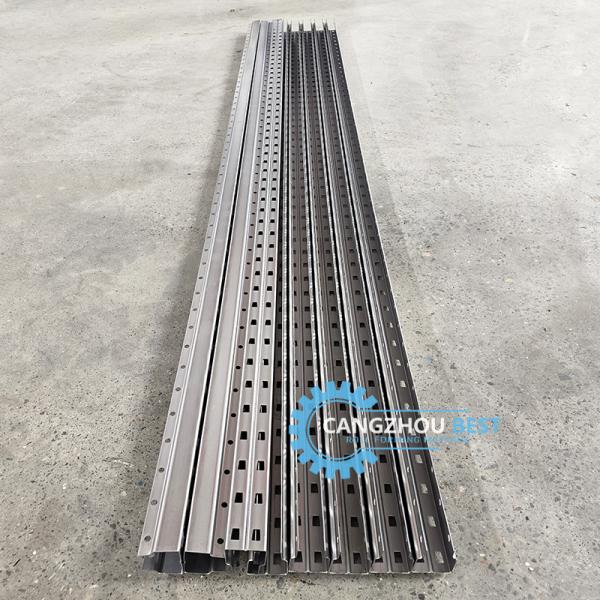

This is automatic storage rack roll forming line, also called shelf frame roll forming machine, the product widely used for super market. This whole set steel goods shelf roll forming machine production line include two parts, one is main shelf roll forming line, and the other part is ancillary shelf roll forming line, the two shelf need to be interworking.


Machine Component

Hydraulic De-coiler-----------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
Punching machine-------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Hydraulic punching device---------------------1set
Production support table-----------------------1set

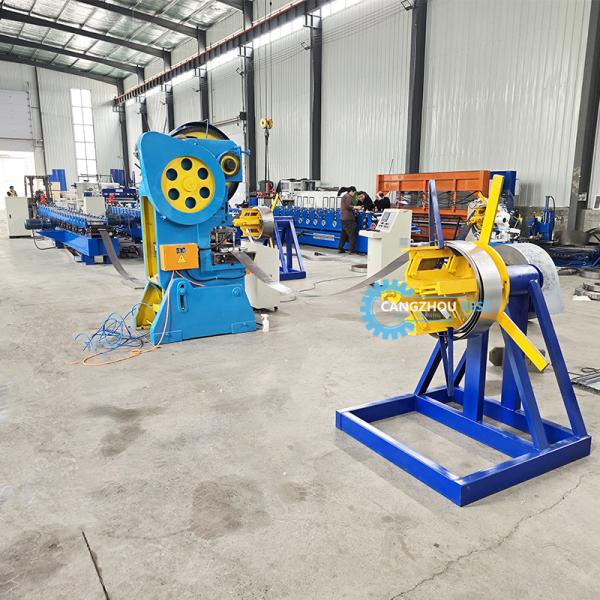

Decoiler

Inner Diameter: Φ500 – Φ550 mm
Out Diameter: 1000 mm
Max. Loading Capacity: 5000 kg
Type: hydraulic
Power:7.5kw
Control system: PLC

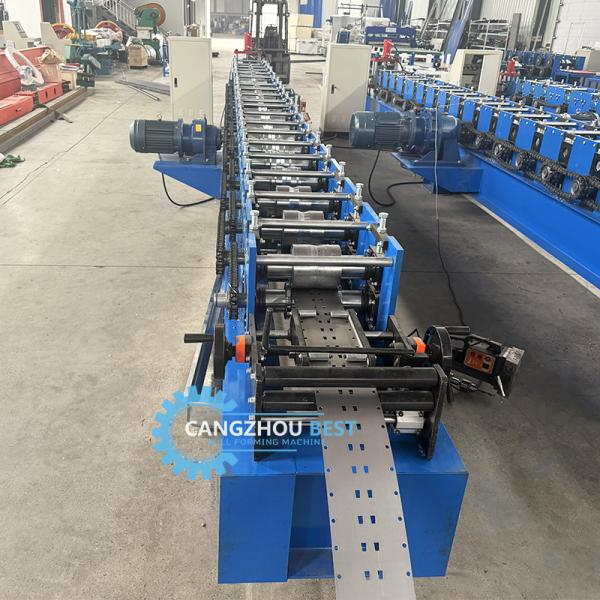

roll forming machine

Rolled Material: Cold Rolled Steel Sheet
Material Thickness: 1-2mm
Rollers: 22Groups
Material for Rollers: GCr15 steel after treatment

Hardness for Heat Treatment: HRC55 – 60
Frame panel thickness: 20mm
Bottom frame: 350 H-section steel
Motor Power:11 kw x2
Driven type: double sides double row 1.5＂Chain


PLC

Type: PLC Frequency Control System with double touch screen
PLC Brand: FATEK
Encoder Brand: Omron
Length Error: ±2mm
Language: Chinese and English
Voltage:380v 50hz 3phases(as customer requirement)

Hydraulic pump
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand
