Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine
Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine
Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine
Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine
Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine
Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine
Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine
Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine
Specifications
Brand Name :
CHBEST
Model Number :
XY24x36
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Supply Ability :
20 sets/month
Delivery Time :
30-40 days
Packaging Details :
plastic film for naked machine
Product name :
Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine
Color :
Blue or according to your requirement
Control system :
PLC
Cutting type :
Non-stop cutting
Warranty :
2 years
Lifetime :
10years
Description
Metal Ceiling T Profile Main T / T Bar Steel Making Roll Forming Machine

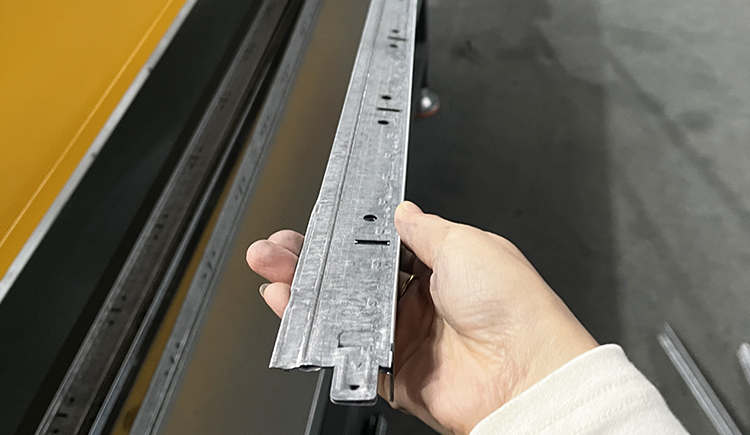

The T-bar is a technical profile for supporting suspended ceiling panels (T-grid suspended ceiling), typically sized 60x60cm and 60x120cm. This highly technical system consists of three different profiles with lengths of 600mm, 1200mm (cross tees) and 3600mm (main runner), although many other sizes exist on the market including Imperial system variations.
Machine Components
No. Name Unit Qty
1 Manual decoiler set 1
2 Main forming machine set 1
3 PLC control system set 1
4 Hydraulic pump station set 1
5 Post cut set 1
6 Electric motor set 1
7 Output table set 1
Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine
Technical Specifications
1. Decoiler
  • Max. Width: 500mm
  • Inner Diameter: Φ450 - Φ550 mm
  • Out Diameter: 1500 mm
  • Max. Loading Capacity: 3000 kgs

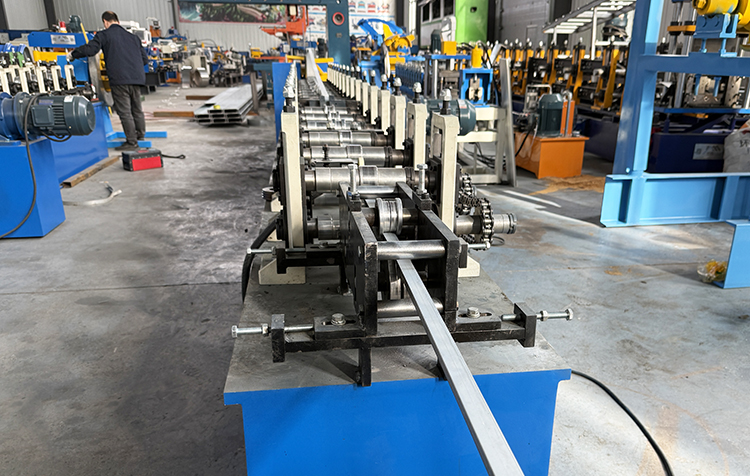

2. Roll Forming Machine
  • Rolled Material: Cold Rolled Steel Sheet
  • Material Thickness: 0.2-0.4mm
  • Rollers: 16 Groups
  • Material for Rollers: Cr12 steel
  • Material for shaft: 45# steel (quenching and Harding and chroming)
  • Hardness for Heat Treatment: HRC55 - 60
  • Diameter of shaft: 40mm
  • Frame panel thickness: 20mm
  • Bottom frame: 36# H-section steel
  • Motor Power: 5.5kw
  • Driven type: Chain

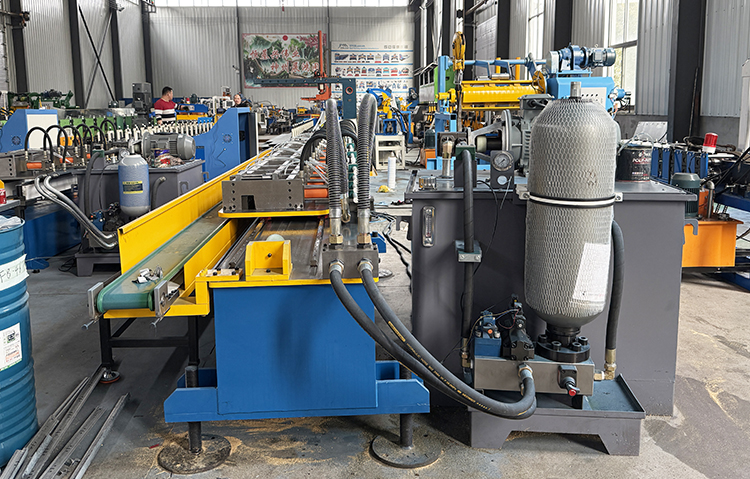

3. Cut-Off and Punching Device
  • Material for Cut-Off Modular: Cr12 steel
  • Hardness for Heat Treatment: HRC55 - 60
  • Cut-Off Type: Hydraulic, Automatic Cut-Off
  • Material for punching die: Cr12 steel
  • Power: 5.5kw
4. PLC Control Box
  • Type: PLC Frequency Control System with touch screen
  • Length Error: ±1mm
  • Language: English and Chinese
  • Voltage: 380v/50HZ, 3Phase (customizable to customer requirements)
Metal Ceiling T Profile Main T /T Bar Steel Making Roll Forming Machine
Cangzhou BEST Machinery Co., Ltd. is a professional manufacturer and exporter specializing in the design, development and production of all kinds of roll forming machines. Located in Cangzhou, China, with convenient transportation access, all of our products comply with international quality standards and are greatly appreciated in various markets worldwide.
Working Conditions
Working size 30m x 2m x 4m
Power supply 8.5kw
Frequency 50-60HZ
Wires/cables 4-6mm² (length according to workshop)
Labor cost 2 workers
Tools Spanners and screwdriver
Lift device 3-5t forklift or crane
Installation and Training
  • If buyers visit our factory, we provide hands-on training for installation and operation, including worker/technician training
  • For remote installation, we provide comprehensive user manuals and instructional videos
  • On-site technician service available with arrangement of round trip tickets, accommodation, meals, and daily salary of USD100 plus visa costs
