High Speed Non-Stop Cutting Steel Profile 20x20-40x40mm Laser Welding Pipe Making Roll Forming Machine
High Speed Non-Stop Cutting Steel Profile 20x20-40x40mm Laser Welding Pipe Making Roll Forming Machine
High Speed Non-Stop Cutting Steel Profile 20x20-40x40mm Laser Welding Pipe Making Roll Forming Machine
High Speed Non-Stop Cutting Steel Profile 20x20-40x40mm Laser Welding Pipe Making Roll Forming Machine
High Speed Non-Stop Cutting Steel Profile 20x20-40x40mm Laser Welding Pipe Making Roll Forming Machine
High Speed Non-Stop Cutting Steel Profile 20x20-40x40mm Laser Welding Pipe Making Roll Forming Machine
High Speed Non-Stop Cutting Steel Profile 20x20-40x40mm Laser Welding Pipe Making Roll Forming Machine
High Speed Non-Stop Cutting Steel Profile 20x20-40x40mm Laser Welding Pipe Making Roll Forming Machine
Specifications
Brand Name :
BEST
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD$18000---80000
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
Name :
Laser Welding Pipe Making Roll Forming Machine
Condition :
New
Dimension(l*w*h) :
9600mm*1300mm*1450mm
Voltage :
380V 50Hz 3phases
Raw material :
Galvanized Sheet
Description
Laser Welding Pipe Making Roll Forming Machine
High Speed Non-Stop Cutting Steel Profile 20x20-40x40mm Laser Welding Pipe Making Roll Forming MachineLaser Welding Pipe Making Roll Forming Machine Machine Components
Name No. Unit
Decoiler 1 set
Pre slide cutter 1 set
Roll forming machine 1 set
Laser welding machine 1 set
Control box 1 set

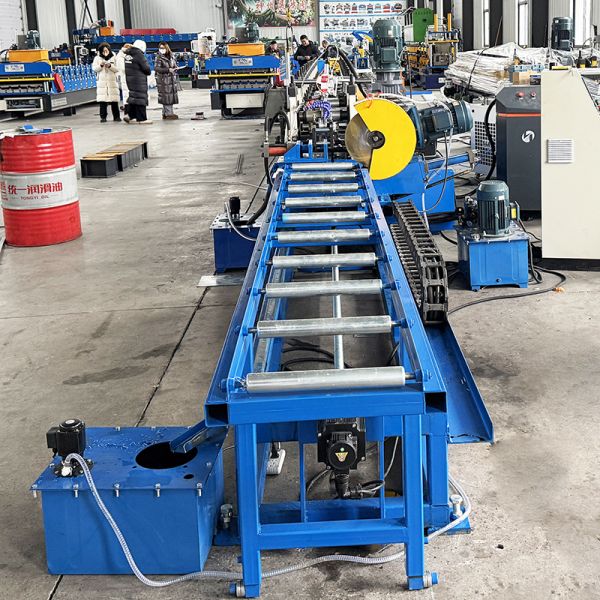

Cutter device 1 set
Output table 1 set
Cooling system 1 set
Laser Welding Pipe Making Roll Forming Machine Technical Specifications
No. Specification
1 Suitable Raw Material: Color or galvanised steel plate
2 Width of Raw Material: according to pipe size
3 Thickness of Raw Material: 1-3mm
4 Main Machine Dimensions: 12*0.8*1 meters
5 Motor Power: 7.5KW + 2.2KW
6 Rolling Material: 45# steel (plated with chrome on surface)
7 Rollers Station of Rollformer: 16 sets
8 Production Line Speed: 15-20m/min
9 Diameter of the rollers: Φ70 mm
10 Voltage: 380V 50Hz 3phases
11 Material of the cutting plate: Cr12 mould steel
12 Hydraulic oil: 40#
13 Processing precision: Within 1mm
14 Control system: Mitsubishi PLC with touching screen
Laser Welding Pipe Making Roll Forming Machine Main Technical Parameters
DECOILER
  • Max. Width: 600mm
  • Inner Diameter: Φ450 - Φ550 mm
  • Out Diameter: 1500 mm
  • Max. Loading Capacity: 3000 kgs
  • Control system: manual

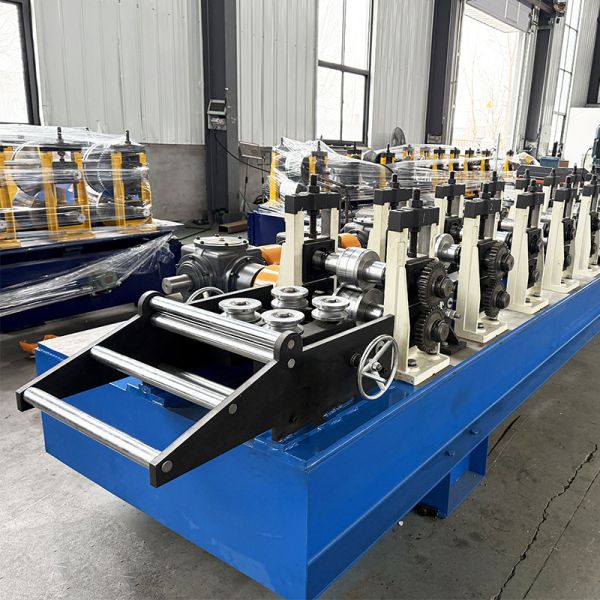

Laser Welding Pipe Making Roll Forming Machine ROLL FORMING MACHINE
  • Material Thickness: 0.7-2.0mm GI
  • NO. of roller Stations: 16 stations
  • Material for Rollers: GCR15 steel polished and coated with chrome HRC58-62°
  • Material for shaft: high grade 45# steel polished (CNC lathe)
  • Motor Power: 11 KW (shanghai brand)
  • Diameter of shaft: 80mm (Solid shaft)
  • Bottom frame: 350*175*8mm H steel
  • Frame panel: Thickness 20mm
  • Driven type: 1.2 inch Chain
  • Speed: about 4-6 m/min
  • Cooling system
  • Lubricate systemHigh Speed Non-Stop Cutting Steel Profile 20x20-40x40mm Laser Welding Pipe Making Roll Forming Machine
Laser Welding Pipe Making Roll Forming Machine Laser Welding Machine Specifications
No Name Description
1 Machine cabinet High strength sheet metal structure
2 Electronic control system ZYJC-2022A
3 Fiber optic laser 3kw
4 Controller ZYJC-PLC2022
5 Welding head 3000W Precision Focus Customization
6 Laser chiller ZYJC-3000W
7 Peripheral environment Ventilation, no impact within 5 meters
8 Voltage 380v 50hz 3p
9 Ground Type Direct centralized
For more information, please contact us.
