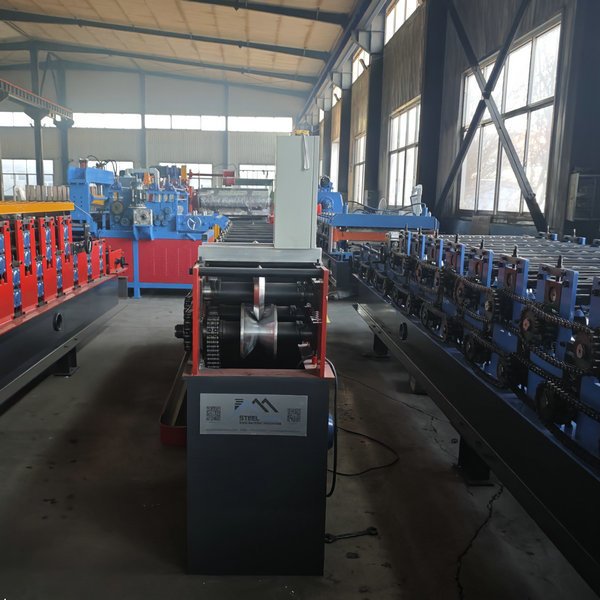

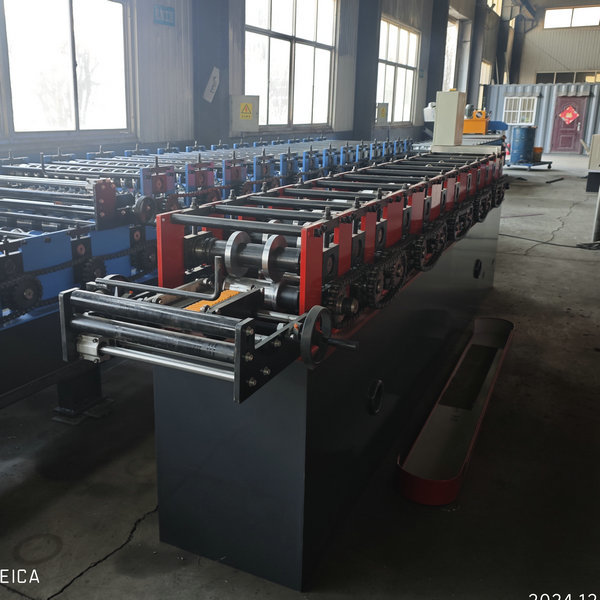

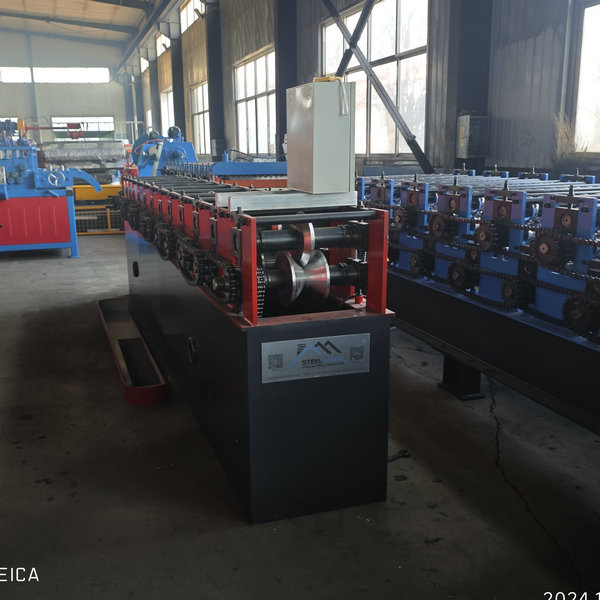

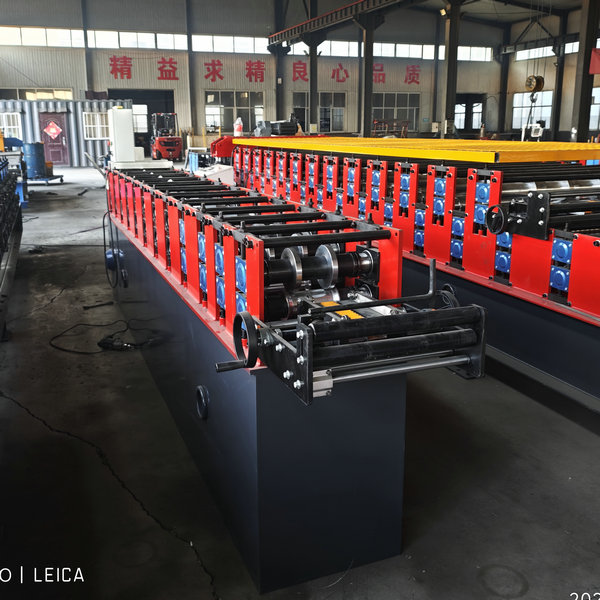

Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine
Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine
Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine
Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine
Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine
Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine
Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine
Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine
Specifications
Shaft :
High Quality 45# Steel With Heat Treatment.
Name :
Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine
Material Thickness :
0.6-1.6mm (235-345Mpa)
Forming Speed :
About 20m/min
Brand Name :
BEST
Model Number :
YX30
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD8000---15000
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
Controlling System :
PLC
Description
Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine
Advanced semi-automatic roll forming machine designed for producing angle keel profiles and corner bead steel profiles with precision and efficiency.
Semi Auto Angle Keel Profile/Corner Bead Steel Profile Roll Forming Machine
Technical Specifications
No. Item Specification Optional
1 Suitable material Type: Galvanized Coil, PPGI, Carbon steel Coil
Thickness: 0.25-1.2mm
Yield strength: 250-550MPa
Tensile stress: G350MPa-G550MPa
2 Nominal forming speed 10-40 m/min Customizable
3 Forming station 8-14
4 Decoiler Manual decoiler Hydraulic or double head decoiler
5 Main machine motor Sino-German Brand
6 PLC brand
7 Inverter brand Yaskawa
8 Driving system Chain drive Gearbox drive
9 Rollers' material Steel #45 GCr15
10 Station structure Wall panel station Forged Iron station or torri stand structure
11 Punching system No Hydraulic punching station or Punching press
12 Cutting system Post-cutting Pre-cutting
13 Power supply requirement 380V 60Hz Customizable
14 Machine color Industrial blue Customizable
Main Components
No. Item Quantity
1 Uncoiler 1 Set
2 Guide Device 1 Set
3 Roll Forming Machine 1 Set
4 Hydraulic Station 1 Set
5 Ran-out Table 2 Sets
6 PLC System 1 Set
Machine Components and Specifications
3 Ton Electric Uncoiler
  • Max weight: 2 TON
  • I.D of Coil: 460-560mm
  • Steel Plate and C beam welded construction
  • Function: Holds and uncoils coils manually with adjustable mandrel for coil tensioning
Feeding and Guiding Device
  • Width Range: 200-300mm
  • Feeding Type: Manual feeding
  • Guiding Type: Manual adjustment
  • Function: Prevents material deviation during operation
Metal Stud and Track Roll Forming Machine
  • Machine Structure: C beam welded main base with internal driven motor
  • Forming Speed: 12-15 m/min
  • Machine Voltage and Frequency: 415V, 50Hz, 3 Phase
  • Material of Rollers: GCR15, CNC processed, HRC58-62, chromed 0.05mm thickness
  • Forming Steps: 18
  • Material of Shaft: ASTM1045, lathe processed and polished
  • Diameter of shaft: 60mm
  • Material of Spacers: ASTM1045, 8mm wall thickness, chromed and hardened
  • Driven Motor: Chinese Guomao Brand, 5.5KW
  • Transmission: Gear-driven system
  • Machine Side Wall Panel: 18mm thickness
