Specifications
Brand Name :
CHBEST
Model Number :
XY45
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Supply Ability :
20 sets/month
Delivery Time :
30-40 days
Packaging Details :
plastic film for naked machine
Product name :
Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine
Punching type :
hydraulic
Control system :
PLC
Cutting type :
flying saw
Warranty :
2 years
Lifetime :
10years
Description
Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine
This advanced cold roll forming machine is designed for producing galvanized steel U stud profiles in multiple sizes. Featuring PLC control and hydraulic cutting systems, it delivers precision, efficiency, and reliability for industrial manufacturing applications.
Machine Components
Component Quantity
Roll forming machine 1 set
Hydraulic cutter 1 set
Electrical control system 1 set
Hydraulic system 1 set
Normal run out table 3 PC 1m*1m
Manual de-coiler 1 set Max. loading 5 T

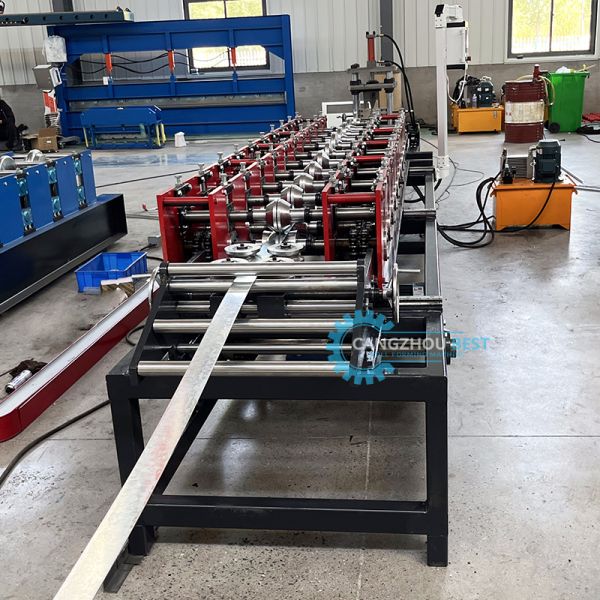

Roll Forming Machine Specifications
Parameter Specification
Product Name Stud and Track Machine
Machine Size 5000mm × 1200mm × 1200mm
Machine Weight About 4 T
Frame Materials 350H steel
Forming Shaft Diameter 60mm
Forming Shaft Material 45# quenched and tempered material
Forming Roller 45# Forging Hard Chrome Plating
Cutting System Hydraulic Cutting
Main Engine Power 3KW with cycloidal reducer
Forming Rows 12 rows
Forming Speed 8-12m/min
Pressing Thickness 1mm
Effective Width 50mm
Pressing Width 300mm
Electric Control System Schneider
Pump Station Motor 3 KW
Transducer Delta
Coder Wuxi "rip" or "Xin Ya"
Switch "CHINT" or "delixi"

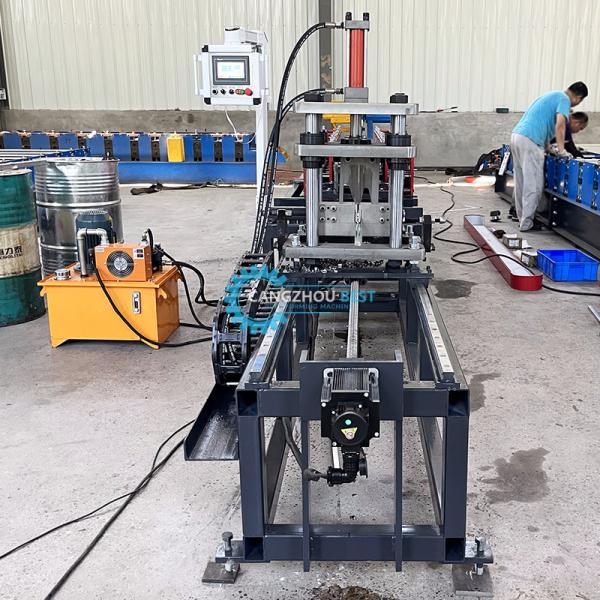

Hydraulic Cutting System
  • Adopts post cutting with stop-to-cut operation
  • Cutting blade material is Cr12 with quenched treatment
  • Welded frame construction for superior rigidity
  • Heat-treated cutting frame prevents product deformation
  • Cutting length tolerance: ±2mm
  • Powered by hydraulic station
  • Automatic length measurement via encoder with PLC-controlled cutting
Hydraulic Station
  • Provides power for hydraulic cutter
  • All hydraulic accessories use Chinese famous brand products
  • Hydraulic motor power: 3KW
PLC Control System
  • Delta PLC controls all working actions
  • Automatic measurement of production quantity and piece length
  • Delta converter speed adjustment technology for automated production
  • Text screen for input and management of working data
  • User-friendly interface for setting batches, length, quantity, etc.
  • Encoder counting with length measurement functionality
  • Suitable power voltage: 380V/50HZ/3Phase (customizable to buyer requirements)
Product Rack (Un-powered)
  • Collects finished products from cutting device
  • Two pieces, each 1m length, total 3 meters
  • Facilitates convenient stacking by workers
