Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching
Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching
Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching
Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching
Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching
Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching
Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching
Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching
Specifications
Brand Name :
CHBEST
Model Number :
CHBEST-30
Certification :
CE/BV/SGS
Place of Origin :
Hebei,China
MOQ :
1set
Supply Ability :
15sets/month
Delivery Time :
35days
Packaging Details :
standard
Name :
Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching
Power :
7.5kw
Dimension :
7700*1550*1510mm
Color :
As your requires
Bottom Frame :
360H steel
Warranty :
2 year
Description
Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching
Professional galvanized steel hat channel purlin roll forming system integrated with hydraulic punching capabilities for efficient manufacturing operations.
Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching
Company Profile
Cangzhou Best Machinery Manufacturing Co., LTD specializes in manufacturing high-end cold bending forming equipment. Our team includes professional engineers with over 20 years of experience in cold bending mechanical equipment design, providing specialized design and manufacturing solutions along with comprehensive installation, guidance, production, and commissioning services.
Working Flow
Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching

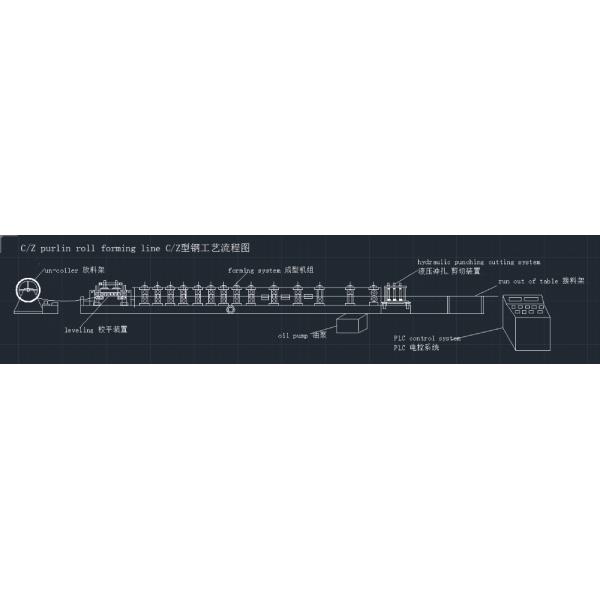

Decoiler → Leveling → Roll Forming → Punching → Cutting → Output Table
Machine Components
Component Quantity
Decoiler 1 set
Leveling Device 1 set
Roll Forming Machine 1 set
Punching Device 1 set
Cutting Device 1 set
PLC Control System 1 set
Hydraulic Pump 1 set
Output Table 1 set
Machine Parameters
Decoiler
Type Hydraulic or Manual (Optional)
Inner Diameter 450-550mm
Outer Diameter 1500mm
Width 500mm
Capacity 5000kg
Leveling Device
Width 600mm
Rollers for Leveling 5 rollers
Material for Rollers GCr15 steel
Hardness for Heat Treatment HRC 55-60°
Roll Forming Machine
Roller Station 13 steps
Roller Material Gcr15 steel
Thickness 1mm
Punching Device
Type 4 pillars hydraulic punches
Length for Punch Table 1.2m × 1.5m
Motor for Hydraulic Punch 7.5 kw
Hole-Punching Modular 3 pieces
Cutting Device
Type Hydraulic
Power 5.5kw
Driven 1 inch chain
Cutting Blade Cr12 steel
Control System
Type PLC Frequency Control System with touch screen
PLC Brand Japan
Encoder Brand Omron
Length Error ±2mm
Language English and Chinese
Hydraulic Pump
Power 3kw
Oil Type 46# hydraulic oil
Pump Brand China Brand
Output Table
Length 6m
Function Simple design for loading finished products
Additional Specifications
Roller Material Cold Roller Steel Sheet
Material for Shaft GCR45 steel
Hardness for Heat Treatment HRC55-60°
Diameter of Shaft 80mm
Frame Panel Thickness 20mm
Bottom Frame 360# H-section steel
Rolling Speed 8-12m/min
Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching
Our Service
Service Aspect Details
Payment Type 30% T/T prepaid and balance paid before loading
Delivery Time 30 days after receiving advance payment
Guarantee Period 18 months free service / pay service for machine lifetime
Installation and Training On-site training for visiting buyers; user manual and video guidance for remote support; technician dispatch available with accommodation arrangements
Packing Details
  • 1 × 40 GP container with main machine fastened with iron wire
  • Rollers painted with oil and packed with plastic film
  • Electrical devices packed in wooden boxes for standard export packing
  • All components fixed by steel wire within container
Other Products
Specializing in production of automatic C-beam machines, CZ steel machines, roof panel equipment, LouCheng board equipment, glazed tile systems, high-speed guardrail equipment, double caigang watts, door equipment, light steel keel equipment, solar photovoltaic equipment, water stop plate equipment, rail fence equipment, cullis sink devices, automatic doors, ridge tile equipment, sandwich composite machines, shearing machines, bending machines, slitting machines, and other cold bending forming equipment.
