PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness

Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table

Machine Component

Parameter

1. DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs

2.LEVELING DEVICE
(1) Thickness: 1-3 mm
(2) Rollers for Leveling: 5 rollers

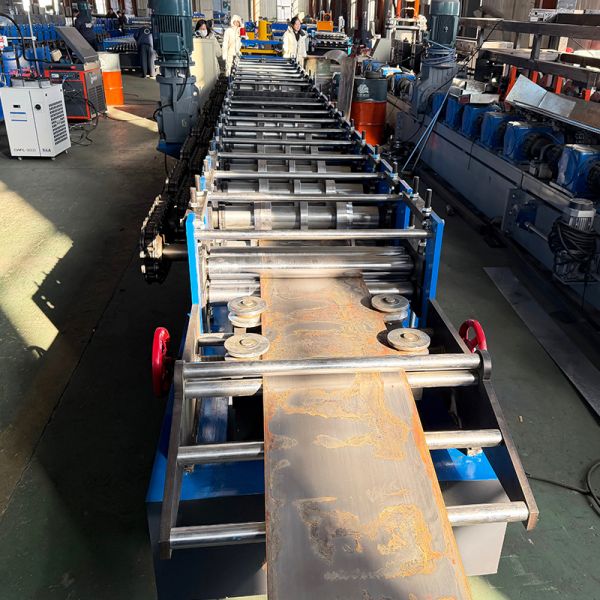

3.ROLL FORMING MACHINE
(1) Material Thickness: Galvanized steel 1.5-3.0mm, stainless 1.5mm
(2) Rollers: 18Groups
(3) Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°

(4) Material for shaft: #45 steel after treatment

(5) Diameter of shaft: 80mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 11kw
(9) Rolling Speed: 8-10 m / min

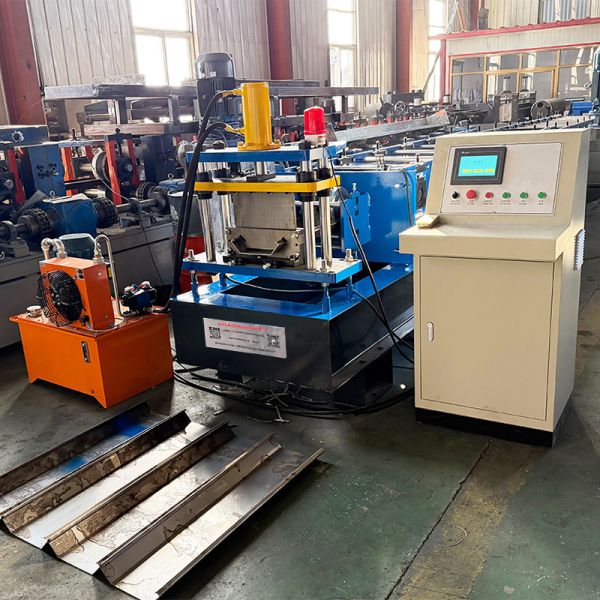

Punching device

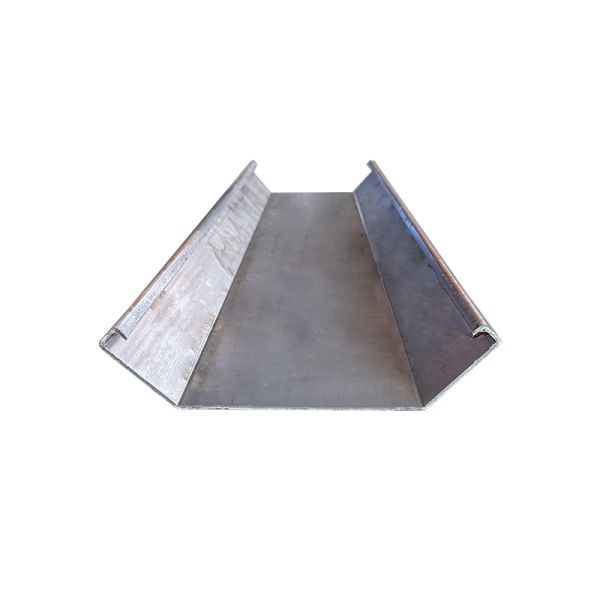

Photos

Installation and training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting,we will send you user manual and CD to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

RFQ

Step 1: Tell us your requirements

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production

Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping

Step 7: Handing Shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.
