Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter
Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter
Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter
Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter
Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter
Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter
Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter
Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter
Specifications
Brand Name :
CHBEST
Model Number :
XY80-300
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Supply Ability :
20 sets/month
Delivery Time :
30-40 days
Packaging Details :
plastic film for naked machine
Product name :
Metal Structure C / Z / U Purlin Roll Forming Machine to Make C / Z / U Shape
Color :
Blue or as your request
Machine speed :
4-6m/min
Machine dimention :
7.5mx1.8mx1.4m
Machine power :
11kw+5.5kw
Driven system :
Chain or gear box
Control system :
PLC
Cutting type :
Hydraulic
Warranty :
2 years
Life time :
more than 10 years
Description

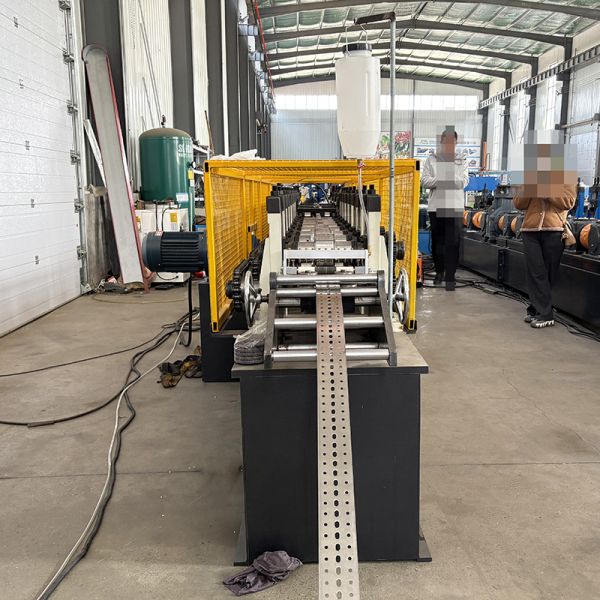

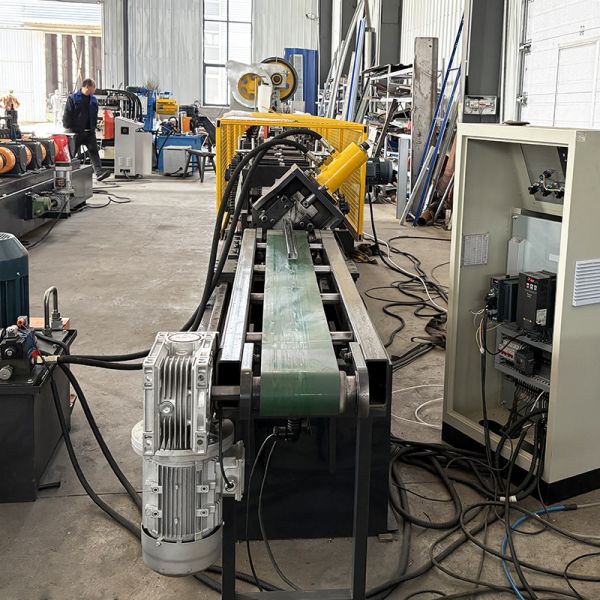

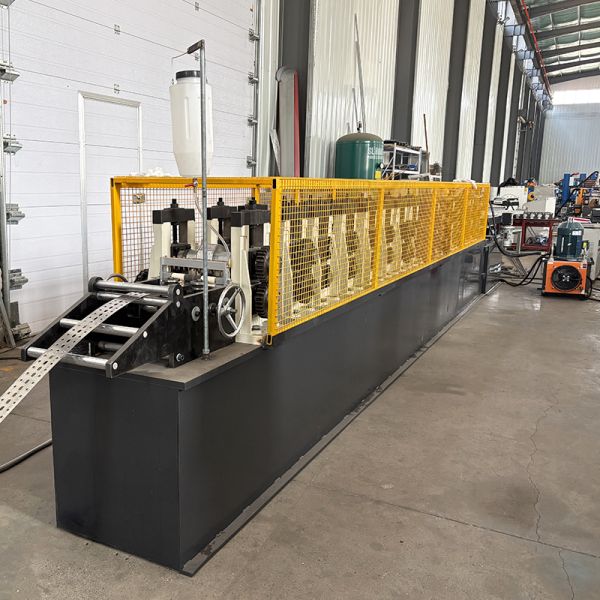

Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter

Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter




Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter Advantage:One machine can produce C Z U purlin, size range 80--300mm,machine can change size automatically, save cost and space.


Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table


Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter Machine Component

De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 set



Decoiler

Type Manual type(standard) Hydraulic type(option)

Width 500mm 600mm
Capacity 5000kgs 5000kgs-8000kgs
Inner diameter 450-550mm 450-550mm
Outter dimater 1500mm 1800mm


roll forming machine

Item Parameter detail
Processing Material GI and Black Coils
Material thickness 1-3mm(standard), 3-5mm(customized)
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
Plate type Casting Pillar type(option)


Plate thickness:20mm Pillar thickness:35mm


Forming stations 15 stations (according to the material thickness)
Machine rollers

high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ80-90mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision and wire-electrode cutting
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 2 inch chain or gear box(option)
Machine power 7.5kw-22kw(according to the size and thickness)
Machine working speed without punching:8-12m/min or 10-30m/min(option)
Machine testing method After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter Hydraulic Punching C Channel Purlin Roll Forming Machine with Flying Cutter
Punching device

Item Parameter detail
Frame processing the whole levelling surface is made by drilling machine
Mould material Cr12mov
Mould processing wire eletrode-cutting for the mould shape, it will save pressure
Hole size According to your request
Hole number According to your request
Pressure 20Mpa
