Specifications
Brand Name :
BEST
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD6000-10000
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/months
Delivery Time :
30 work days
Name :
Color Steel Roof Ridge Cap Roll Forming Machine With Single Chain Transmission
Key word :
plc control ridge cap roll forming machine
Voltage :
380V 50Hz 3phases
Condition :
New
Weight :
about 3 tons
After-sales service provided :
Engineers available to service machinery overseas
Use :
Produce Ridge Cap tile
Description
Color Steel Roof Ridge Cap Roll Forming Machine With Single Chain Transmission
This professional roll forming machine produces high-quality ridge caps that provide both aesthetic finishing and effective watertight protection for roof ridges and hips.
Key Features
  • Provides watertight barrier and aesthetic finish for roof ridges and hips
  • Extends roof lifespan with industry-leading protective design
  • Multiple metal material options available for design flexibility
  • Custom manufacturing available based on customer drawings or samples
Main Components
Component Quantity
Decoiler 1 Unit
Feeding guide 1 Unit
Main roll forming machine 1 Unit
Hydraulic cutting 1 Unit
Hydraulic station 1 Unit
PLC computer control 1 Unit
Output table 1 Unit
Technical Specifications
1. Manual Decoiler
Specification Detail
Capacity Max load 3000KG
De-coiler type Manual passive type de-coiler
2. Feeding Guide
Straightens and flattens coil material after de-coiling, ensuring proper feeding into the forming machine.

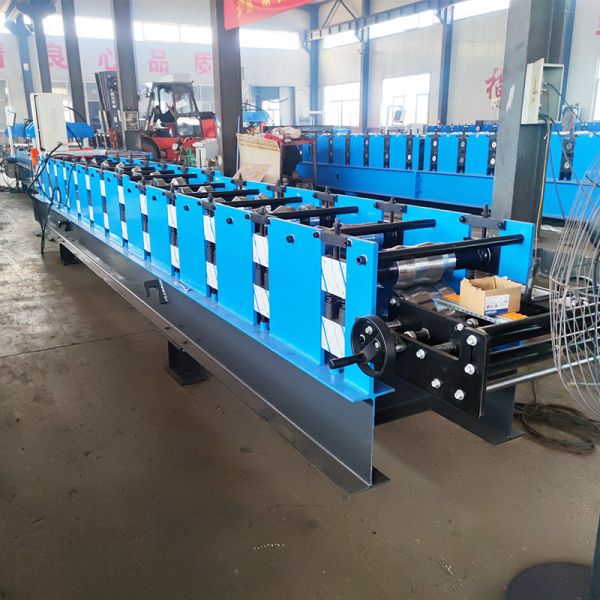

3. Main Roll Forming Machine
Specification Detail
Main motor power 5.5KW
Roller Stands Approx. 15 stations (depend on final design)
Machine frame stand Welded structural steel with shot blasting treatment
Forming Structure Guiding Column
Transmission Chain drive
Material of Roller High grade 45# steel, roller surface with 0.05mm hard chrome HRC58-62
Material Shaft High grade 45# steel with heat treatment
Shaft Diameter ¢ 70mm

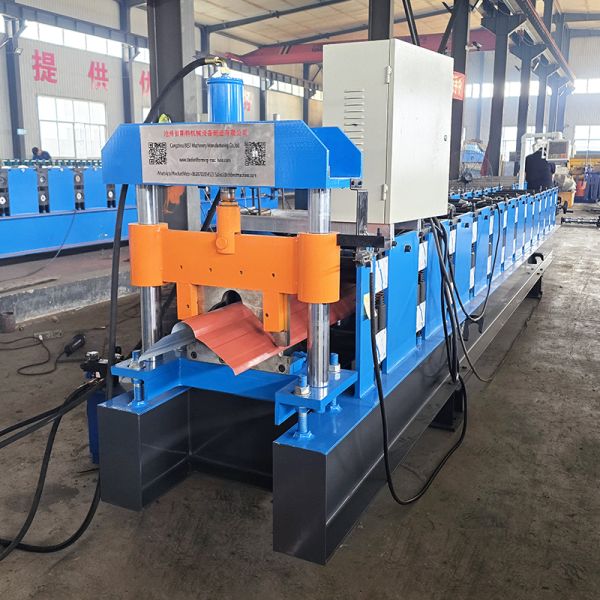

4. Cutting Device & Hydraulic Station
Specification Detail
Cutting method Profile-matched die cutting with zero waste
Cutting type Hydraulic cutting
Blade material Cr12 with quenched treatment
Cutting Tolerance +/-1.5mm
Heat Treatment of Cutting Blade HRC50-60
Hydraulic Power 2.2KW
5. PLC Control System
Specification Detail
Control technology PLC with frequency adjust speed for automatic production
Interface User-friendly touch screen for setting batches, plate length, and quantity
Measurement Encoder for counting and length measurement
Operation Type Touch screen + Button
Electrical Control PLC frequency control system with touch screen
PLC Brand
Encoder Omron Brand
Control board size 700mm (L) x 1000mm (H) x 300mm (W)
6. Run-out Table
Supports finished panels with two non-powered tables capable of handling panels up to 10000mm in length. Constructed with welded square-steel frames for durability.
