Popular design valley flash Ridge Cap Roll Forming Machine
Popular design valley flash Ridge Cap Roll Forming Machine
Popular design valley flash Ridge Cap Roll Forming Machine
Popular design valley flash Ridge Cap Roll Forming Machine
Popular design valley flash Ridge Cap Roll Forming Machine
Popular design valley flash Ridge Cap Roll Forming Machine
Popular design valley flash Ridge Cap Roll Forming Machine
Popular design valley flash Ridge Cap Roll Forming Machine
Specifications
Brand Name :
CHBEST
Model Number :
XY350
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Supply Ability :
20 sets/month
Delivery Time :
20-30 days
Packaging Details :
plastic film for naked machine
Product name :
Popular design valley flash Ridge Cap Roll Forming Machine
Key word :
Ridge Cap Roll Forming Machine Machine
Machine speed :
8-12m/min
Machine power :
3kw+3kw
Lifetime :
more than 10 years
Warranty :
18month
Control system :
PLC
Description

Popular design valley flash Ridge Cap Roll Forming Machine


Ridge Cap Roll Forming Machine advantages


1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.


Ridge Cap Roll Forming Machine Machine components


No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Pressing and Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set


Ridge Cap Roll Forming Machine Machine Parameter

Product name

ridge cap galvanized

NO.

Items

Parameters

Remark

1

Suitable
Material

Type

GI/PPGI/AL




Width

300-5000mm

Custom



Thickness

0.30-0.80mm


2

Product
Specifications

Length

Any length




Length Tolerance

±2mm/6m


3

Working Speed

10-15 m/min

Standard machine

4

Control System

Mitsubishi/ PLC& transducer

Custom

5

Total Power

4+3KW


6

Total Weight

About 3.0T

Up to final design


Working conditions
1.working size 15m x 2m x 4m
2.Power supply 6kw
3.Frequency 50-60HZ
4.Wires/cables 4-6mm²(length according to workshop)
5. Labor cost 2 workers
6. Tools Spanners and screwdriver
7.Lift device 3-5t forklift or crane


Terms

Payment: 30% T/T prepaid and balance should be paid before shipping.
Delivery time:40 days after receiving advance payment.
Guarantee period: 12months
Installation and training:if buyer visit our factory and check the machine, we will teach you how to install and use the machine.
And also train your workers/technician face to face.
We will send you video to teach you to install and operate.
If you need our technician abroad to your country, please arrange board and lodging and other necessary things.

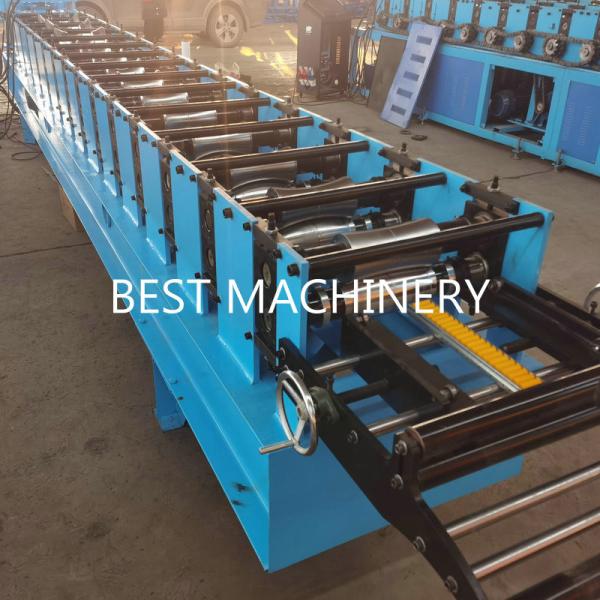

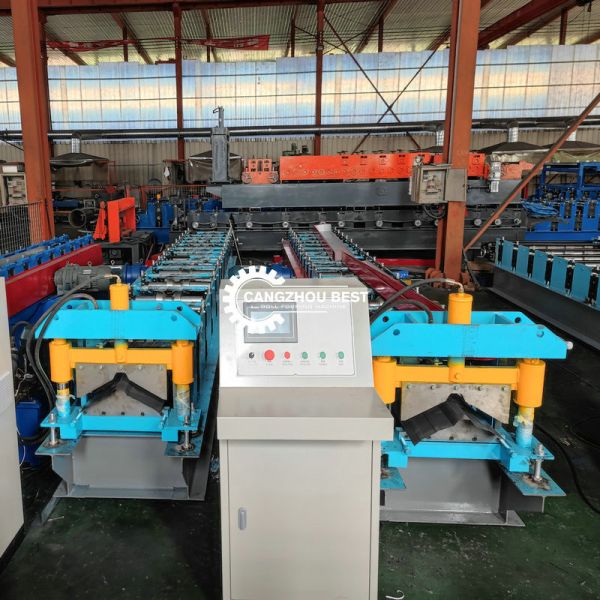

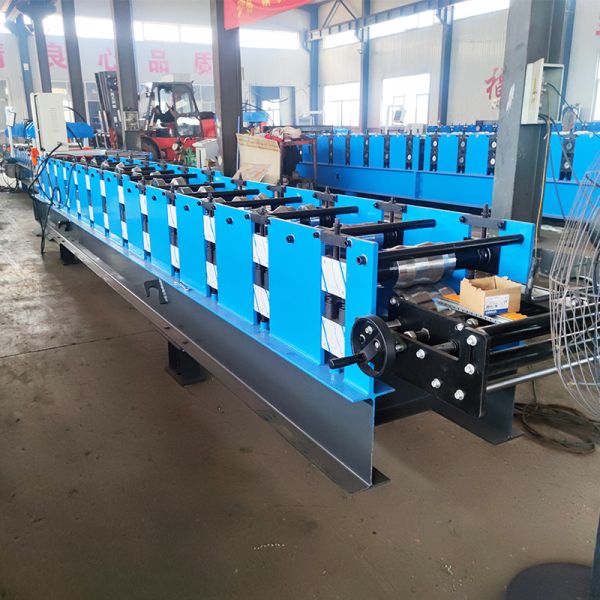

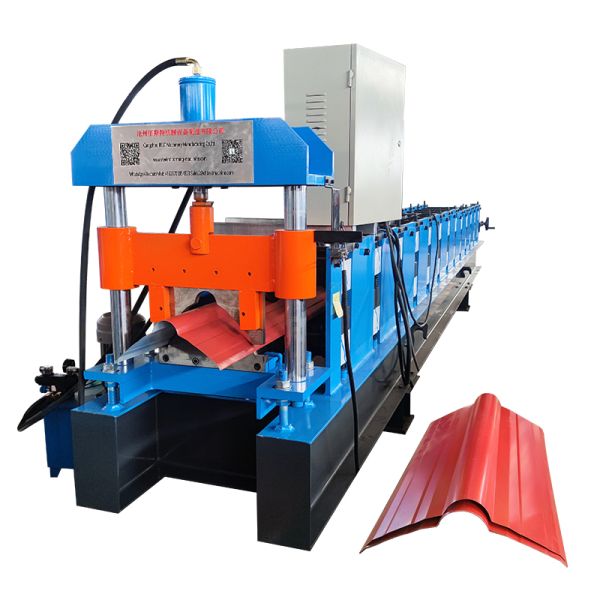

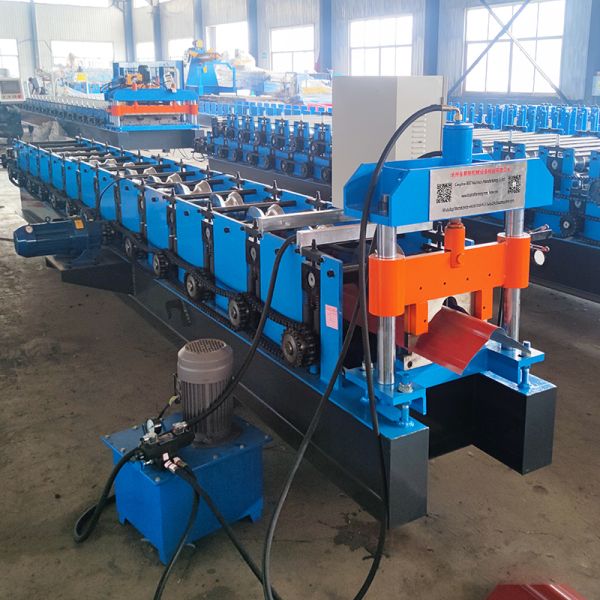

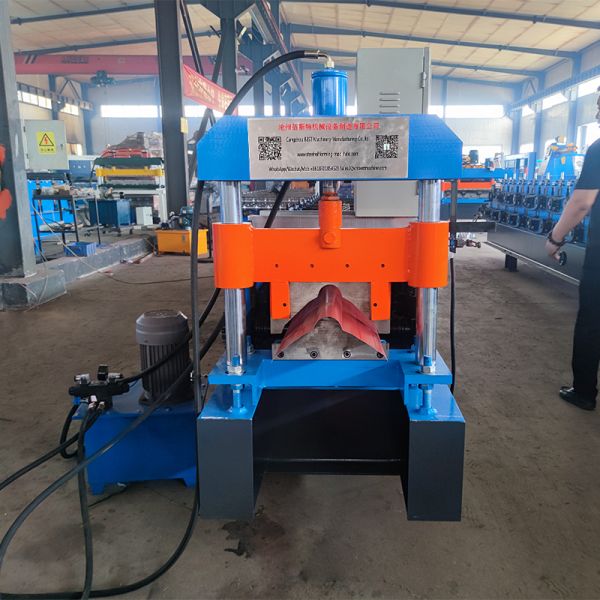

Ridge Cap Roll Forming Machine Machine Photos

Popular design valley flash Ridge Cap Roll Forming Machine

Popular design valley flash Ridge Cap Roll Forming Machine
