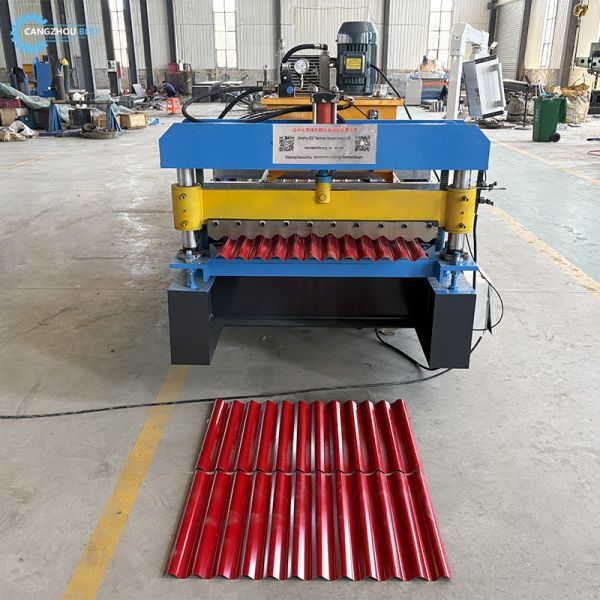

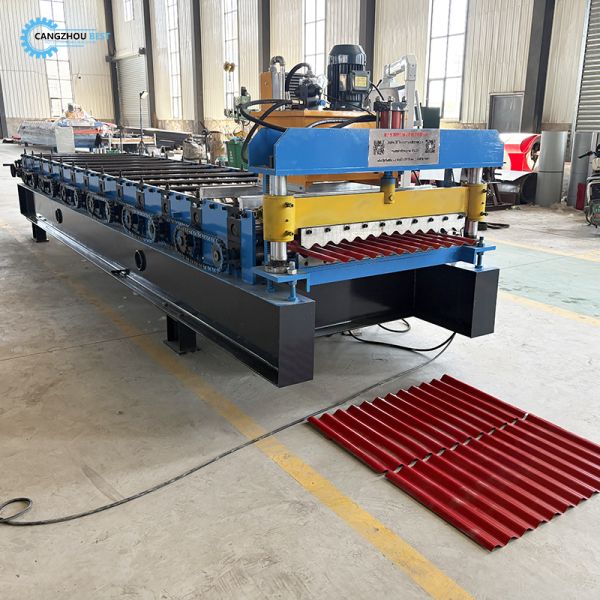

Manufacture Galvanized Steel Corruagted Roofing Sheet Roll Forming Machine

1. Company information:

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

2. Manufacture Galvanized Steel Corruagted Roofing Sheet Roll Forming Machine Machine details:

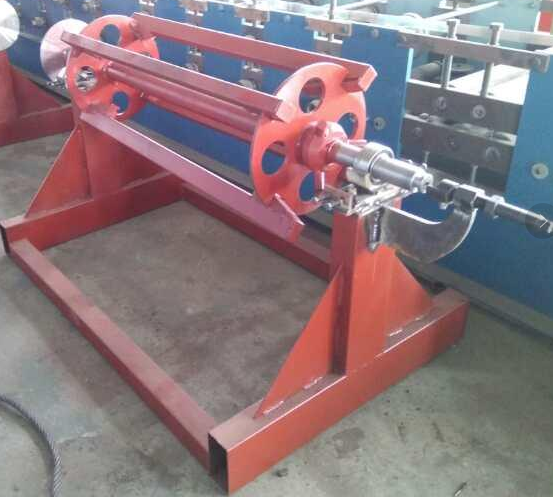

DECOILER (1) Max. Width: 1000 mm (2) Inner Diameter: Φ450 – Φ550 mm (3) Out Diameter: 1500 mm (4) Max. Loading Capacity: 5000 kgs

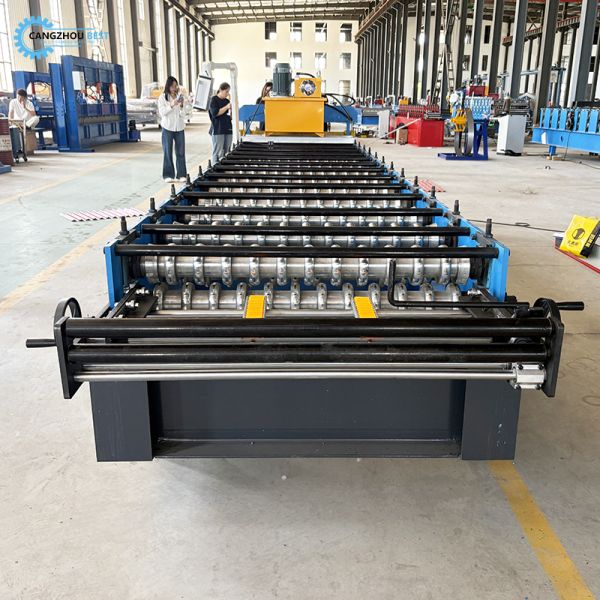

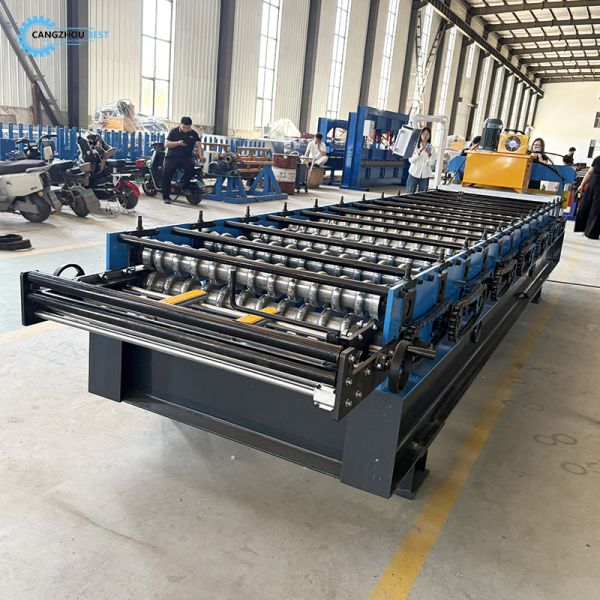

ROLL FORMING MACHINE (1) Material Thickness: 0.3-0.8mm PPGI and GI (2) NO. of roller Stations: 11groups (3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC58-62° (4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62° (5) Diameter of shaft: 70mm
CUT-OFF DEVICE (1) Material for Cut-Off Modular:Cr12 steel after treatment (2) Hardness for Heat Treatment:HRC58 – 62° (3) Cut-Off Type: Hydraulic, Automatic Cut-Off (4) Motor for Hydraulic Stand: 3 kw
PLC CONTROL BOX (1) Type: PLC Frequency Control System with touch screen (2) PLC Brand:Delta (3) Encoder Brand: Omron (4) Length Error: ±2mm (5) Language: English and Chinese (6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
HYDRAULIC PUMP STATION (1) Motor power: 3 kw (2) Oil type: 46# hydraulic oil (3) Pump brand: China brand

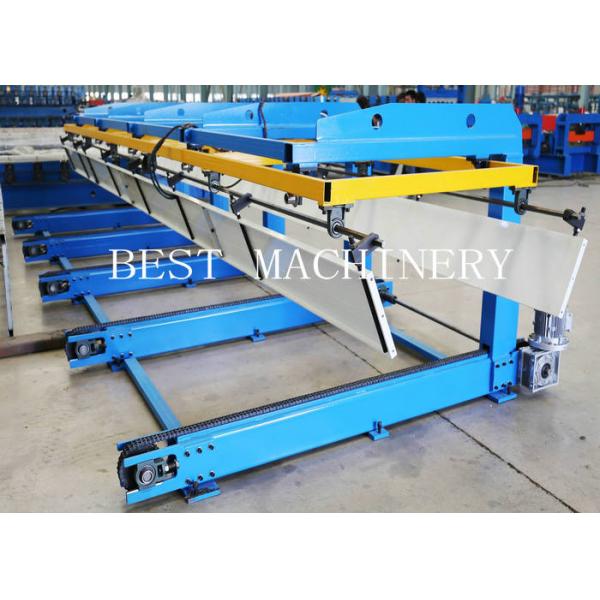

PRODUCTION SUPPORT TABLE (1) No power type (2) Length: 2m

3. Manufacture Galvanized Steel Corruagted Roofing Sheet Roll Forming Machine Packing

Standard Export Packing.

1) One 20ft container for loading one set machine with manual decoiler;
2) The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3) Spare parts and some small parts packed in plastic tooling box;
4) All Components Fixed by steel wire with Container.

4. Manufacture Galvanized Steel Corruagted Roofing Sheet Roll Forming Machine Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

5. FAQ:

1) Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2) Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need

your machines running in order to keep your business running.

3) How to visit your company?

a. Fly to Beijing airport: By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick

up you.

b. Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then

we can pick up you.

4) What can you do if the machine broken?

Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

5) Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

6) You are trade company or factory?
We are factory, we are machine manufacturer. We have professional machine design team, we can control machine quality and price, it means you can use proper price get good quality machine

We can produce according to your requirements.

6. Optional:

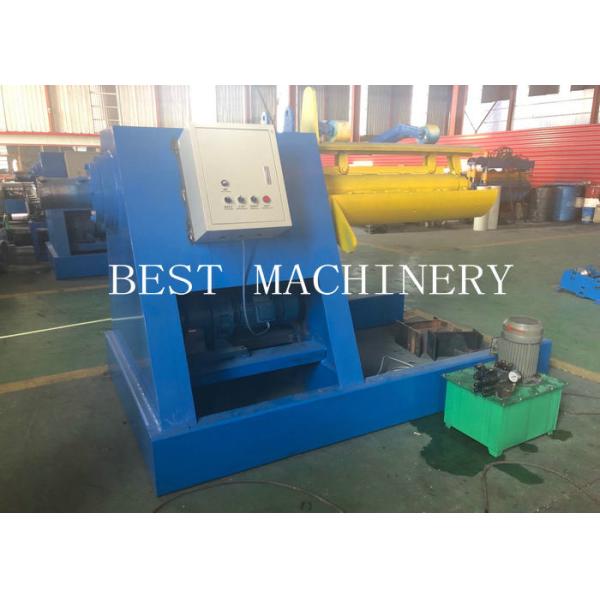

1) Hydraulic decoiler:
