0.12-0.3mm Thin Material Drum Corrugated Roofing Sheet Roll Forming Machine with PLC Control System and 45# Steel Rollers
0.12-0.3mm Thin Material Drum Corrugated Roofing Sheet Roll Forming Machine with PLC Control System and 45# Steel Rollers
0.12-0.3mm Thin Material Drum Corrugated Roofing Sheet Roll Forming Machine with PLC Control System and 45# Steel Rollers
0.12-0.3mm Thin Material Drum Corrugated Roofing Sheet Roll Forming Machine with PLC Control System and 45# Steel Rollers
0.12-0.3mm Thin Material Drum Corrugated Roofing Sheet Roll Forming Machine with PLC Control System and 45# Steel Rollers
0.12-0.3mm Thin Material Drum Corrugated Roofing Sheet Roll Forming Machine with PLC Control System and 45# Steel Rollers
0.12-0.3mm Thin Material Drum Corrugated Roofing Sheet Roll Forming Machine with PLC Control System and 45# Steel Rollers
0.12-0.3mm Thin Material Drum Corrugated Roofing Sheet Roll Forming Machine with PLC Control System and 45# Steel Rollers
Specifications
Model Number :
CHBEST-850
Brand Name :
CHBEST
MOQ :
1set
Delivery Time :
35days
Warranty :
2 year
Price :
USD+8000+SET
Color :
As your require
Shaft Material :
45# steel
Certification :
CE/ISO
Place of Origin :
China.Hebei
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Material :
PPGI/GI
Conreol System :
PLC
Supply Ability :
15sets/month
Name :
Thin Material 0.12-0.3mm Drum Corrugated Roofing Sheet Roll Forming Machine
Packaging Details :
Standard
Description
Thin Material 0.12-0.3mm Drum Corrugated Roofing Sheet Roll Forming Machine

Thin Material 0.12-0.3mm Drum Corrugated Roofing Sheet Roll Forming Machine

0.12-0.3mm Thin Material Drum Corrugated Roofing Sheet Roll Forming Machine with PLC Control System and 45# Steel Rollers
Main Technical Parameters
01. Decoiler
  • Max. Width: 1000mm
  • Inner Diameter: Φ450 - Φ550 mm
  • Out Diameter: 1500 mm
  • Max. Loading Capacity: 5000 kgs
  • Type: manual

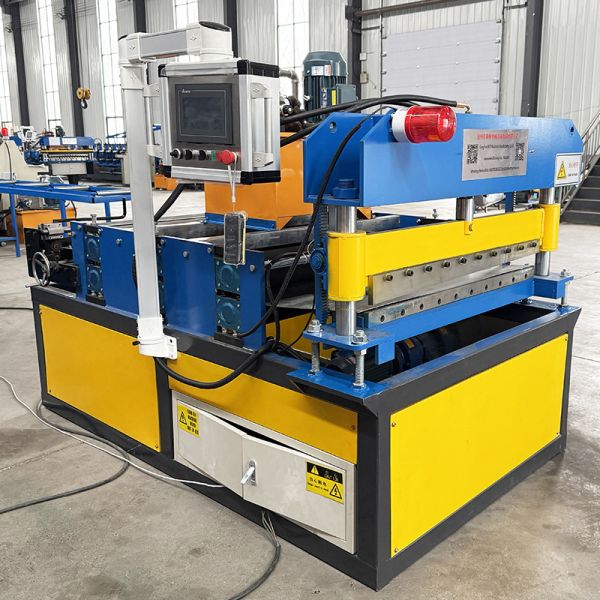

02. Leveling and Cutting Device
  • Stations: 3 groups
  • Material for shaft: rubber
  • Bottom frame material: 35# H-section steel
  • Cutter blade material: Cr12 steel
  • Type: hydraulic
  • Feeding power: 3kw
  • Cutter power: 3kw
  • Product table length: 4m without power
0.12-0.3mm Thin Material Drum Corrugated Roofing Sheet Roll Forming Machine with PLC Control System and 45# Steel Rollers
03. PLC Control Box
  • Type: PLC Frequency Control System with touch screen
  • PLC Brand: Delta
  • Length Error: ±2mm
  • Language: English and Chinese
  • Voltage: 380v/50HZ, 3Phase (depends on customer requirement)
  • Remote: 1pcs
  • Light Alarm: 1pcs
04. Hydraulic Pump Station
  • Oil type: 46# hydraulic oil
  • Pump brand: China brand
  • Motor power: 3kw
  • Solid valve: single
  • Cooling way: fan
05. Production Support Table
  • No power type
  • Length: 4m

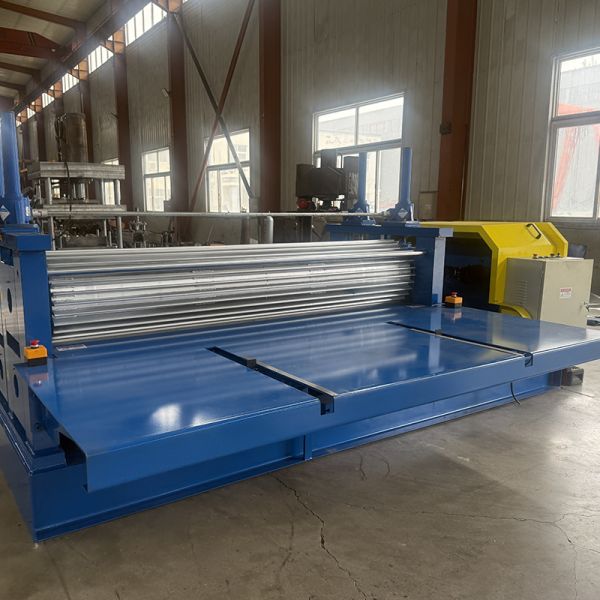

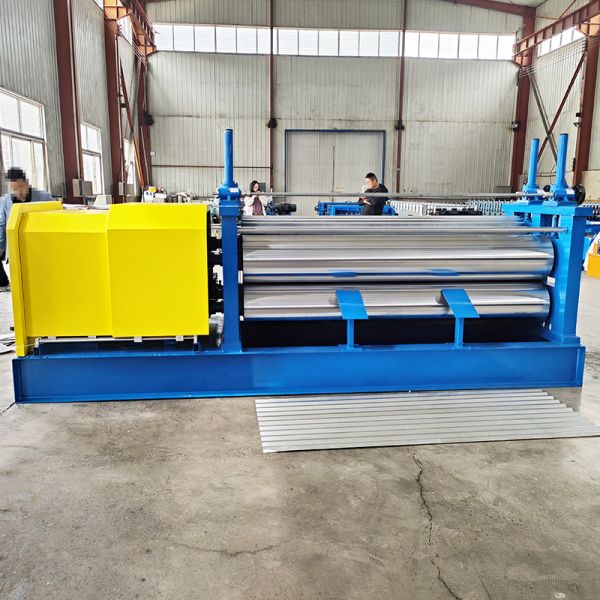

06. Forming Machine (sheet width 4m)
  • Material Thickness: 0.125-0.3mm PPGI and GI Q235MPA
  • Roller station: 2 Groups
  • Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
  • Material for shaft: high grade No.45 steel after treatment
  • Machine frame: 100mm steel panel welding
  • Diameter of forming: 390mm (CNC lathe)
  • Feeding roll: 340mm
  • Motor: 15kw
  • Control by switch
  • Speed: 10-15pcs/min
  • Productivity: 2-4ton/hour
  • Transmission: gear with Frequency
0.12-0.3mm Thin Material Drum Corrugated Roofing Sheet Roll Forming Machine with PLC Control System and 45# Steel Rollers
Customer Service
Pre-Sales Service After-Sales Service
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. Without visiting, we will send you user manual and video to teach you to install and operate. Training how to install the machine, training how to use the machine. Engineers available to service machinery overseas. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
Packing Details
  • 1*20 GP container; main machine naked and fastened with iron wire in the container.
  • Rollers were painted with oil and packed with plastic film.
  • Electrics devices be packed with wooden box for Standard export packing.
  • All Components Fixed by steel wire with Container.
