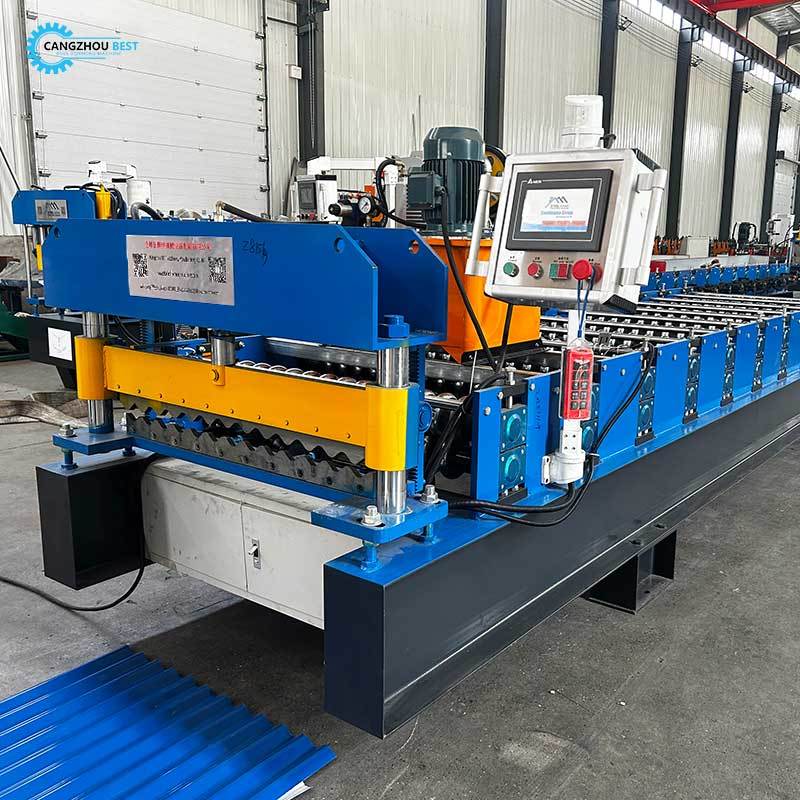

Zambia Popular Color Steel Automatically Cutting Corrugated Roofing Sheet Roll Forming Machine
Zambia Popular Color Steel Automatically Cutting Corrugated Roofing Sheet Roll Forming Machine
Zambia Popular Color Steel Automatically Cutting Corrugated Roofing Sheet Roll Forming Machine
Zambia Popular Color Steel Automatically Cutting Corrugated Roofing Sheet Roll Forming Machine
Zambia Popular Color Steel Automatically Cutting Corrugated Roofing Sheet Roll Forming Machine
Zambia Popular Color Steel Automatically Cutting Corrugated Roofing Sheet Roll Forming Machine
Zambia Popular Color Steel Automatically Cutting Corrugated Roofing Sheet Roll Forming Machine
Zambia Popular Color Steel Automatically Cutting Corrugated Roofing Sheet Roll Forming Machine
Specifications
MOQ :
1set/month
Delivery Time :
5-60days
Length :
Customized
Certification :
CE BV SGS
Model Number :
YX-1041
Control System :
PLC
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Roller material :
Hydraulic cutting
Delivery time :
25-30 Days
Price :
USD6500-25500/set
Payment term :
L/C, T/T
Supply Ability :
20sets/month
Name :
Corrugated Roofing Sheet Roll Forming Machine
Brand Name :
CHBEST
Surface Treatment :
Coated
Packaging Details :
20GP/40GP container
Cutting blade material :
Cr12
Speed :
8-12m/min
Place of Origin :
China
Side panel :
20mm
Description
Zambia Popular Color Steel Automatically Cutting Corrugated Roofing Sheet Roll Forming Machine
Zambia Popular Color Steel Automatically Cutting Corrugated Roofing Sheet Roll Forming Machine
Corrugated Roofing Panel Roll Forming Making Machine designed for efficient production of house building materials.
Corrugated Roofing Sheet Roll Forming Machine Key Advantages
  • Processes galvanized steel thickness 0.2-0.8mm with customizable coil widths (1250mm, 1200mm, 1000mm)

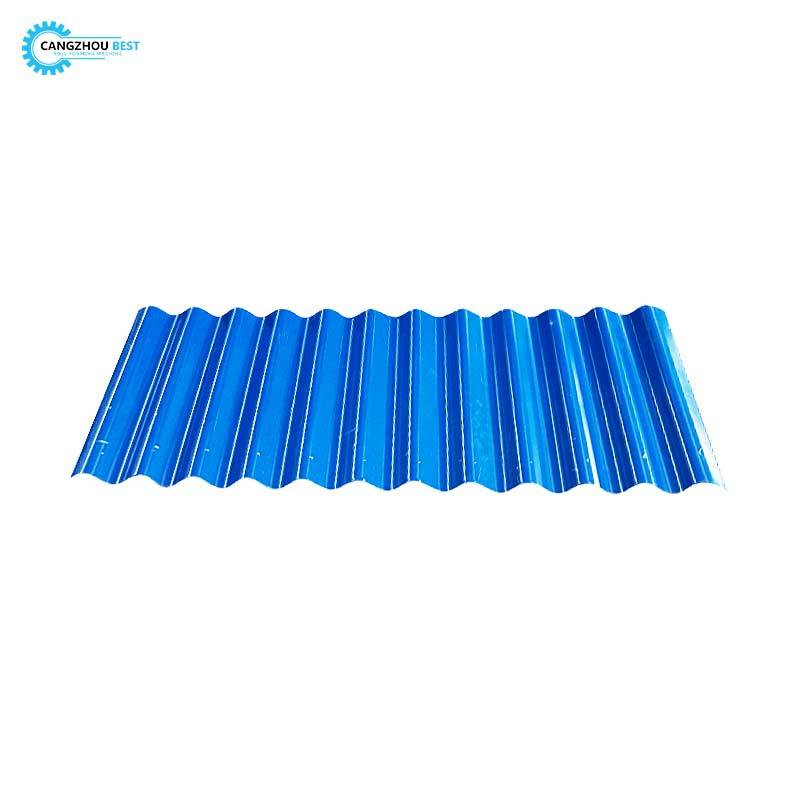

  • Popular corrugated design suitable for roof and wall applications worldwide
  • Stable, long-term operation with production speeds of 10-15m/min
  • PLC-controlled automation for length and piece settings with minimal staffing (1-2 workers)
  • Designed for 8-hour daily operation with routine maintenance requirements
Corrugated Roofing Sheet Roll Forming Machine Technical Specifications
Item Specification
Formable Materials PPGI, GI, AI
Operation Automatic
Voltage 380V 60Hz 3Phase or custom
Sheet Thickness 0.3-0.7mm
Material Width Customizable
Cover Width After Forming As per drawing
Machine Dimensions 5000mm x 1600mm x 1400mm
Speed 8-15m/min
Shaft Diameter 75mm
Machine Weight 3000-3500 KGS
Roller Material C45 steel quenched and chromed
Motor Brand or Guomao
PLC , Delta, or Mitsubishi
Total Power 6kw
Hydraulic System Power 3kw
Main Molding Core Power 3kw
Zambia Popular Color Steel Automatically Cutting Corrugated Roofing Sheet Roll Forming Machine
Corrugated Roofing Sheet Roll Forming Machine Components
Item Unit Quantity
Manual Decoiler set 1
Molding Core set 1
PLC Control Box set 1
Hydraulic Pump set 1
Exit Rack set 1
Cutting System set 1
Corrugated Roofing Sheet Roll Forming Machine Professional Services
Our professional team provides comprehensive roll forming machine solutions including design, processing, assembly, debugging, and delivery. We offer technician support for installation and operator training. Immediate technical support and problem resolution available.
Corrugated Roofing Sheet Roll Forming Machine Additional Products
Villa Keel Roll Forming Machine, Stud and Track Keel Roll Forming Machine, Omega Profiles Keel Roll Forming Machine, Profiles Bending Roll Forming Machine, Ceiling Keel Roll Forming Machine, Double Layer Roofing Tile Roll Forming Machine, Metal Roofing Roll Forming Machine, Floor Deck Roll Forming Machine, C-Purlin Forming Machine, Light Steel Forming Machine, Ridge Tile Forming Machine, Bending Machine, Container House systems.
Custom production available according to your specific requirements.
