GCr 15 28 Stations Steel Deck Roll Forming Machine
GCr 15 28 Stations Steel Deck Roll Forming Machine
GCr 15 28 Stations Steel Deck Roll Forming Machine
GCr 15 28 Stations Steel Deck Roll Forming Machine
Specifications
Brand Name :
BEST
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD18000--25000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets
Delivery Time :
30 work days
Voltage :
380V 50Hz 3phases
Condition :
New
Tile type :
Colored Glaze Steel
Use :
Roof
Warranty :
2 Year
Description

Roller Material is GCr 15 Brief introduction of steel deck roll forming machine with 28 stations

Finished product:

  1. thickness: 0.8-1.2 mm
  2. materil width: 914-1250 mm
  3. effective width: 750-1000 mm
  4. material steel: galvanized steel coil

Machine specification:

  1. dimensions: 14500*1600*1400 mm
  2. structure: middle plate
  3. working speed: 15 m/min
  4. roller stations: 26
  5. roller material:GCr 15
  6. shaft materil: 80 mm
  7. cutter materil: Cr12
  8. cutting system: hydraulic
  9. control system: PLC

​Profile

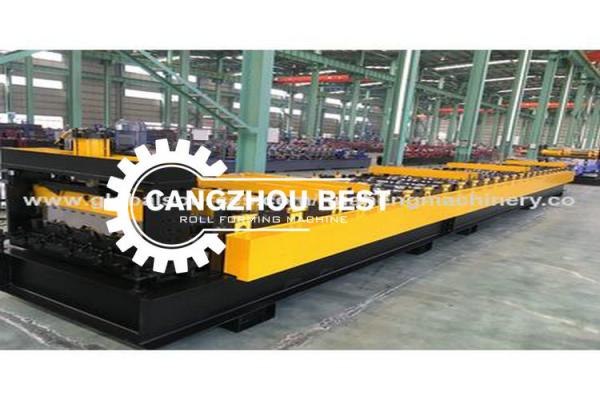

GCr 15 28 Stations Steel Deck Roll Forming Machine

Equipment Detailed Parameters:

No. Item Description
1 Coil Galvanized
2 Raw Material Thickness 0.8 mm-2.0 mm
3 Working Speed 8-15 m/min ( not including the cutting time)
4 Roller Station 22 Raws
5 Dimension (L*W*H) 13000 mm*1500 mm*1500 mm
6 Machine Weight 9500 KG
7 Electrical Control System Panasonic PLC (can be customized)
8 Drive Motor Power 7.5 KW
9 Hydraulic Station Power 5 KW
10 Power Supply 380V, 60HZ, 3 PHASES(can be customized)
11 Cutting Accuracy ±2 mm
12 Driving Mode Single Chain 2 inch
13 Material of Shaft 80 mm 45#steel forged
14 Material of Roller 45# Steel Finish Machining, Plated Hard


Components and Technical Specification
Manual Uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 8 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.

Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

Main Roll Forming Machine

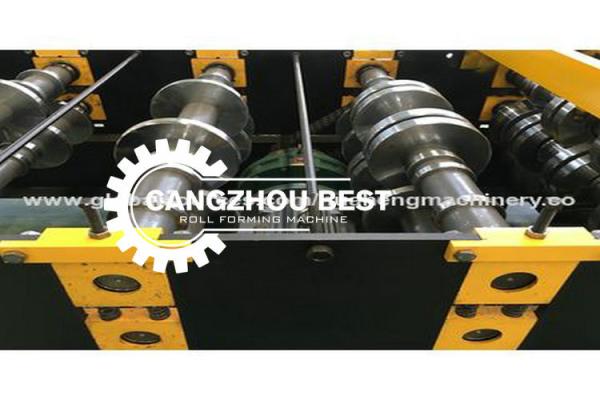

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC:Delta

Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.Material of blades: Cr12,quenching treatment.

Output Table
It adopts welded & screw steel and supported roller to transmit the products,which is used to collect the finished products.

Machine loading
All machines need one 40ft container to hold.
