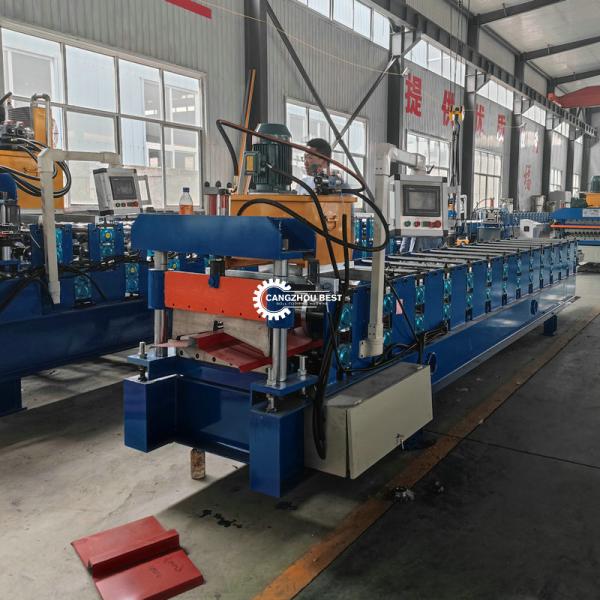

Steel Roof Sheet Ridge Cap/Roll Top IBR Roof Sheet Roll Forming Machine

Component

Working Flow:

Decoiler------feeding------roll forming------cut to length-----output table

Main technical parameter:

1.DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

(5)Type: Manual

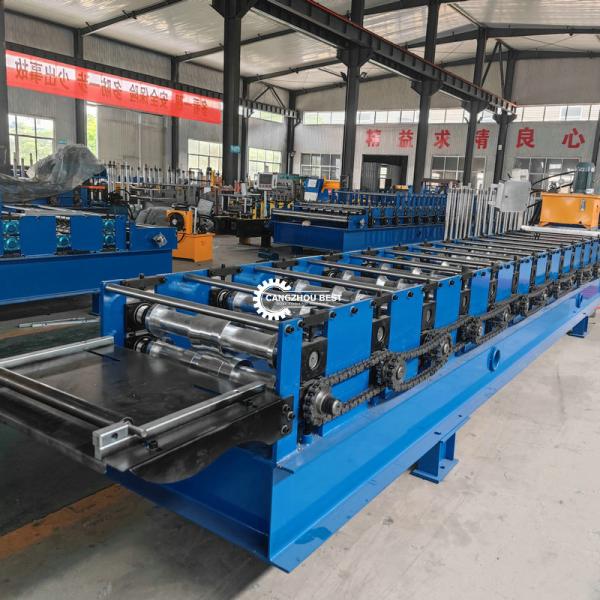

2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 19groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 350 H-section steel
(8) Motor Power: 5.5kw

(9)Driven type: 1.0＂Chain

(10)Speed:8-12m/min

3. CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kW

4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase

(it depends on customer requirement)

5. HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

6. PRODUCTION SUPPORT TABLE

(1) No power type
(2)Length: 2m

Company profile

Cangzhou Best Machinery Manufacuring co., LTD is specialized in the manufacture of high-end equiment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

Packing&Loading

1. one 20ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
