Steel Profile C Stud / Drywall Channel Making Roll Forming Machine PLC Control
Steel Profile C Stud / Drywall Channel Making Roll Forming Machine PLC Control
Steel Profile C Stud / Drywall Channel Making Roll Forming Machine PLC Control
Steel Profile C Stud / Drywall Channel Making Roll Forming Machine PLC Control
Steel Profile C Stud / Drywall Channel Making Roll Forming Machine PLC Control
Steel Profile C Stud / Drywall Channel Making Roll Forming Machine PLC Control
Steel Profile C Stud / Drywall Channel Making Roll Forming Machine PLC Control
Steel Profile C Stud / Drywall Channel Making Roll Forming Machine PLC Control
Specifications
Brand Name :
CHBEST
Model Number :
XY40
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Supply Ability :
20 sets/month
Delivery Time :
30-40 days
Packaging Details :
plastic film for naked machine
Product name :
Steel Profie C Stud/Dywall Channel Making Roll Forming Machine
Punching type :
hydraulic
Control system :
PLC
Cutting type :
flying saw
Warranty :
2 years
Lifetime :
10years
Description
Steel Profile C Stud / Drywall Channel Making Roll Forming Machine with PLC Control
Professional roll forming machine for manufacturing steel profile C studs and drywall channels with advanced PLC control system for precision and efficiency.
Machine Components
No. Name Unit Qty
1 1.5T Manual Decoiler set 1
2 Main Forming Machine set 1
3 PLC Control System set 1
4 Hydraulic Pump Station set 1
5 Post Cut set 1
6 Electric Motor set 1
7 Output Table set 1
Machine Specifications
Decoiler:
  • Max. Width: 500mm
  • Inner Diameter: Φ450 - Φ550 mm
  • Out Diameter: 1500 mm
  • Max. Loading Capacity: 3000 kgs
Roll Forming Machine:
  • Material Thickness: 0.5-1.0mm PPGI and GI
  • Number of Roller Stations: 8 groups
  • Material for Rollers: Cr12 steel polished and coated with chrome HRC58-62°
  • Material for Shaft: High grade 45# steel polished and coated with chrome HRC58-62°
  • Diameter of Shaft: 60mm
  • Frame Panel: Casting type
  • Bottom Frame: 36# H-section steel
  • Motor Power: 3kw
  • Driven Type: Chain
  • Speed: 8-12m/min
Cut-Off Device:
  • Material for Cut-Off Modular: Cr12 steel after treatment
  • Hardness for Heat Treatment: HRC58 - 62°
  • Cut-Off Type: Mould Cutting
  • Motor for Hydraulic Stand: 3kw
PLC Control Box:
  • Type: PLC Frequency Control System with touch screen
  • PLC Brand: Delta
  • Encoder Brand: Omron
  • Length Error: ±2mm
  • Language: English and Chinese
  • Voltage: 380v/50HZ, 3Phase (customizable to customer requirements)
Hydraulic Pump Station:
  • Oil Type: 46# hydraulic oil
  • Pump Brand: China brand
Warranty & Support
  • If buyers visit our factory, we provide installation training and worker/technician training face-to-face
  • Without visiting, we provide user manual and instructional videos for installation and operation
  • On-site technician service available with arrangement of round trip tickets, accommodation, and daily salary of USD100
Frequently Asked Questions
How to visit our company:
  • Fly to Beijing Airport: Take fast train from Beijing South station to Cangzhou west station (1 hour), then we provide pickup to factory (40 minutes)
  • Fly to Shanghai Airport: Take fast train from Shanghai Hongqiao station to Cangzhou west station (4.5 hours), then we provide pickup to factory (40 minutes)
Custom machine requirements:
  • Provide profile drawing, material specifications, thickness, voltage requirements, and any special requirements
Warranty details:
  • 24-month warranty period with technical support available at any time
  • If parts cannot be repaired, we provide replacement parts free during warranty (customer pays express costs after warranty)
  • Lifetime technical support for equipment
On-site technician service:
  • We send technicians to your country for machine debugging and training
  • Customer covers visa costs, round trip tickets, accommodation, and daily salary of USD100
Product Images

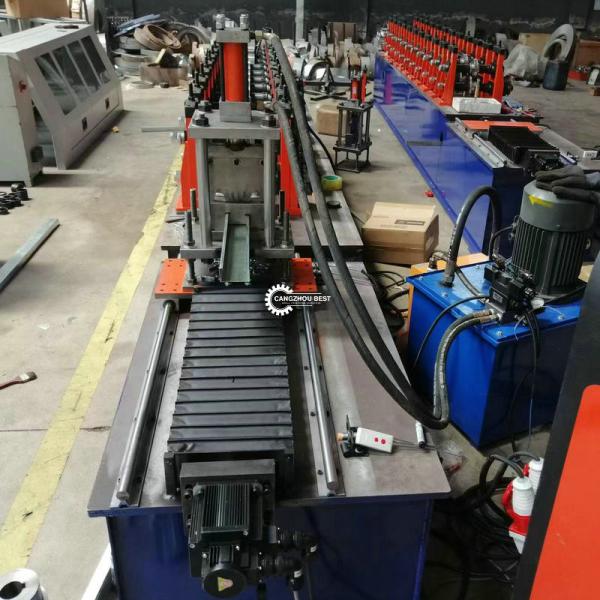

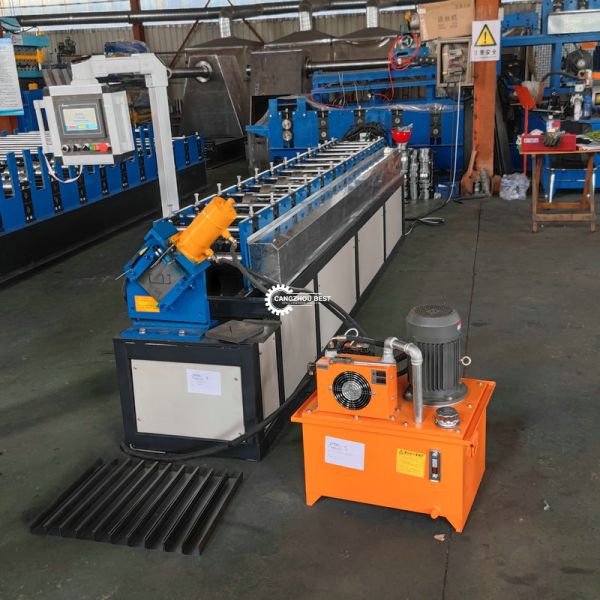

Steel Profile C Stud / Drywall Channel Making Roll Forming Machine PLC Control Steel Profile C Stud / Drywall Channel Making Roll Forming Machine PLC Control
