Specifications
Brand Name :
CHBEST
Model Number :
YX-T
Certification :
CE,SGS,BV
Place of Origin :
Hebei, China
MOQ :
1set
Price :
USD9500-35500/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20sets/month
Delivery Time :
5-60days
Packaging Details :
40GP/20GP container
Name :
Light Steel Keel Tee Bar T-Grid Ceiling Roll Forming Machine Manufacturer
Rolling thickness :
0.3-0.8mm
Main motor power :
5.5kw
Control system :
PLC
Tile Type :
Steel
Power :
380V 50Hz
Production Capacity :
25-30m/min
Key Selling Points :
High productivity
Description
Tee Bar T Grid Ceiling 0.8mm Light Steel Keel Machine
Professional manufacturer of light steel keel Tee Bar T-Grid ceiling roll forming machines for industrial applications.
Key Product Features
  • Touch screen control system for easy operation and monitoring
  • Superior surface finish quality - preserves galvanized coating and color paint integrity
  • Precise 1:1 profile matching to design specifications
  • Robust mechanical construction for durability and minimal maintenance
  • Low material waste rate for cost-effective production
Equipment Overview

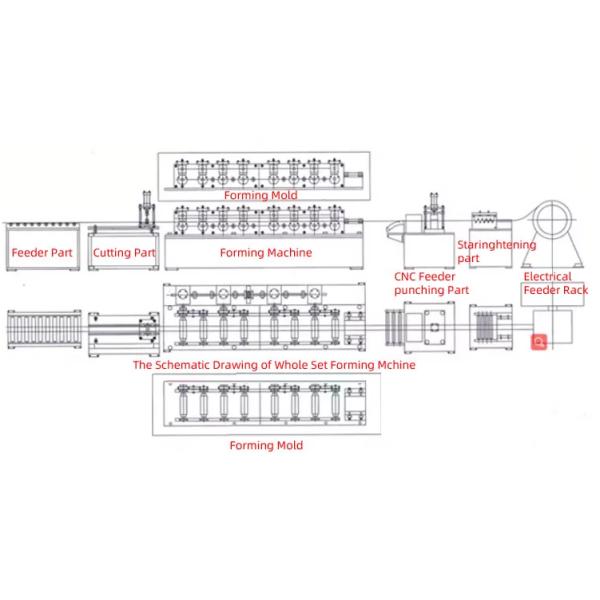

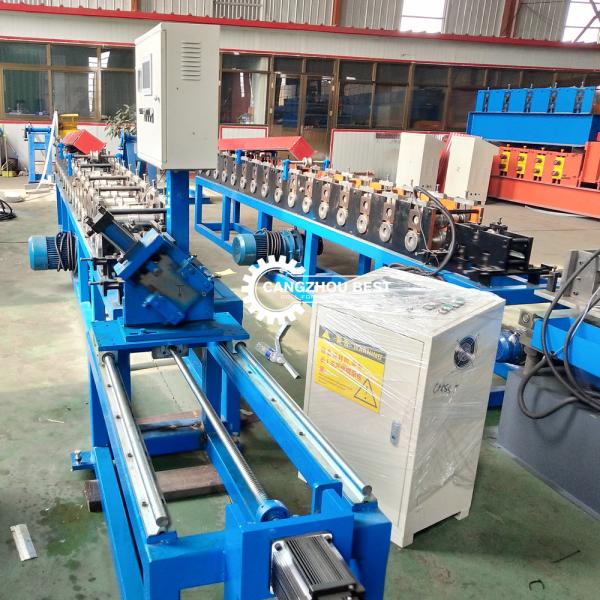

This advanced roll forming equipment is designed for producing various steel profiles including door frames, window rail supports, storage racks, drawer sliders, light steel keels, pipes, and highway guardrails. The complete production line integrates a material feeding rack, main forming machine, and hydraulic precision punching-cutting system with zero material waste technology.
Main Tee Production
Equipped with inverter motor technology achieving production speeds of 30 meters per minute. Features hydraulic automatic punching and cutting synchronized with the main forming machine for simultaneous end and middle hole processing.
Cross Tee Production
Utilizes both inverter and servo motor systems maintaining 30 meters per minute production speed. Includes servo tracking system for automatic speed synchronization and precision cutting operations.
Technical Specifications
Component Specifications
Manual Decoiler Material coil inner diameter: 450mm-550mm | Max coil width: 300mm | Carrying capacity: 1.5T
Forming Device Shaft material: No.45 steel | Roller material: Cr12 chrome coated | Forming speed: 30m/min | Main motor power: 5.5 kw | Roller stations: 10-12 | Voltage: 380v, 50Hz, 3 phase
Hydraulic Cutter Blade material: Cr12 mould steel | Cutting system: Advanced hydraulic drive | Automatic cutting after forming with no distortion or material waste
Control System Type: PLC Frequency Control System with touch screen | Length Error: ±2mm | Customizable electrical components
Output Table Simple design for finished product loading | Length: 6m
System Components
No Name Unit Qty Details
1 Manual Decoiler set 2 Max width 300mm | Inner diameter 460-510mm | Max loading capacity 1000kg | Manual expansion operation | Safety brake system
2 Feeding Table set 1 Material feeding system
3 Forming Rollers set 1 16 forming stations | Cr12 roller material | HRC 58-60 hardness | 40mm diameter shafts | 40Cr shaft material | 25mm thick sidewalls | 5.5kw motor with frequency inverter
4 Hydraulic Cutting with Hole Punching set 1 Taiwanese hydraulic components | 2 edge cutting sets | 23 middle joint hole punching sets | Japanese SKD-11 steel molds | Advanced NC wire cutting treatment
5 Profile Discharger set 1 Fully automatic mechanical drive | Synchronized with forming machine operation
6 Electric Control System set 1 Taiwanese frequency converter | Fatek PLC | Weinview touch screen | Profile length cutting with machine stop function | Emergency stop controls | 380V 50Hz 3-phase power
Why Choose Our Equipment
  • Custom roll forming machine design and manufacturing capabilities
  • Over 20 years of industry experience and technical expertise
  • Optimal balance of quality and competitive pricing
  • Precise measurement systems and user-friendly operation
  • Comprehensive technical support including installation, debugging, and maintenance services
  • Global export experience with established reputation for reliability
Contact us for detailed specifications, pricing information, and full machine operation video demonstration.
