SGS 8.5kw Steel Forming Machine Speed 8-12m/Min
SGS 8.5kw Steel Forming Machine Speed 8-12m/Min
SGS 8.5kw Steel Forming Machine Speed 8-12m/Min
SGS 8.5kw Steel Forming Machine Speed 8-12m/Min
Specifications
Brand Name :
CBEST
Model Number :
YX988
Certification :
CE/BV/SGS
Place of Origin :
HEBEI CHINA
MOQ :
1set
Price :
USD 12000 / SET
Supply Ability :
15sets/month
Delivery Time :
35days
Packaging Details :
naked
Name :
Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine
Machine color :
as request
Payment type :
T/T LC
Speed :
8-12m/min
Roller material :
45#steel
Shaft material :
45#steel
Power :
8.5kw
Description
SGS 8.5kw Steel Forming Machine Speed 8-12m/Min
Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine
Our steel roof panel forming machines are engineered to produce various shapes of steel roof and wall sheets according to client specifications and profile drawings. These versatile building materials are available in multiple thicknesses and colors, ideal for applications in gymnasiums, airports, theaters, factories, warehouses, garages, exhibition centers, and other commercial structures.
SGS 8.5kw Steel Forming Machine Speed 8-12m/Min
Technical Specifications
Component Model/Name Quantity Technical Description
1. Decoiler System Arm type automatic decoiler (With ultrasonic control) 1 set Arm-type, hydraulic expanding, electrical motor actively releases sheet, includes coil cart and pressing arm
2. Main Forming System Pre-shearing device 1 set
  • Roller material: No.45 steel with surface hard chrome painted
  • Roller shaft material: No.45 steel
  • Roller inner supporting structure: guide column
  • Cycloidal pin gear speed reducer motor driving
  • Cutting blade material: Cr12 quenched treatment
  • Punching die material: No.45 steel with nitride treatment
Feeding guide device 1 set
Film covering device 1 set
Roll forming system 1 set
Pressing system 2 sets
Post-cutting device 1 set
Complete safety cover 1 set
3. Output System Support table 2 sets For supporting the finished plate
4. Hydraulic System Hydraulic station 1 set Separated hydraulic station for main machine and decoiler
5. Electric Control System Control system 1 set
  • PLC Control with encoder automatic cutting in length
  • Operation stage: Touch screen + button
  • AC frequency for speed adjustment
Component Details
Decoiler System
5T Manual Decoiler
  • Components: Mandrel and basement
  • Mandrel operation: Mechanical shrinking/expanding manually
  • Power: None required
  • Segment expansion range: 460-520mm
  • Mandrel center height: 0.65m
  • Feeding speed: Synchronized with roll forming machine
SGS 8.5kw Steel Forming Machine Speed 8-12m/Min
Roll Forming Machine
  • Rollers: Designed with Auto-cad, manufactured from 45# high-grade steel with CNC machining, hard chrome coated
  • Shaft: 45# high-grade steel, CNC machined
  • Supporting frame: Steel wallboard with guide column bearing basement
  • Roller stations: Up to 18 groups
  • Shaft diameter: 70mm
  • Frame panel thickness: 14mm
  • Bottom frame: 36# H-section steel

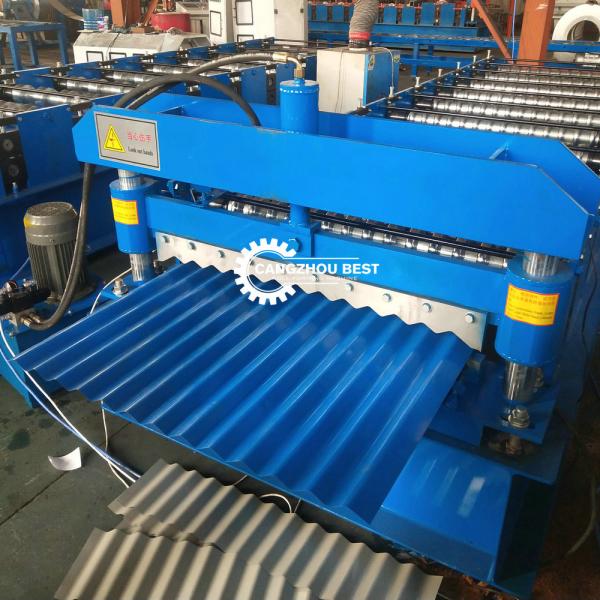

Cutter Device
  • Function: PLC-controlled cutting with automatic machine stop/start
  • Power supply: Hydraulic station
  • Frame: Welded steel construction
  • Stroke switch: Non-contact photoelectric switch
  • Cutting method: Post-forming cutting to required length
  • Length measuring: Automatic system
Hydraulic System
  • Operation: Gear wheel oil pump controlled
  • Components: Hydraulic tank, oil pump, hydraulic pipes, electromagnetism valves
  • Quality: Top brand components for stability and longevity
  • Efficiency: Power-saving operation with automatic shut-off
Electric Control System
  • Length measurement: Automatic with length measuring tooling
  • Quantity measurement: Automatic counting system
  • Control: PLC for length and quantity control
  • Interface: Button-type switches with LED display
  • Protection: Motor over-load, system over-current, short circuit protection
  • Display: Total length and quantity production data
Machine Gallery
SGS 8.5kw Steel Forming Machine Speed 8-12m/Min SGS 8.5kw Steel Forming Machine Speed 8-12m/Min
Production Process Flow
SGS 8.5kw Steel Forming Machine Speed 8-12m/Min
Manufacturing Facility
SGS 8.5kw Steel Forming Machine Speed 8-12m/Min
Frequently Asked Questions
How to request an accurate quotation?
  • We provide accurate quotations based on drawing profiles - please share your specifications
  • Machine design variations (frame type, PLC brand, motor brand) affect pricing
Payment Terms
  • 30% T/T deposit, balance payment before shipping after inspection
  • We accept L/C, O/A, and D/P payment methods
After-Sales Service
  • 24-month warranty period
  • Free replacement of broken parts (customer covers express costs)
  • Lifetime technical support for the roll forming machine
How to Visit Our Company
  • Option A: Fly to Beijing airport, take high-speed train from Beijing Nan to Cangzhou Xi (1 hour), we provide pickup
  • Option B: Fly to Shanghai Airport, take high-speed train from Shanghai Hongqiao to Cangzhou Xi (4.5 hours), we provide pickup
