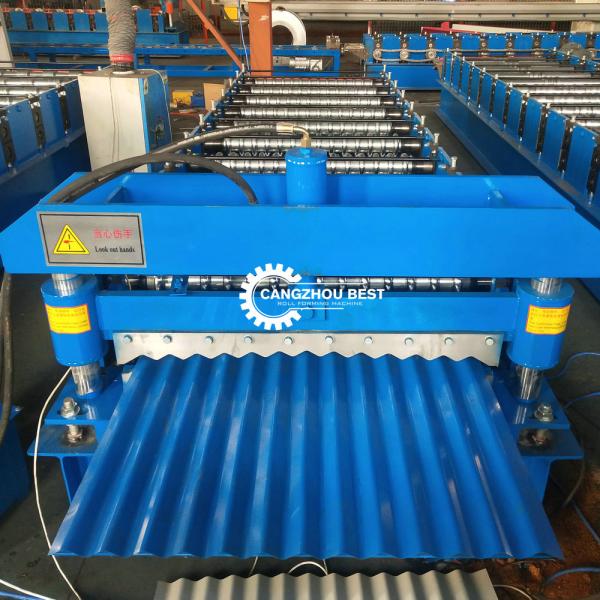

Steel Wave Profile 8m/Min 20mm Corrugated Roll Forming Machine
Steel Wave Profile 8m/Min 20mm Corrugated Roll Forming Machine
Steel Wave Profile 8m/Min 20mm Corrugated Roll Forming Machine
Steel Wave Profile 8m/Min 20mm Corrugated Roll Forming Machine
Steel Wave Profile 8m/Min 20mm Corrugated Roll Forming Machine
Steel Wave Profile 8m/Min 20mm Corrugated Roll Forming Machine
Steel Wave Profile 8m/Min 20mm Corrugated Roll Forming Machine
Steel Wave Profile 8m/Min 20mm Corrugated Roll Forming Machine
Specifications
Brand Name :
CHBEST
Model Number :
YX-1041
Certification :
CE BV SGS
Place of Origin :
China
MOQ :
1set/month
Price :
USD6500-25500/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
20sets/month
Delivery Time :
5-60days
Packaging Details :
20GP/40GP container
Name :
Steel Wave Profile Corrugated Roofing Sheet Panel Roll Forming Machine Line
Roller material :
Hydraulic cutting
Type :
Roll Forming Machine
Cutting blade material :
Cr12
Delivery time :
25-30 Days
Shaft material :
45# steel, quenched
Control System :
PLC
Advantage :
high speed, low energy consumption
Speed :
8-12m/min
Side panel :
20mm
Description
Steel Wave Profile 8m/Min 20mm Corrugated Roll Forming Machine
Steel Wave Profile Corrugated Roofing Sheet Panel Roll Forming Machine Line
Key Advantages
  • Processes galvanized steel thickness 0.2-0.8mm, with customizable coil widths including 1250mm, 1200mm, and 1000mm
  • Popular corrugated design used worldwide for roofing and wall applications
  • Stable, long-term operation for high-volume production with working speed of 10-15m/min
  • PLC-controlled automation for length and piece settings, requiring only 1-2 operators
  • Daily maintenance includes cleaning and oiling for optimal 8-hour operation
Technical Specifications
ItemSpecification
Processing MaterialColor steel/galvanized aluminum/galvanized
Processing Thickness0.4-0.7mm
Main Motor Power4KW with Cycloidal reducer
Hydraulic Station Power4kw
Hydraulic Oil36#
Diameter of Principal AxisΦ70mm
Material Expand Width780mm
Galvanization Thickness0.05mm
Processing Precisionwithin 1.00mm
TransmissionSprocket & Chain (1inch)
Roller Station14 Rollers
Cutting TypeHydraulic cutting type
Machine Components
ItemUnitQuantity
Manual Decoilerset1
Molding Coreset1
PLC Control Boxset1
Hydraulic Pumpset1
Exit Rackset1
Cutting Systemset1
Warranty & Service
12 Months guarantee. We supply replacement parts for manufacturing defects. For operator error damage, buyer pays shipping fees.
After-Sales Service
We provide technical support with technician dispatch to your country. Buyer covers all associated costs including visa, roundtrip tickets, accommodation, and daily salary.
Packaging & Support
  • Nude packaging with waterproof cloth and stow-wood protection
  • 18-month free maintenance period
  • Free installation and debugging for domestic use; international installations require buyer to cover technician travel expenses
  • Lifetime maintenance for all machine parts (buyer covers express costs after 18 months)
  • Includes instructional CD and specifications in Chinese and English
Custom Manufacturing
We can produce according to your specific requirements.
