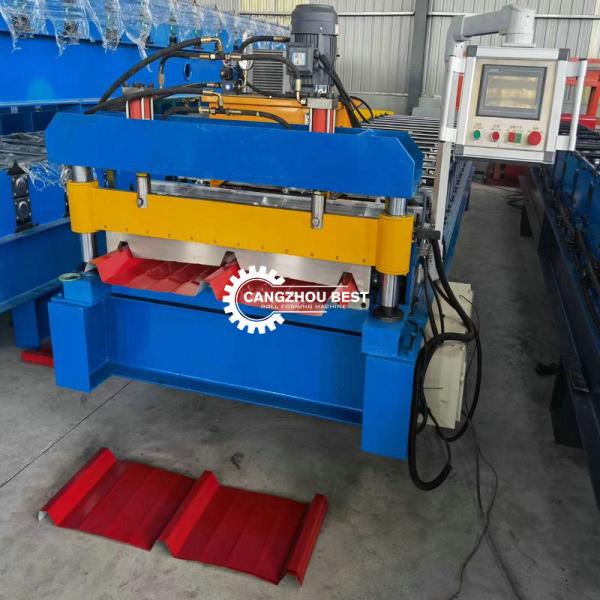

PLC Three Peaks Steel Panel Roll Forming Machine Color Coated Sheet Making Machine
PLC Three Peaks Steel Panel Roll Forming Machine Color Coated Sheet Making Machine
PLC Three Peaks Steel Panel Roll Forming Machine Color Coated Sheet Making Machine
PLC Three Peaks Steel Panel Roll Forming Machine Color Coated Sheet Making Machine
PLC Three Peaks Steel Panel Roll Forming Machine Color Coated Sheet Making Machine
PLC Three Peaks Steel Panel Roll Forming Machine Color Coated Sheet Making Machine
PLC Three Peaks Steel Panel Roll Forming Machine Color Coated Sheet Making Machine
PLC Three Peaks Steel Panel Roll Forming Machine Color Coated Sheet Making Machine
Specifications
Brand Name :
CHBEST
Model Number :
CHBEST-600
Certification :
CE/ISO
Place of Origin :
China.Hebei
MOQ :
1set
Price :
USD+8000+SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
15sets/month
Delivery Time :
35days
Packaging Details :
Standard
Name :
Steel Profile Color Roofing Sheet Three Peaks Panel Roll Forming Machine
Material :
PPGI/GI
Color :
As your require
Shaft Material :
45# steel
Conreol System :
PLC
Warranty :
2 year
Description

Steel Profile Color Roofing Sheet Three Peaks Panel Roll Forming Machine​

Main Parameter

Name Model/Name Quantity Technical Description
1. Decoiler system Arm type automatic decoiler (With ultrasonice control) 1set Arm-type, hydraulic expanding, electrical motor actively release the sheet, with coil cart and pressing arm.
2. Main forming system Pre-shearing device 1set

1.Roller material:No.45 steel with surface hard chrome painted.

2. Roller shaft material: No.45

3. Roller inner supporting structure type: guide column

4.Cycloidal pin gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear

5.Cutting blade material Cr12 quenched treatment

6.Punching die material adopts No.45 steel with nitride treatment.
Feeding guide device 1set
Film covering device 1set
Roll forming system 1set
Pressing system 2set
Post-cutting device 1set
Complete safety cover 1set
3. Output system Support table 2set For supporting the finished plate
4. Hydraulic system 1set Separated hydraulic station for the main machine and decoiler.
5. Electric control system 1set

1. PLC Control, encoder automatic cutting in length

2. Operation stage: Touch screen+ button

3. AC frequency for adjusting the speed

Specifications:

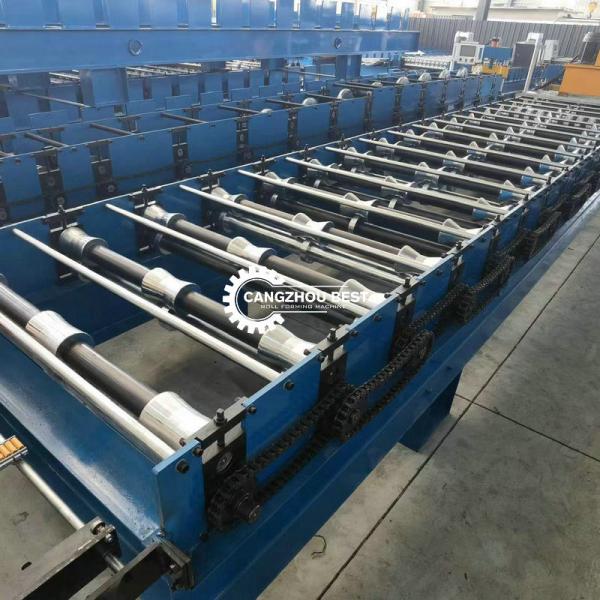

Rollers

High quality rollers will help to produce the beautiful and high quality profile. That will satisfy your customers.

PLC Control System.

Usually we prodvide the Delta PLC control system, but

we can make that according to your need. You need which brand, then we send to you which brand.

But the long life of that will bring you great benefit .

The Cutter.

Our company adopts this advanced technology----we call that "four poles structure hydraulic cutter", which really improve the quality of the whole machine, it cuts accurately, stable, and of course the profile edge is very nice. Recently more and more factories learn from us. But remember that, "Audi will not get the real technology from the Benz even though they said they will make that."

Hydraulic System:

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.

Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.

Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

Output Table

No power type
Length: 2m

Work Flow

Decoiler------feeding------roll forming------cut to length-----output table

Packing Detall

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2. rollers were painted with oil and packed with plastic film.

3. electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.
