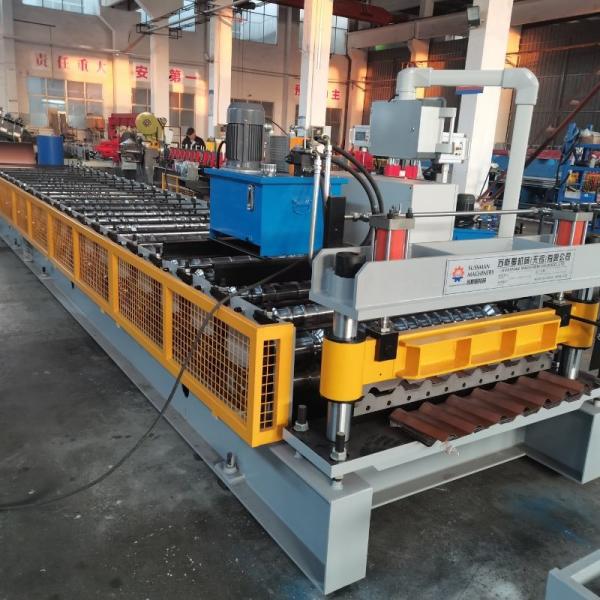

Thickness Calibre 26 Lámina Galvanizada R101 Corrugated Profile Roof Sheet Roll Forming Machine For Construction Projects
Thickness Calibre 26 Lámina Galvanizada R101 Corrugated Profile Roof Sheet Roll Forming Machine For Construction Projects
Thickness Calibre 26 Lámina Galvanizada R101 Corrugated Profile Roof Sheet Roll Forming Machine For Construction Projects
Thickness Calibre 26 Lámina Galvanizada R101 Corrugated Profile Roof Sheet Roll Forming Machine For Construction Projects
Thickness Calibre 26 Lámina Galvanizada R101 Corrugated Profile Roof Sheet Roll Forming Machine For Construction Projects
Thickness Calibre 26 Lámina Galvanizada R101 Corrugated Profile Roof Sheet Roll Forming Machine For Construction Projects
Specifications
Main Motor Power :
7.5kw
Thickness :
Calibre 26
Brand Name :
Sussman
Model Number :
SM-RP
Certification :
CE ISO SGS
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per months
Delivery Time :
65 days after deposit
Packaging Details :
Standard packing
Way Of Drive :
chain
Type :
Lamina R101 Roll Forming Machine
Material :
Galvanized steel, Aluminum
Working Speed :
10-12 meters /minute
Description

Thickness Calibre 26 Mexico Popular Lamina R101 Trapezoidal Roof Sheet Roll Forming Machine


Nuestra Lámina R-101 galvanizada es un acanalado ideal para muros, cubiertas y faldones de naves industriales, bodegas y construcciones en general. Nuestra lámina de acero R-101 tiene excelente relación entre economía y capacidad estructural y capacidad de desagüe.


Technical parameter:

Rolling Speed: 0-10m/min

Feeding width: 1219mm

Steel sheet Thickness: 0.3-0.8mm galvanized sheet

Control System: PLC

Roller Stations: about 24 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching

Motor Power: 7.5kw main motor

Hydraulic power: 4kw

Hydraulic Pressure: 12Mpa

Tolerance: +1.5mm

Power supplier: 220V or 480V

Way Of Drive: chain


Machine List


Machine list 5 tons manual de-coiler 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Safety cover 1 set
Spare parts 1 set



working flow



Profile Drawing


Hiding power 1008 mm. (39.685 PLG)

Camber: 2.46 cm (0.9685 PLG)

materials: Galvanized steel, Color steel, Aluminum.



Application:

  • Industrial and commercial roofing.
  • Residential roofing (where a modern metal look is preferred).
  • Warehouse and factory walls.
