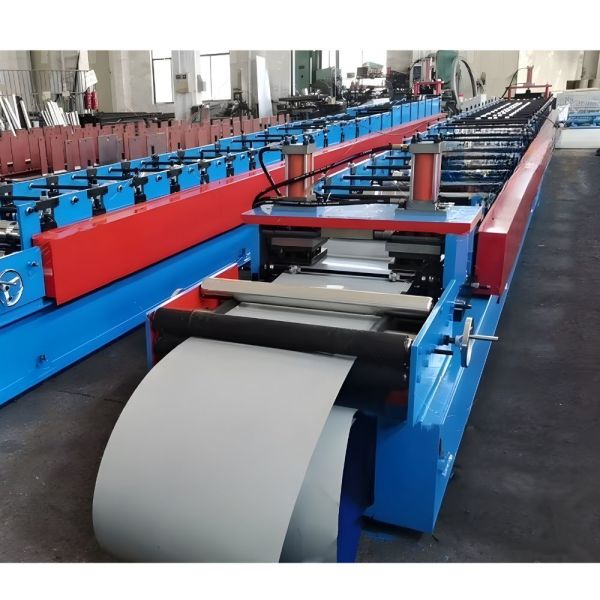

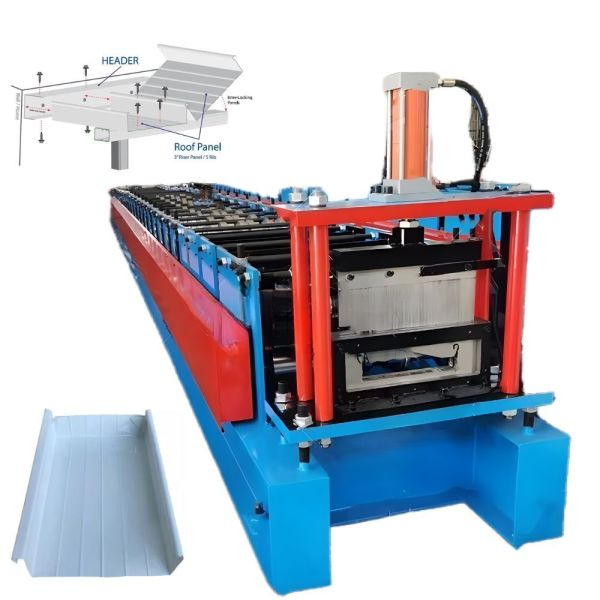

New Aluminum 12 Width Standing Seam Roof Panel Roll Forming Machine 5 Ribs Patio Covers
New Aluminum 12 Width Standing Seam Roof Panel Roll Forming Machine 5 Ribs Patio Covers
New Aluminum 12 Width Standing Seam Roof Panel Roll Forming Machine 5 Ribs Patio Covers
New Aluminum 12 Width Standing Seam Roof Panel Roll Forming Machine 5 Ribs Patio Covers
New Aluminum 12 Width Standing Seam Roof Panel Roll Forming Machine 5 Ribs Patio Covers
New Aluminum 12 Width Standing Seam Roof Panel Roll Forming Machine 5 Ribs Patio Covers
New Aluminum 12 Width Standing Seam Roof Panel Roll Forming Machine 5 Ribs Patio Covers
New Aluminum 12 Width Standing Seam Roof Panel Roll Forming Machine 5 Ribs Patio Covers
Specifications
Brand Name :
Sussman
Model Number :
RF-PU
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 SET
Price :
negotiable
Payment Terms :
TT
Supply Ability :
10 sets/month
Delivery Time :
75 days after deposit
Packaging Details :
Film nad steel
Type :
5 Ribs Patio Covers roll foming machine
Forming station :
about 24 stands
Forming speed :
10m/min
Forming thickness :
0.4-0.8mm
Description

新型铝制12英寸宽5肋露台遮阳棚立缝屋顶板辊压成型机


结构屋面板采用铝材制成,表面光亮.该屋面板可定制尺寸.这款轻质产品安装快捷简便,并符合相关规范.



技术数据:
1.被动式开卷机:5吨
2.主电机功率:5.5kW
3.液压站电机功率:5.5kW
4.成型工位:约22个机架
5.主机尺寸:9.5m×1.2m×1.25m
6.成型速度:10m/min
7.辊轴直径:76mm
8.原材料宽度:610mm
9.辊面镀铬:单面≥0.05mm
10.成型厚度:0.4-0.8mm
11.型材符合GB/T12755-91标准
12.刀片材质:Cr12
13.变频器:安川


机器列表:
3吨被动式开卷机 1套
主辊成型机 1套
液压切割 1套
PLC控制箱 1个单位
水力站 1个单位
4米被动输出表 1个单位
备件 1 包

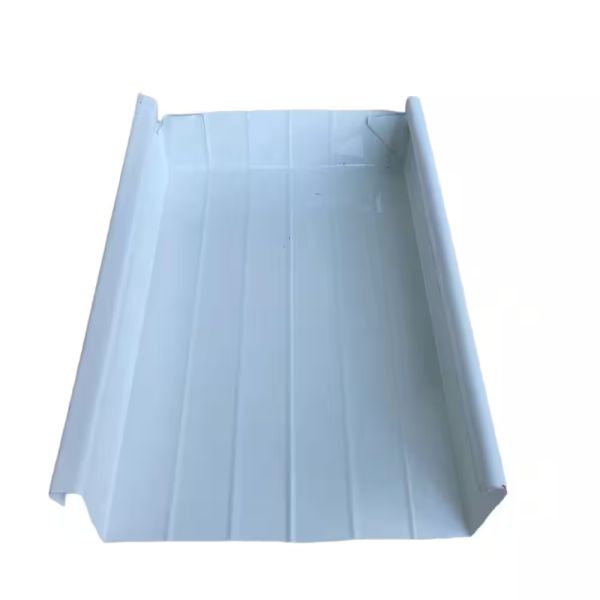

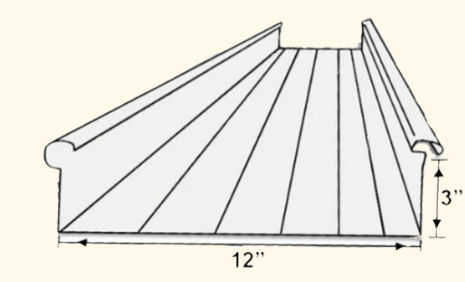

示例图片:

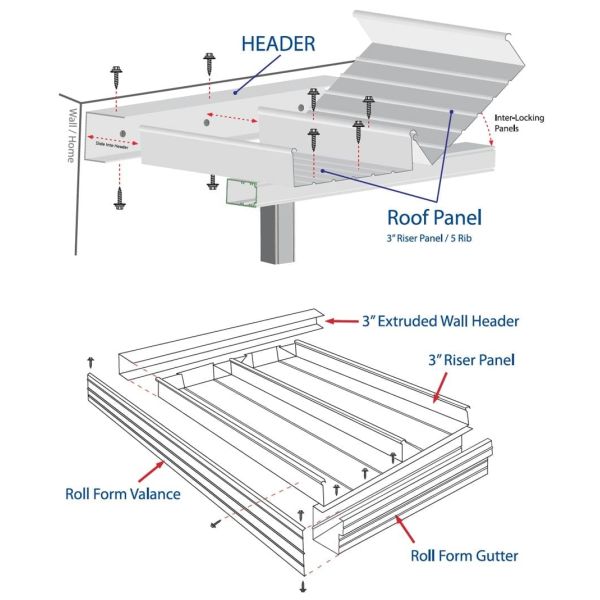

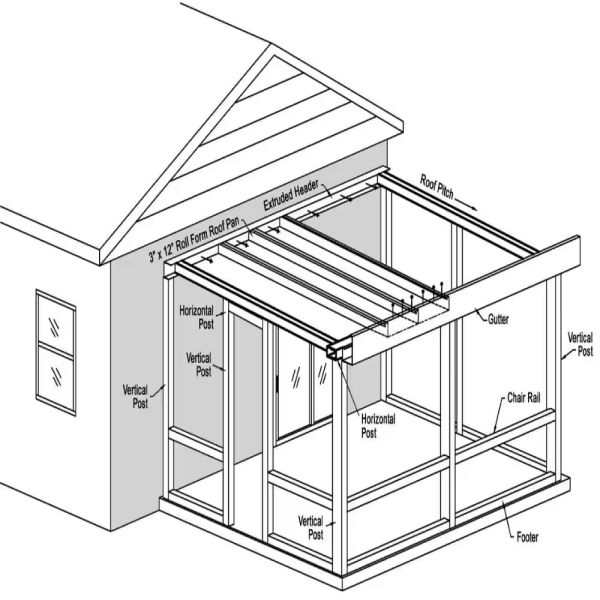

应用:

卷压成型的露台遮阳棚经济实惠,坚固耐用,可保护您和您的家免受恶劣天气和有害紫外线的侵害,同时还能提供阴凉处供您放松休息.
