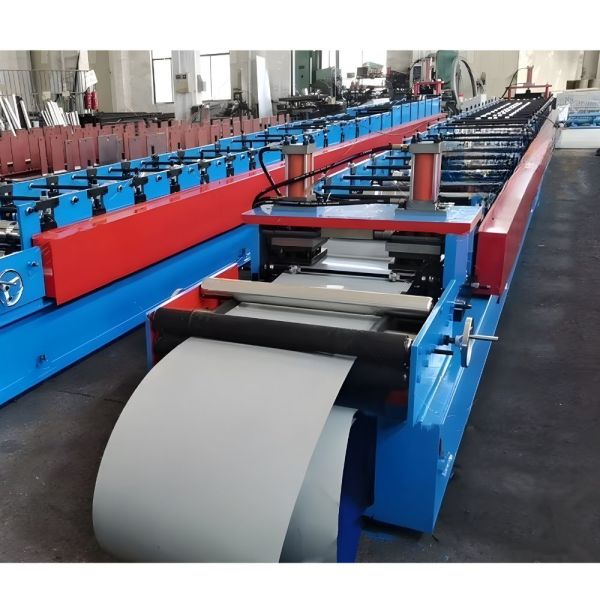

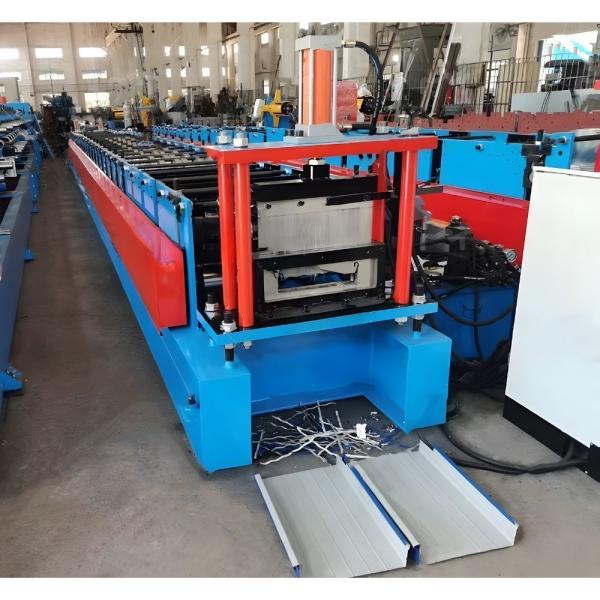

0.8mm Thickness 12 Inches Width Aluminum Standing Seam 5 Ribs Str Roof Panel Roll Forming Machine
0.8mm Thickness 12 Inches Width Aluminum Standing Seam 5 Ribs Str Roof Panel Roll Forming Machine
0.8mm Thickness 12 Inches Width Aluminum Standing Seam 5 Ribs Str Roof Panel Roll Forming Machine
0.8mm Thickness 12 Inches Width Aluminum Standing Seam 5 Ribs Str Roof Panel Roll Forming Machine
0.8mm Thickness 12 Inches Width Aluminum Standing Seam 5 Ribs Str Roof Panel Roll Forming Machine
0.8mm Thickness 12 Inches Width Aluminum Standing Seam 5 Ribs Str Roof Panel Roll Forming Machine
0.8mm Thickness 12 Inches Width Aluminum Standing Seam 5 Ribs Str Roof Panel Roll Forming Machine
0.8mm Thickness 12 Inches Width Aluminum Standing Seam 5 Ribs Str Roof Panel Roll Forming Machine
Specifications
Forming station :
about 24 stands
Type :
5 Ribs Patio Covers roll foming machine
Forming speed :
10m/min
Forming thickness :
0.4-0.8mm
Brand Name :
Sussman
Model Number :
RF-PU
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 SET
Price :
negotiable
Payment Terms :
TT
Supply Ability :
10 sets/month
Delivery Time :
75 days after deposit
Packaging Details :
Plastic Film
Description

0.8mm Thickness 12 Inches Width Aluminum Standing Seam 5 Ribs Str Roof Panel Roll Forming Machine


The Structural Roof Panel is made from aluminum and comes in a glossy finish. The roof panel is available in custom sizes. This lightweight product allows for a quick and easy install and is a code compliant product.



Technical Data:
1.Passive uncoiler 5 ton
2.Main motor power:5.5KW
3.Motor power of hydraulic station:5.5KW
4.Forming station: about 22 stands
5.Main machine size:9.5 m×1.2m×1.25m
6.Forming speed: 10m/min
7.Diameter of roller shaft:¢76mm
8.Raw material width:610mm
9.Roller surface coating with chrome:single face≥0.05mm
10.Forming thickness:0.4-0.8mm
11.profile according to GB/T12755-91 standards
12.material of cutting blade: Cr12
13.frequency: Yaskawa
14. PLC

Machine List:
3 ton passive de-coiler 1 set
Main roll forming machine 1 set
Hydraulic Cutting 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
4 meters passive output table 1 unit
Spare part 1 package


Sample Pictures:

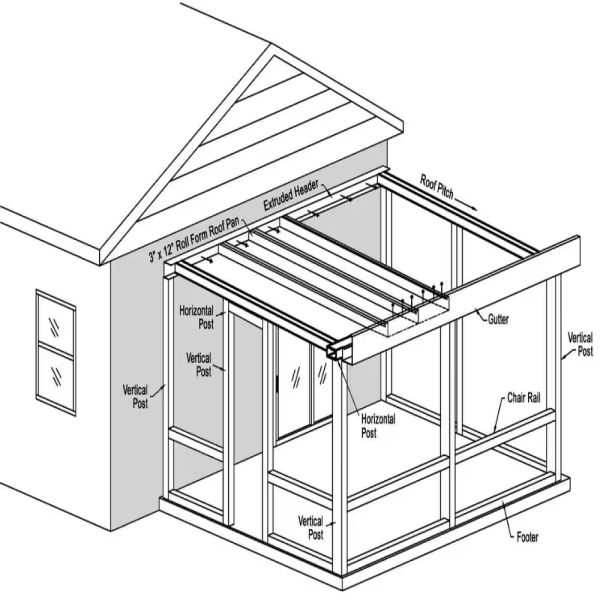

Application:

Roll formed patio covers provide economical, solid shade that protects you and your home from inclement weather and harmful UV rays while also providing shade for relaxing.


Highlights

Self locking for easy installation

Available in white Easy to handle, lightweight

Flexibility of non-insulated or insulated
