0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine
0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine
0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine
0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine
0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine
0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine
0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine
0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-RM
Certification :
SGS, ISO9001, CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 days after deposit
Packaging Details :
Standard packing
Material :
0.42mm BMT G550 Color Steel Galvanized Steel
Forming speed :
8-12m/min
Forming stations :
About 13 stations with embossing
Decoiler :
3 Tons manual one
Roller material :
Gcr15 steel with quenching
Product name :
hat furring channel omega profile top hat batten machine
Machine weight :
3 tons
Profile height :
22mm
Description

0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine

A 22mm ceiling batten is typically a wooden or metal strip used in construction to provide a framework for attaching plasterboard, ceiling panels, or other finishes.

Compotent: 3 tons manual decoiler, hat roll forming machine, hydraulic cutting device, control box system and finished table

Customoized: accept OEM, ODM, we can design the machine as your profile sizes.

Technical parameter

Item

Technical data

Steel sheet thickness

0.42-0.55mm galvanized steel,PPGI,GI

Hydraulic power

4kw

Transmission way

chain

Decoiler

3 Tons passive

Forming Speed

8-12m/min

Roller Groups

about 13 rollers

Roller Material

45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62

Roller Diameter

60mm

Principal Axis

45# high grade steel with quenching treatment

Main Motor Power

5.5 KW

Dimension

About 5.0*0.8*1.4m

Main Components

Machine name Quantity
3T passive uncoiler 1 set
Main roll forming system 1 set
Hydraulic stop cutting system 1 set
4 meters out tables 1 ste
PLC control box system 1 set
Toll box 1 package
Safety cover 1 unit

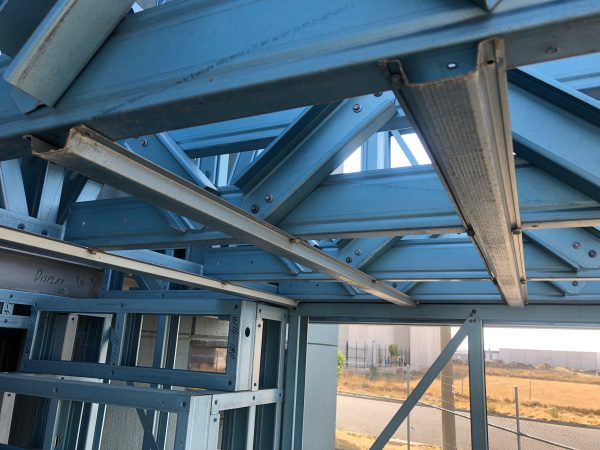

Applications

  1. Fixing Plasterboard/Drywall – Battens create a level surface for attaching sheets.

  2. Suspended Ceilings – Helps in creating a dropped ceiling for insulation, wiring, or lighting.

  3. Strapping Uneven Ceilings – Provides a flat surface if the existing ceiling is uneven.

  4. Insulation & Ventilation – Allows space for insulation or airflow in roof structures.

0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine

0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine

Ceiling Batten / Furring Channel Machine Advantage

1.The roller is solid and electroplated, which will not have rust

2.The material are all national standard.

3.The board is cost iron frame and all milled and polished.

4. Only need one main power wire

5. Two people to operate it

6. Compacted machine to save space

0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine

0.42mm BMT G550 22mm High Color Steel Galvanized Steel Ceiling Batten Roll Forming Machine

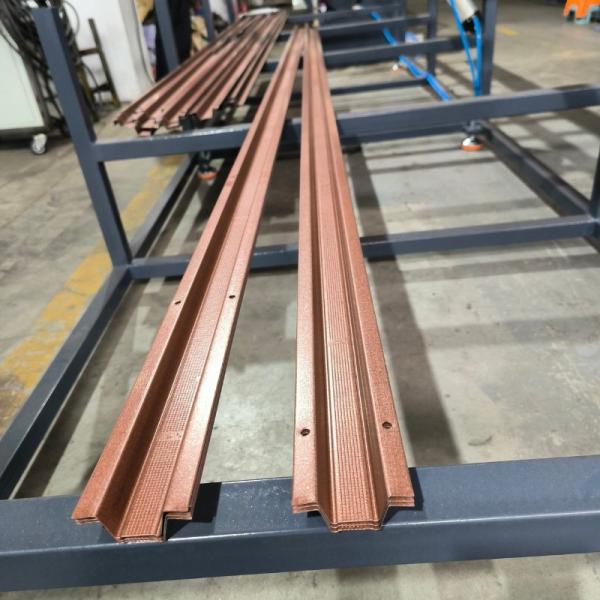

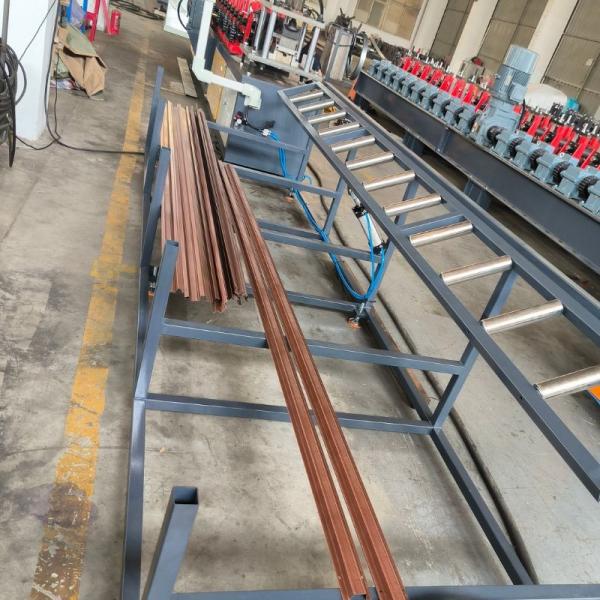

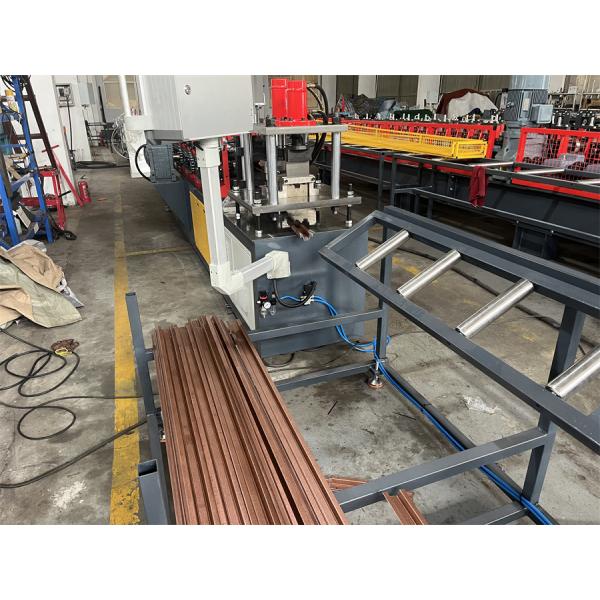

Furring Channel Machine Photo
