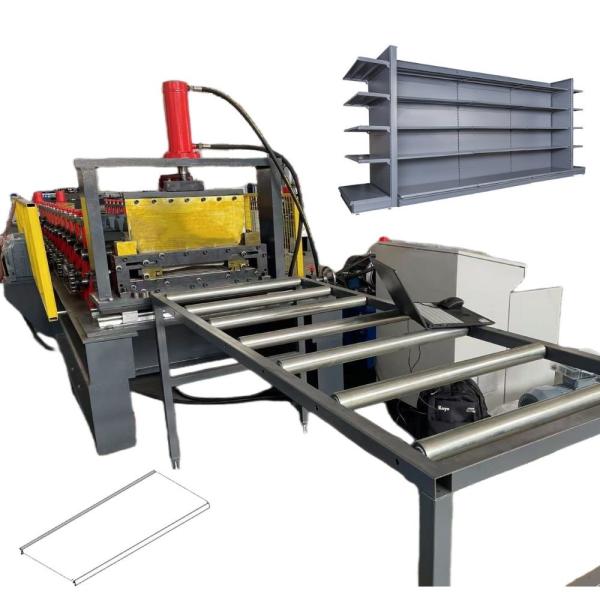

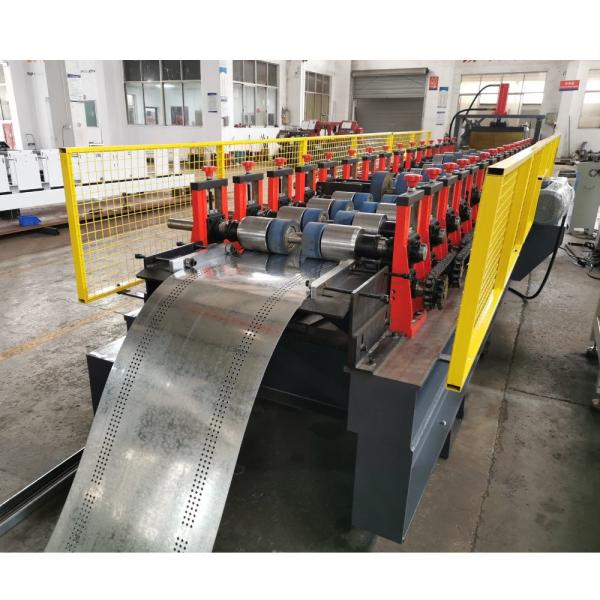

0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
Specifications
Brand Name :
SUSSMAN
Model Number :
SS-RS
Certification :
CE.SGS.ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD65000-85000 Per Set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
Shipped in 90 days after payment
Packaging Details :
Standard package with film, plastic and steel wire. (or customized)
Type :
Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
Working Speed :
2-3 meters/minute
Width :
200-550mm
Cutting :
Hydraulic Cutting
Description

0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine

Warehouse shelf upright system roll forming machine is widely used to produce upright post, shelf panel, back panel/ board, box beam and step beam machine, beam welding machine.

The machine can do thickness is from 0.7-1.2mm with raw material Cold-rolled Steel, Galvanized Coil, Carbon steel.

The shelf box machine is together with the top hat machine to make the shelf box for the supermarket shelf. Sussman Shelf box machine is included the de-coiler, the hydraulic punching device, the main roll forming machine, and the hydraulic cutting device.

The shelf box machine can make width from 100-600mm, also can do 200-900mm. It is the good choice for the supermarket shelf business.

Our produced profile meet ISO, CE, UL standards, and our machine is applied to Warehouse supermarket ,industry or home.

We have experience of exporting our pallet racking system roll forming machine to Mexico, Bangladesh, Costa Rica, Russia,Dominica, etc.

Technical Data:

1. Materials to form: material thickness 0.6-0.8mm galvanized steel

2. Forming steps: About 26-28 steps rubbers roller

3. Material of rollers:GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞￠150

4. Material of main shaft : 45# high quality steel (diameter＞￠50), driven by chain

5. Chains’ material: 45# steel, high frequency quenching

6. Cutting: Hydraulic cutting; quenching HRC58-62

7. Electronic control: PLC control

8. Dimension of machine: About 9000mmX900mmX1000mm

10. Drive system: Chain drive

11. Motor: 7.5 KW motor power

12. Weight: About 8 Tons

13. PLC: Delta, touch screen: Delta

14. Electric parts: Schneider brand, encoder: Omron

Machine List:
name
quantity (set)
5 ton electrical De-coiler
1 set
Servo feeder
1 set
Hydraulic punching device
1 set
Hydraulic cutting&bending machine
1 set
Main roll forming machine
1 set
Run out table
2 sets
Control box
2 sets
Working Flow:
De-coiler—→Level device —→Servo feeding—→ Hydraulic punching notch—→Punching press —→Main roll forming machine—→Hydraulic cutting—→Bending—→ Run out table
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
Profile Drawing:
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
Sample pictures:
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine
0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine

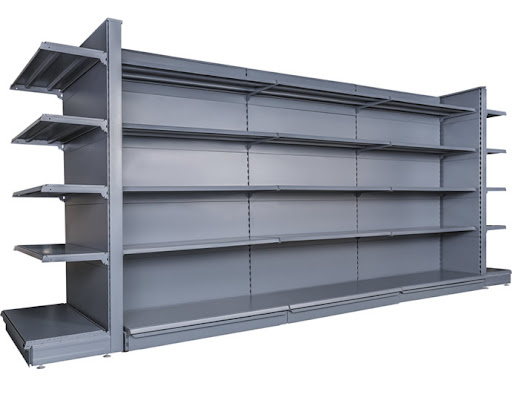

Application:

0.7-1.2mm Thickness 250-550mm Width Adjustable Tegometal Supermarket Shelving Shelf Panel Roll Forming Machine

Main Features

1) Easy in installation and maintenance.

2) Hardened structural steel and components provide long life and safe operational stability.

3) Adopting advanced world famous brand components in controlling parts, electric parts and operation parts.

4) Running in an automation, high durability and stability.

5) Compact design, meet custom demands.
