Width Adjustable 63mm-75mm-89mm-140mm Multi Sizes Light Gauge Steel Framing Machine For Prefabricated House Building

1.Main Specifications

Picture Shares:

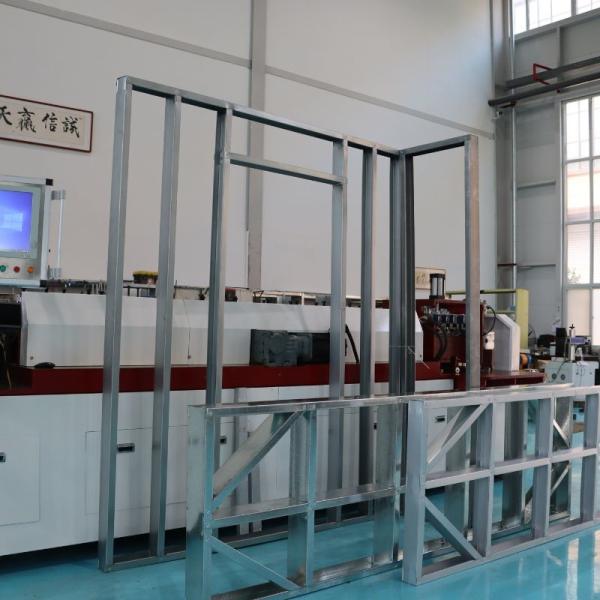

Advantages of Steel Frame Applications:

• Strength and Durability: Steel frames provide exceptional load-bearing capacity and resistance to external forces, such as wind, seismic activity, and heavy loads.
• Speed of Construction: Steel frames can be prefabricated off-site and assembled quickly on-site, reducing construction time.
• Flexibility in Design: Steel's flexibility allows for creative architectural designs and the ability to modify structures later if needed.
• Sustainability: Steel is recyclable, making it an environmentally friendly option for construction projects.
• Fire Resistance: Steel frames offer high resistance to fire, making them ideal for structures where fire safety is a priority.

Steel frames are essential in various industries for building safe, long-lasting, and versatile structures that meet the demands of modern construction.

2: Working Process Flow of the omega profile forming machine

Uncoiling-Coil feeding-Guiding-Roll Forming-Punching (if needed) - Cutting-Collection table

3: Technical Parameters:

A: Power supply:

380V, 3 phases, 50 Hz (can be adjusted according to actual power supply conditions in different countries)

Main motor power: 7.5KW

Pump power: 5.5kw

B:Uncoiler:

Inner diameter: 460-520mm

Outer diameter: 1300mm
loading weight: 2T

B:Forming part:

Feeding thickness: 0.6-1.2mm

Feeding width: 50-500mm

Forming speed: 8-12m/min

Cutting Deviation: 10m±2mm

No. of Roller station: 12 groups

Roller material: GCr15

Material of shaft: Cr40

Diameter of shaft: 42mm

Hydraulic pressure: 10-12 Mpa

Cutter material: SKD11

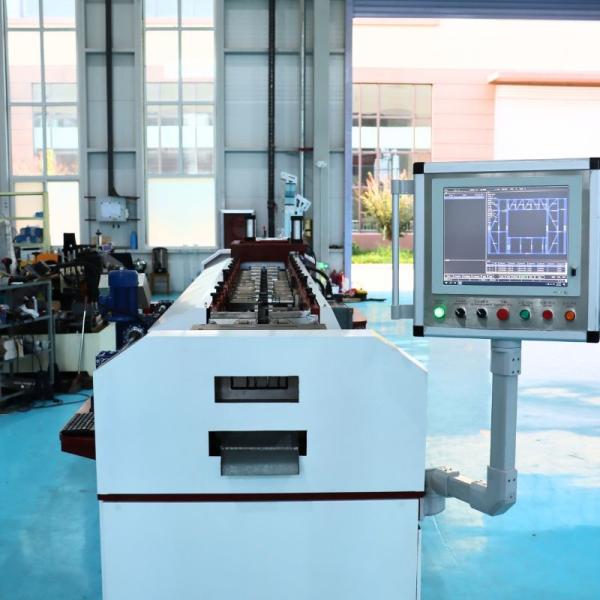

Full-automatic NC-PLC control system

Control channel: Colored touch screen

=

=
