0.75-1.0mm Thickness Color Steel Storage Racking Shelf Panel Roll Forming Machine
0.75-1.0mm Thickness Color Steel Storage Racking Shelf Panel Roll Forming Machine
0.75-1.0mm Thickness Color Steel Storage Racking Shelf Panel Roll Forming Machine
0.75-1.0mm Thickness Color Steel Storage Racking Shelf Panel Roll Forming Machine
0.75-1.0mm Thickness Color Steel Storage Racking Shelf Panel Roll Forming Machine
0.75-1.0mm Thickness Color Steel Storage Racking Shelf Panel Roll Forming Machine
0.75-1.0mm Thickness Color Steel Storage Racking Shelf Panel Roll Forming Machine
0.75-1.0mm Thickness Color Steel Storage Racking Shelf Panel Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-RS
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotiable
Supply Ability :
30 set per month
Delivery Time :
75 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Dirve system :
Chain drive
Forming stations :
16 stations
Material :
Galvanized steel
material thickness :
0.75-1.0mm
power supply :
220V, 60Hz, 3Phase
Payment Terms :
L/C,T/T
Forming speed :
3-5m/min
Description

0.75-1.0mm Thickness Color Steel Storage Racking Shelf Panel Roll Forming Machine


Rack Shelf Machine Parameters


1. Suitable raw material: 0.75-1.0mm galvanized coil S235JR
2. Material width:300mm - 610mm
3. Forming stations: 16 stations
4. Material of Roller: Gcr15, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞150
5. Material of Main Shaft: 45# high quality steel (diameter＞50)
6. Driven system: Chain Driven 1.5 inches
7. Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13
8. Cutting: Hydraulic Cutting Cr12mov
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 5.5KW
11. Control system:PLC with touch screen


Rack Shelf Machine Components


Main Components
De-coiler
1 set
Leveling device
1 set
Roll forming machine
1 set
Punching device
1 set
Hydraulic cutting and bending device
1 set
Hydraulic station
1 set
PLC control box
1 set
Safety cover
1 set
Ran out table
2 sets
Control panel
1 set



Shelf back panel Application


Shelf box panel is commonly used in the manufacturing of shelves for storage systems, such as warehouse racking and retail displays, convenience stores, grocery stores and supermarkets, liquor stores, pharmacy stores, sports nutrition and vitamin stores, hardware stores, discount stores, pet stores, party stores and more.

The panel can be customized in terms of size, thickness, and material composition to meet specific requirements.

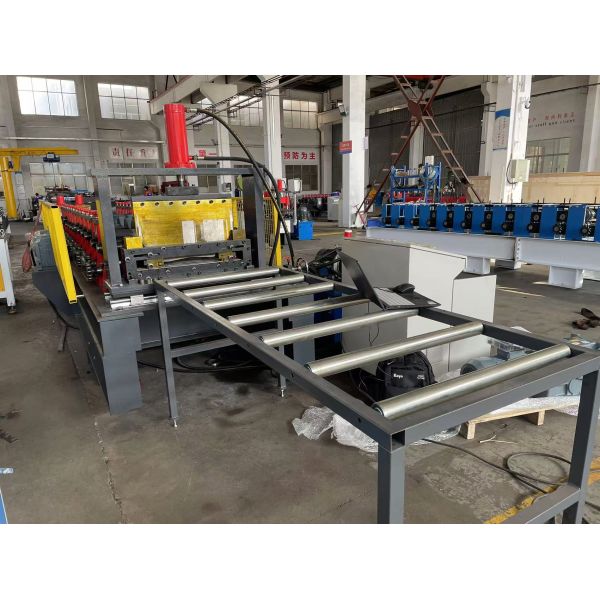

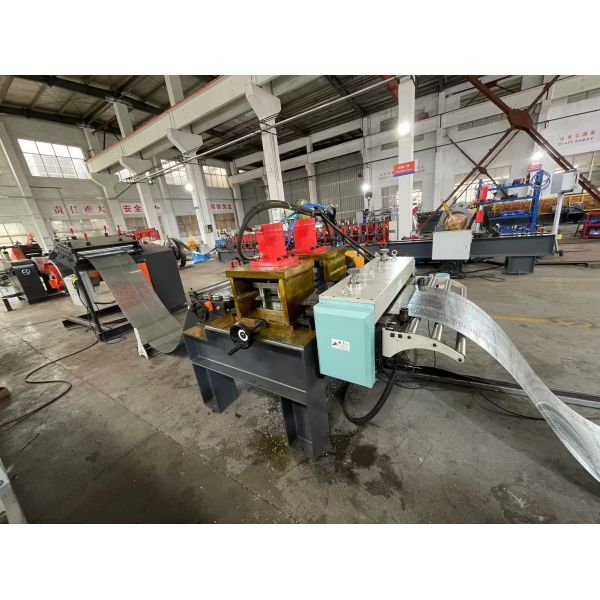

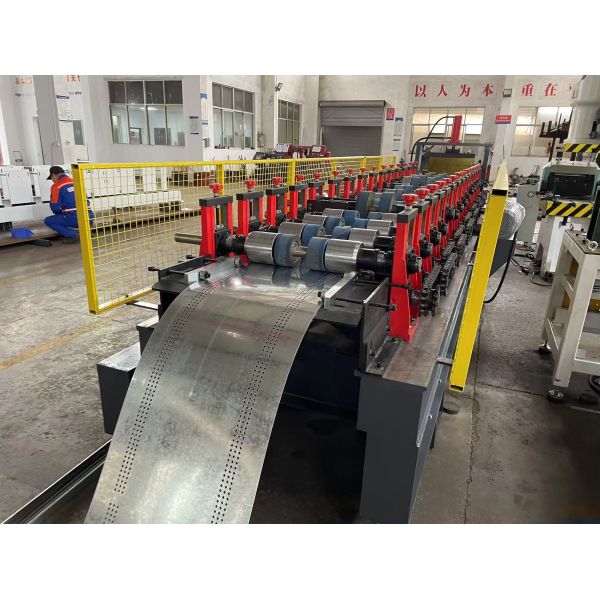

Shelf back panel machine photo




Our Company


Sussman Machinery Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile of roll forming machine.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine,Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit,Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron andsteel production enterprises' growing demands.

Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
