Specifications
Brand Name :
Sussman
Model Number :
RF-PU
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 SET
Price :
negotiable
Payment Terms :
TT
Supply Ability :
10 sets/month
Delivery Time :
50 days after deposit
Packaging Details :
Film nad steel
Type :
Clip Lock Standing Seam Roll Forming Machine
Forming station :
about 20 stands
Forming speed :
10m/min
Forming thickness :
0.3-0.8mm
Description

Malaysia Popular Clip Lock 700 730 410 Standing Seam Roll Forming Machine

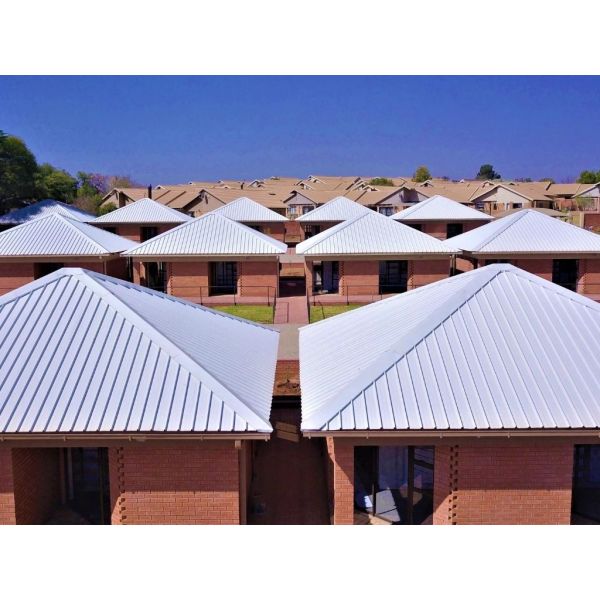

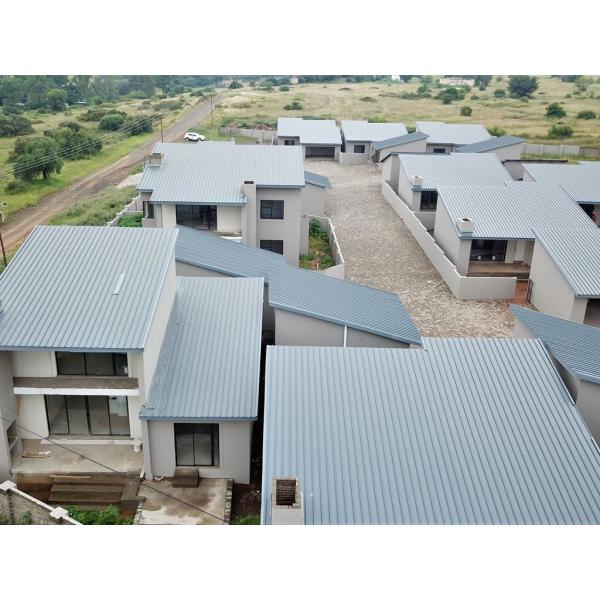

Klip Lok roofing is a strong and durable long length roof (or wall) cladding. As the name suggests, Klip Lok is secured with concealed fasteners and fixed clips. This allows the sheets to be secured without being punctured. This cladding is ideal for low pitched and flat roofs as well as vertical and horizontal ribbed walling. As there are no exposed fasteners, your roof will have a smooth, clean look. Klip Lok roofs are ideal for anyone looking for an easy to install material that is cost-effective.

Technical Data:

Rolling Speed : 10-12m/min(cutting time is not include)

Steel sheet Thickness: 0.3-0.7mm color painted sheets

Coil width 914mm, effective width 720mm

Control System: PLC Delta

Roller Stations: about 20 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ￠70mm,material is 45# forge steel, Chrome with quenching

Main Motor Power: 7.5kw

Hydraulic Pressure: 12Mpa

Material Of The Stations: Wall plate thickness 16mm

Tolerance: +1.5mm

Power supplier: 380V, 50HZ,3 phases

Way Of Drive:1 inch single chain

Color Of The Machine :customer’s need)

The size of the forming machine:7000*1500*1000mm

Machine weight: about 7 tons

Machine List:

5 tons passive de-coiler 1 set
Main roll forming machine 1 set
Control box 1 unit
Hydraulic stop cutting 1 unit
Passive output tables 2 units
Spare part 1 package
Safety cover 1 unit

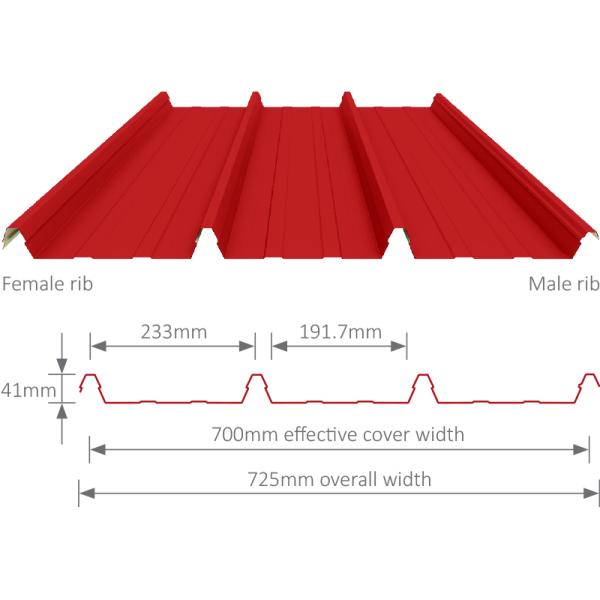

Profile Drawing:

Malaysia Popular Clip Lock 700 730 410 Standing Seam Roll Forming Machine

Malaysia Popular Clip Lock 700 730 410 Standing Seam Roll Forming Machine

Application:

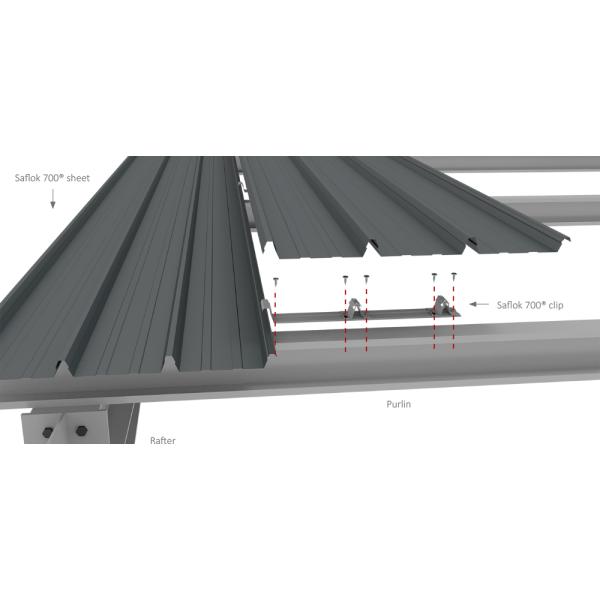

1, Stiffener ribs on baseplate add formidable strength, specifically over the goose-neck;

2, Full width engagement on the goose-neck male joint;

3, 5 fastening points for stability, particularly over blanket insulation;

4, Engineer-designed geometry of anchor unit f or optimal performance under high wind loads and foot traffic;

5, Entire clip is manufactured from Aluminium – Zinc coated steel for compatibility with sheeting.

Malaysia Popular Clip Lock 700 730 410 Standing Seam Roll Forming Machine

Malaysia Popular Clip Lock 700 730 410 Standing Seam Roll Forming Machine

Malaysia Popular Clip Lock 700 730 410 Standing Seam Roll Forming Machine
