CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine
CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine
CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine
CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine
CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine
CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine
CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine
CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine
Specifications
Brand Name :
Sussman
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
5 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Type :
C89 C152 C305 light steel framing machine
Working Speed :
12-15 meters /minute
Motor Power :
11KW
Material :
0.8-2.0mm
Description

CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine

Light steel framing machines use roll-formed steel to create metal frames and floor joists. The process involves feeding steel coils into the machine, which then shapes and cuts the steel into the desired sizes and profiles. These machines can produce frames and joists in multiple sizes, making them suitable for a wide range of construction projects. This machine is made for our Canadian customer, 0.8-2.0mm thickness, C89 C152, C305 in one machine.

Main Specifications

Size 89*41mm,152*41mm, 305*41mm
Thickness 0.75-2.5mm(G300-G550Galvanzied coils and Aluzinc )
Standard Producing speed 300-700m/h
Max producing speed 1500m/h
Main motor 15kw Servo motor
Power supplier 380V 50Hz 3phases according to your request
Hydraulic station 7.5kw Motor
Hydraulic tank capacity 100L
Hydraulic cooling Fan cooling with Accumulator
Hydraulic pressure Manually set
Host cordless remote control Standard
Frame and punching dies Web Notch,Screw hole, chamfer, flange cut, Service Hole, suspension, cutting, floor joists
Product accuracy+- 0.5mm
CNC inkjet-printer HP inkjet printer
Size 9000*1000*1200mm
Weight 8000kg
Color According to your request
De-colier 3 Tons electric decoiler with leveling device

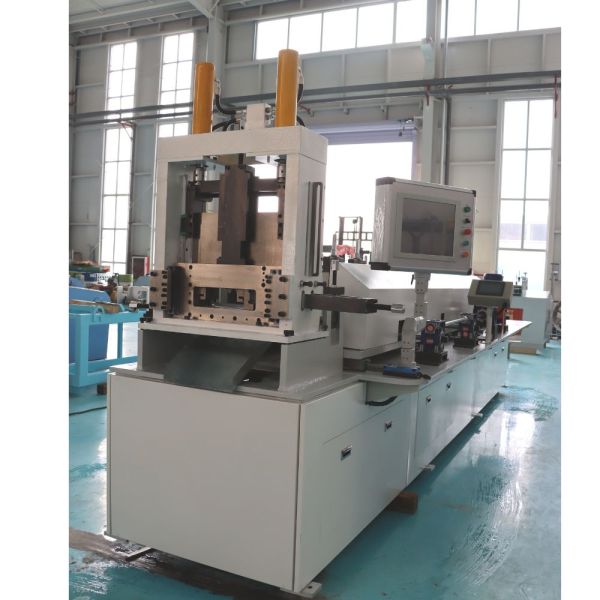

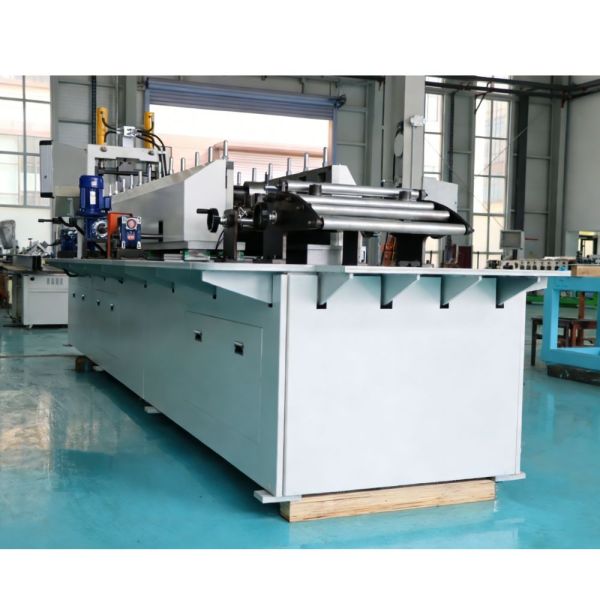

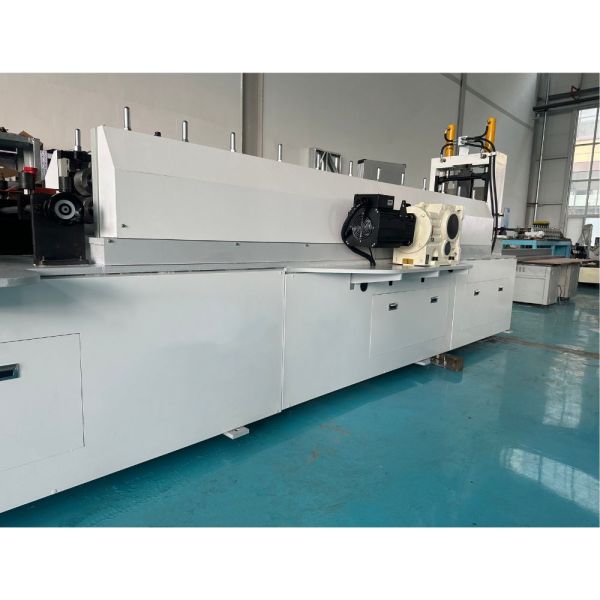

Our machine photo

CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine

CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine

CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine

Application:

CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine

CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine

Softwares:

CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine

CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine

CE Certificate Fully Automatic Villa House Metal Building Structure LGS System Light Gauge Steel Framing Machine
