C100 C150 Multiple Sizes Light Steel Framing Machine
C100 C150 Multiple Sizes Light Steel Framing Machine
C100 C150 Multiple Sizes Light Steel Framing Machine
C100 C150 Multiple Sizes Light Steel Framing Machine
C100 C150 Multiple Sizes Light Steel Framing Machine
C100 C150 Multiple Sizes Light Steel Framing Machine
C100 C150 Multiple Sizes Light Steel Framing Machine
C100 C150 Multiple Sizes Light Steel Framing Machine
C100 C150 Multiple Sizes Light Steel Framing Machine
C100 C150 Multiple Sizes Light Steel Framing Machine
Specifications
Brand Name :
Sussman
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
5 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Type :
C100 C150
Working Speed :
12-15 meters /minute
Motor Power :
7.5KW
Material :
0.8-1.5mm
Description

C100 C150 Multiple Sizes Light Steel Framing Machine

The Light Steel Framing Machine is the automatic production line. Width 75mm, 89mm, 140mm are the common sizes. The machine includes decoiler, hydraulic punching, hydraulic cutting, 6 meters passive decoiler, industrial computer and so on.

It is a fully automatic wall, floor and roof truss frame design production system using one single dedicated C & U shape profile.
This framing system engineers, designs and produces wall frames, floor truss, and roof trusses complying to all major international light steel framing building codes: America, British, Euro, Canadian and Australian.ed C & U shape profile.

Main Specifications

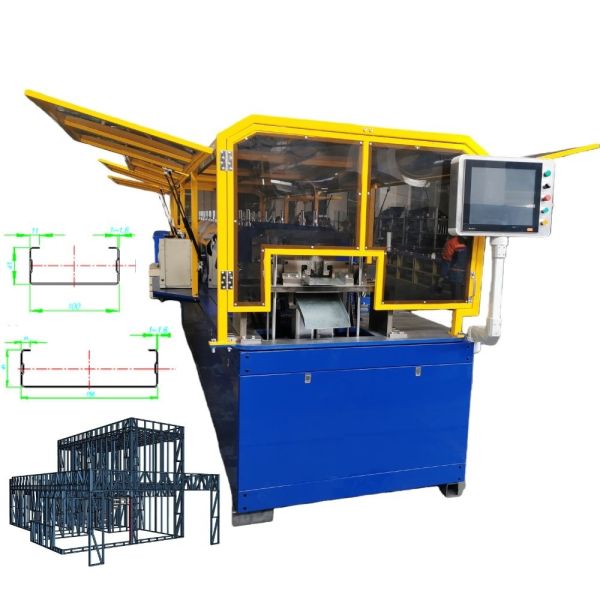

Size 100*41mm,150*41mm
Thickness 0.8-1.6mm(G300-G550Galvanzied coils and Aluzinc )
Standard Producing speed 300-700m/h
Max producing speed 1500m/h
Main motor 11kw Servo motor,
Power supplier 400V 50Hz 3phases according to your request
Hydraulic station 7.5kw Motor
Hydraulic tank capacity 100L
Hydraulic cooling Fan cooling with Accumulator
Hydraulic pressure Manually set
Host cordless remote control Standard
Frame and punching dies Web Notch,Screw hole, chamfer, flange cut, Service Hole, suspension, cutting
Product accuracy+- 0.5mm
CNC inkjet-printer HP inkjet printer
Size 8500*950*1200mm
Weight 7000kg
Color According to your request
De-colier 3 Tons electric decoiler with leveling device

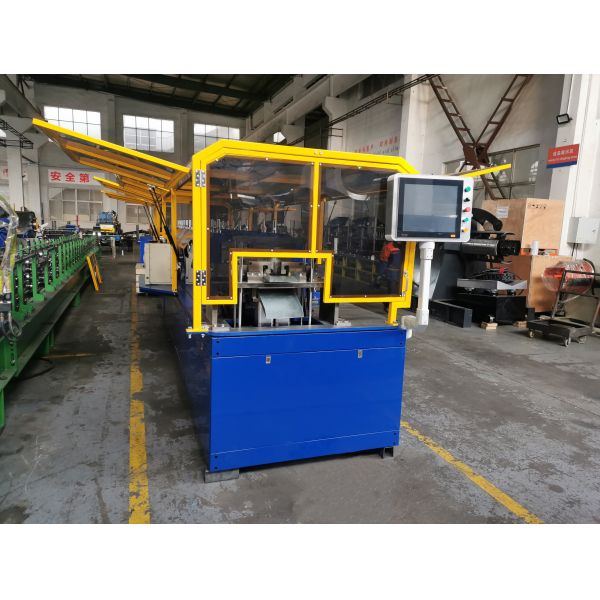

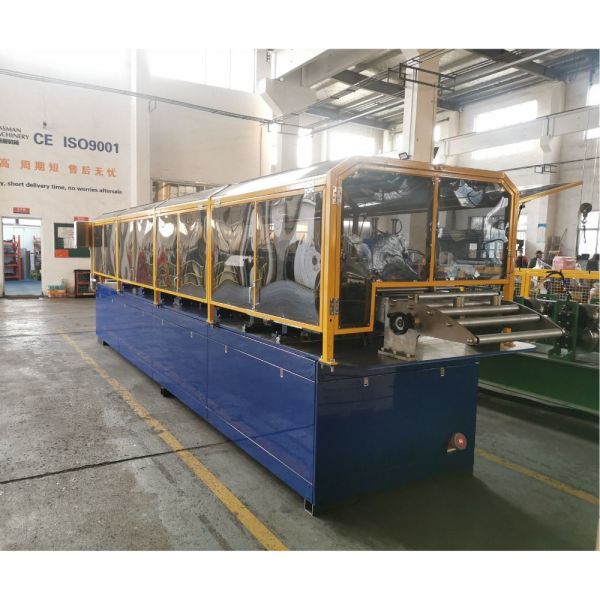

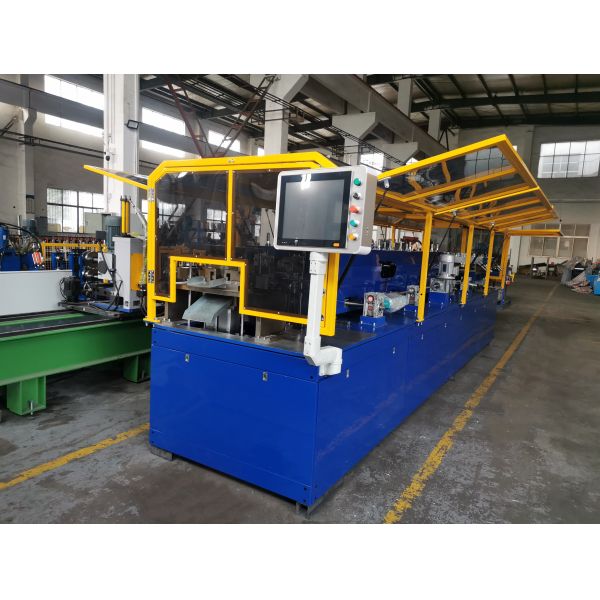

Our machine photo

C100 C150 Multiple Sizes Light Steel Framing Machine

C100 C150 Multiple Sizes Light Steel Framing Machine

Application:

C100 C150 Multiple Sizes Light Steel Framing Machine

C100 C150 Multiple Sizes Light Steel Framing Machine

Softwares:

C100 C150 Multiple Sizes Light Steel Framing Machine

C100 C150 Multiple Sizes Light Steel Framing Machine

C100 C150 Multiple Sizes Light Steel Framing Machine
