Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting
Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting
Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting
Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting
Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting
Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting
Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting
Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting
Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting
Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting
Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting
Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting
Specifications
Brand Name :
Sussman Machinery
Model Number :
SSM-70A
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,Chain
MOQ :
1 set
Price :
negotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 set per month
Delivery Time :
95 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Power Supply :
Customized
Material Width :
270mm
Speed :
10-12m/min
Roller Material :
Gcr15 steel
Cutting :
Non stop cutting
Colour :
Blue or customer's request
Way Of Drive :
1.2 inch chain
Machine Weight :
8T
Description

Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine

Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting

1.70mm Patio Canopies Awning Pipe Roll Forming Machine Technical Parameter

1 Suitable to process Galvanized steel
2 Width of the plate As customer need
3 Thickness of the plate 0.6-1.5mm
4 De-coiler Passive one, can load 3 tons raw material
5 Rollers for forming About 30 rollers
6 Diameter of the roller Φ75mm
7 Rolling material High Grade Steel 45#
8 Main motor power 15KW
9 Productivity About 10-12m/min
10 Cutting method Servo fly saw cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 4kw
13 Processing precision Within 1.50mm
14 Control system Siemems PLC control
15 Main structure of the machine 350 H steel
16 Weight About 8 T
17 Dimensions 15.0*0.95*1.1m
18 Voltage 220V 60Hz 3phases,or according to your request

2. 70mm Patio Canopies Awning Pipe Machine’s Components

Item Components Name Quantity
1 3T Passive Decoiler 1 set
2 Feeding guide device 1 set
3 Roll Forming Machine 1 set
4 Hydraulic Station 1 set
5 PLC control box 1 set
6 Servo fly saw cutting 1 unit
7 Water cooling system 1 set
8 Passive out table 1 unit

3. 70mm Patio Canopies Awning Pipe Profile Drawing

Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting

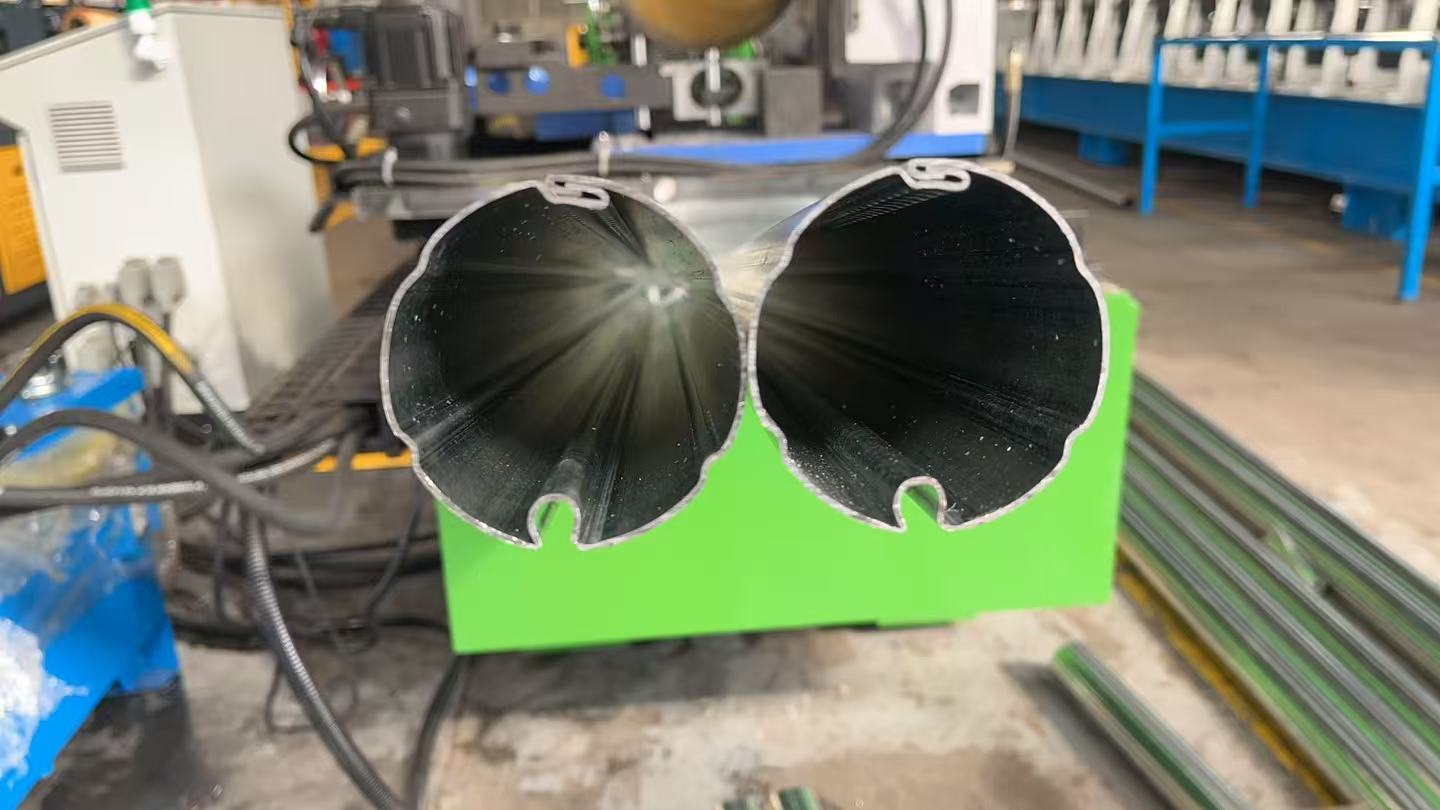

Samples:

Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting

4.Appliction:

Widely used in manufacturing support structures for awnings and canopies, or as reels for large roller

shutters and motorized roller shutters. Additionally, they are frequently utilized in outdoor sunshades,

carports, and event tents.

Macedonia 0.6-1.5 Mm Galvanized Steel Diameter 70mm Patio Canopies Awning Pipe Roll Forming Machine With Servo Fly Saw Cutting

Welcome to consult more details !
