Specifications
Brand Name :
SUSSMAN
Model Number :
SS-FD
Certification :
SGS,CE ,ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
10 sets per month
Delivery Time :
60-90 working days
Packaging Details :
Standard Packing with film coated and steel wire fixed
Name :
1.5 B Deck Floor Machine
Gauge :
22, 20, 18, 16
Forming stations :
32 stations with embossing
Dirve system :
Gearbox
coverage width :
36"(914mm)
Shaft diameter :
100mm
Description

Metal 1.5" B Type Roof Deck Roll forming machine Steel Decking Floor Roll Forming Machine With Embossing

The metal deck is a steel structure building material produced by cold roll forming, which is used for supporting floor concrete in the construction industry. It is also called a metal floor deck.

The normal machinable thickness range of our steel deck roll forming machine is 0.8-1.2mm, the standard or more used in international market is Gauge 22, 20, 18, 16 (0.75-1.5mm), working raw material is PPGI, Galvanized steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave. Sussman Machinery is always your best choice of metal deck roll forming machine.

Floor Deck Making Machine Technical Parameter

Item NO

Description
UnitType
RF-DF
1
Steel Thickness
mm
0.8-1.5mm Grade 50, G60 (standard), G90
2
Forming Speed
m/min
0-30m/min
3
Roller stands
stand
33
4
Roller Material
Gcr15 chromed, HRC55-58
5
Shaft diameter
Ф100mm
6
Main Motor Power
kw

18.5*2kw
7
Hydraulic cutting Power
kw
5.5
8
Hydraulic pressure
Mpa
12
9
Power Supply
220V, 60HZ,3 phase
10
Tolerance
mm
1.5
11
Material of cutting
Cr12mov
12
Control system
PLC with touch screen

Machine List

No

Name

Quantity

1

10T hydraulic de-coiler with coil car

1 set

2

Main roll forming machine with embossing pattern

1 set

3

PLC control box

1 unit
4 Stop cutting 1 unit

4

Hydraulic station

1 unit

5

Out table or auto stacker

2 units

Working Flow of Machine

Uncoiling—Feedingwith guide--Roll forming with embossing—Cutting—Products collecting

Standard Profile Drawing of product

  • B-Deck provides a reliable and economic structural base for roofing, while also contributing to structural stability against lateral wind and seismic forces when properly designed.

    B-Deck is available in the below profile options:

    • Nestable

    • Interlocking with Top Seam Weld/Button Punch

    • Interlocking with Screwed Sidelap

  • Coverage Width: 36”

    Minimum Slope : ½:12

    Panel Attachment : Exposed Fastening System

    Finishes : Composite (embossed) or Non-Composite (smooth)

    Substrate: Grade 50, G60 (standard), G90 (optional; requires special pricing)

    Rib Spacing : 6"

    Rib Height : 1 1/2"

22 Gauge To 16 Gauge Thickness Steel Roof Deck Roll Forming Machine, 1.5

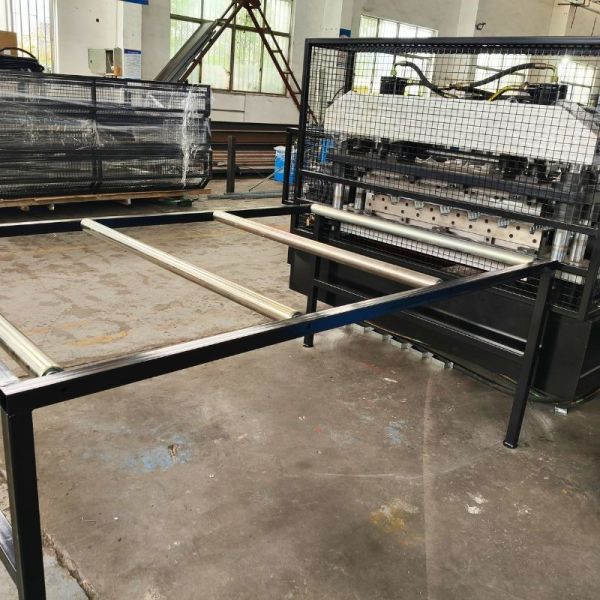

Machine Photo

22 Gauge To 16 Gauge Thickness Steel Roof Deck Roll Forming Machine, 1.5

22 Gauge To 16 Gauge Thickness Steel Roof Deck Roll Forming Machine, 1.5

22 Gauge To 16 Gauge Thickness Steel Roof Deck Roll Forming Machine, 1.5
