0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine
0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine
0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine
0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine
0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine
0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine
0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine
0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine
0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine
0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM- CM
Certification :
SGS.CE.ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD16500-USD18500 Per set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 days after get the first payment
Packaging Details :
Standard Packing with steel wire fixed and plastic film coated
Material :
U Channel Roll Forming Machine
Dirve system :
1 inch single Chain drive
Forming speed :
10-12m/min(not include cutting time)
Roller stations :
9 stations
Description

0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine

Coil material
Material thickness
0.6-1.2mm galvanized coil
Molding system
Scrolling speed
With drive chain, speed 10 meters/minute
Roller station
Approximately 10 stations
Roller material
Quenched GCr15 steel
Shaft material
45# steel, 75mm diameter shaft
Main motor power
5.5 kilowatts
Cutting
system
Cutting materials
CR12 quenching treatment
hardness
Hardness HRC58-62
Tolerance
±1.5 mm
Cutting blade
A set of cutting blades
Electrical control system
power supply
220V, 60Hz, three-phase, as per buyer's requirements
control system
PLC with touch screen
weight
Approximately 3 tons
Driving style
1-inch single chain
Machine size
4500mm long * 800mm wide * 1000mm high

Machine List:

3-ton passive wire feeding frame
1 set
Main roll forming machine
1 set
PLC control box
1 unit
Hydraulic cutting device
1 unit
6-meter passive output meter
1 unit
spare parts
1 pack

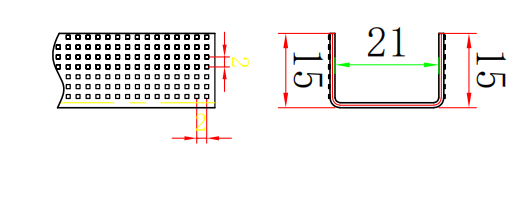

Profile Drawing:

0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine

Sample Pictures:

0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine

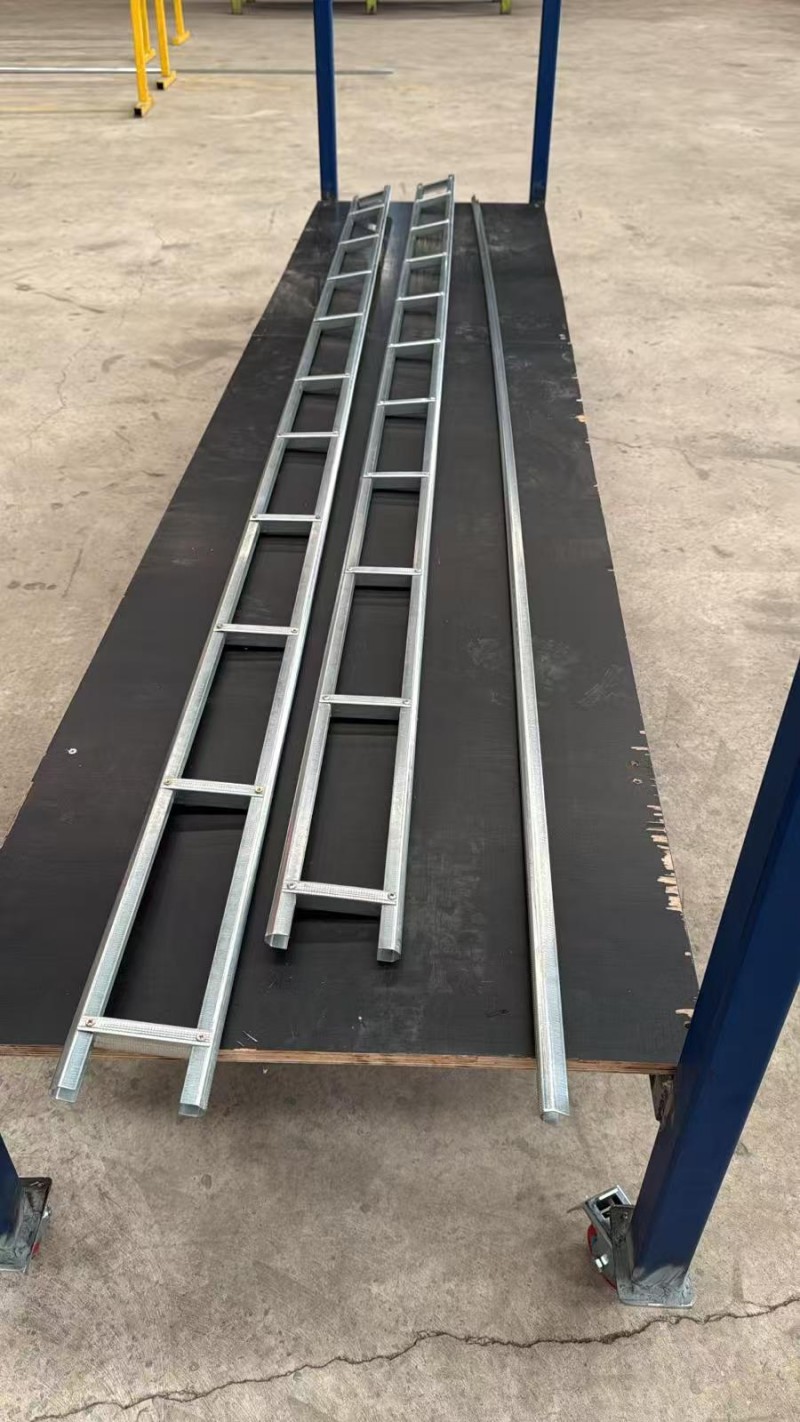

Application:

0.6-1.2mm Thickness Embossing Bottom 21*15mm Metal U Channel Roll Forming Machine
