0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine
0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine
0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine
0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine
0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine
0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine
0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine
0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine
0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine
0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine
Specifications
Brand Name :
SUSSMAN
Model Number :
SS-FD
Certification :
SGS,CE ,ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
10 sets per month
Delivery Time :
60-90 working days
Packaging Details :
Standard Packing with film coated and steel wire fixed
Name :
B Type Deck Floor Roll Forming Machine
material thickness :
0.8-1.2mm
Forming stations :
28 stations
Dirve system :
Chain drive
Description

0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine

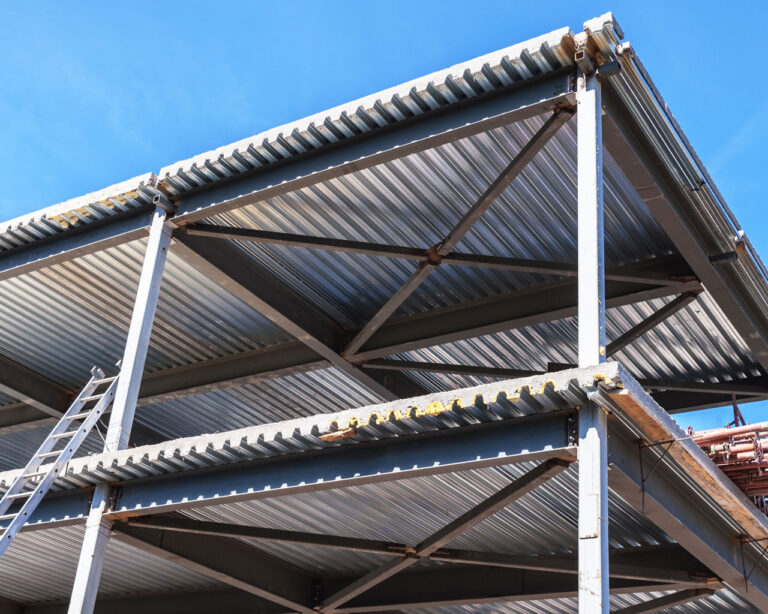

The metal deck is a steel structure building material produced by cold roll forming, which is used for supporting floor concrete in the construction industry. It is also called a metal floor deck. Steel decking products are the preferred method of floor construction for multi-story structural steel framed buildings. Floor deck offers structural engineers and contractors a versatile and cost-effective composite steel flooring solution.

The advantages of the metal deck roll forming machines are a high wave, high strength, high automation and low cost.

* "B" deck is generally known as "wide rib" deck
* The most common deck profile in the industry and by far the most widely used
* Comes in 36” coverage

Floor Deck Making Machine Technical Parameter

  • Steel Thickness: 0.8 – 1.2 mm

  • Forming Speed: 0 – 10 m/min

  • Roller Stands: 28 – 30 stands

  • Roller Material: Gcr15, chromed, HRC55-60

  • Shaft Diameter: Ф90 mm

  • Main Motor Power: 11 kW × 2

  • Hydraulic Cutting Power: 5.5 kW

  • Hydraulic Pressure: 12 Mpa

  • Power Supply: 220V, 60Hz, 3 phase

  • Length Tolerance: ±1.5 mm

  • Cutting Blade Material: Cr12mov

  • Control System: PLC with touch screen

  • Drive System: Chain drive (1.6 inch pitch)


Machine List

10 tons de-coiler with coil car and arm device 1 set
Feeding with guide 1 set
Main roll forming machine 1 set
Hydraulic cutting 1 set
Control box 1 unit
Hydraulic station 1 unit
4 meters passive out table 1 set
Safety cover 1 set
Spare parts 1 package

Working Flow of Machine

Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting

0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine

Standard Profile Drawing of product

0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine

0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine

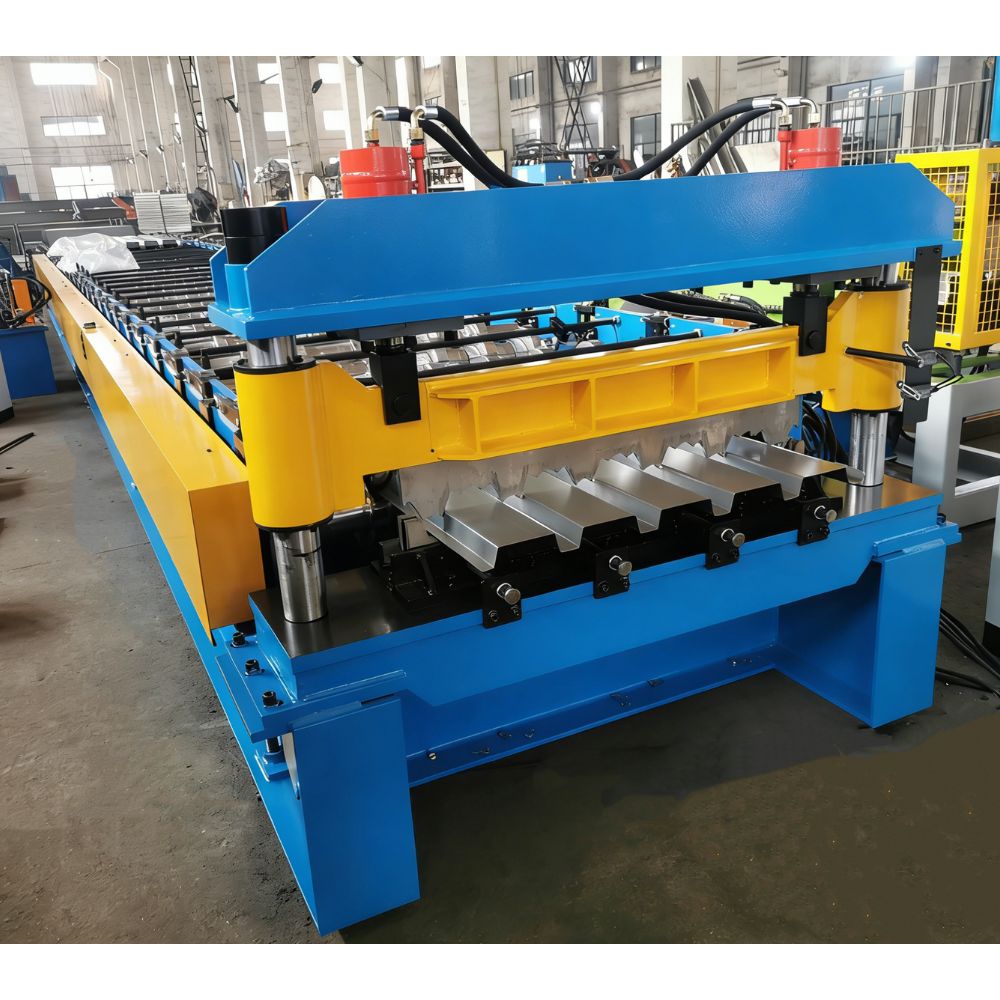

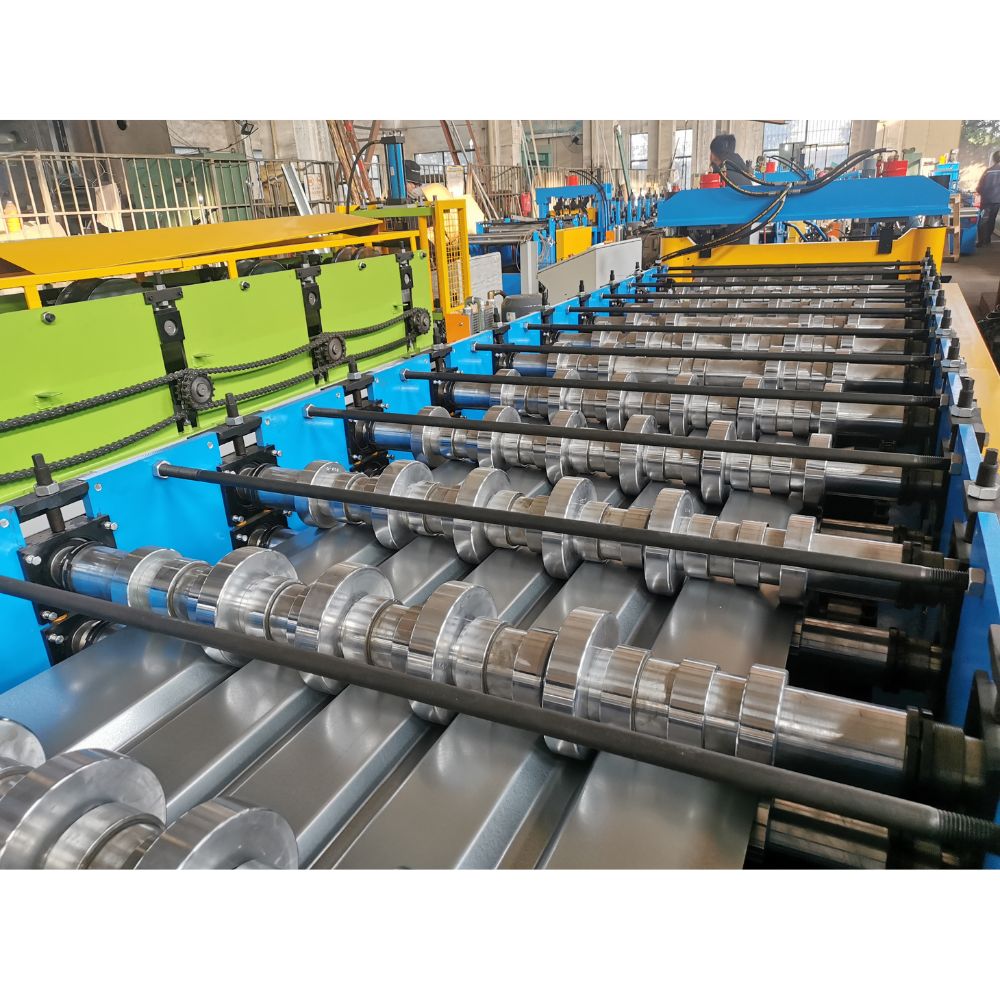

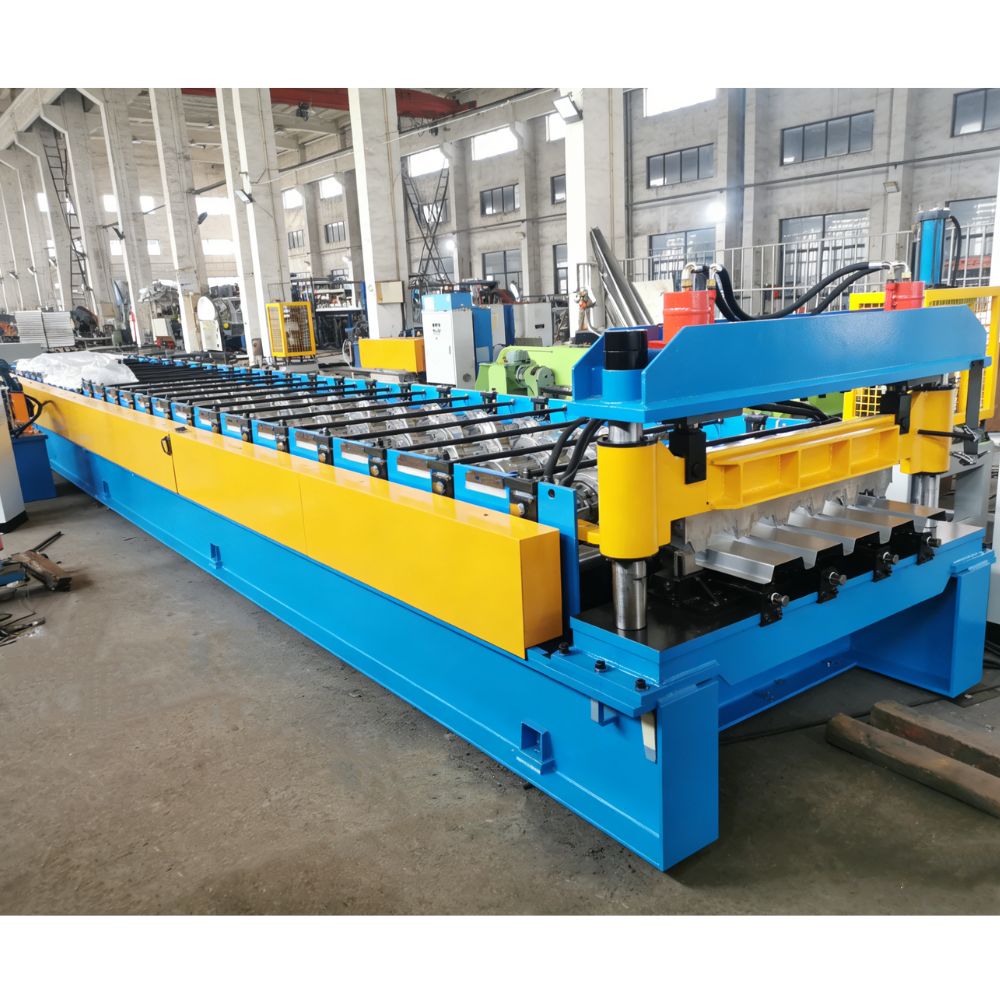

Machine Photo

0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine

0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine

0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine

Advantage

  • "B" deck is generally known as "wide rib" deck
  • The most common deck profile in the industry and by far the most widely used
  • Comes in 36” coverage

0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine

0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine

0.8-1.2mm Thickness Galvanized Steel B Type Roof Floor Deck Roll Forming Machine

Our service

1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
