Specifications
Brand Name :
Sussman Machinery
Model Number :
SSM-DFF
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotation
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
10 set per month
Delivery Time :
95 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Material Thickness :
thickness 0.8-1.2mm, Galvanized steel
Working Speed :
About 5-6m/min
Forming Steps :
About 12 stations
Main motor power :
5.5 KW
Driven system :
Chain driven
Description

0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail


0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail


Machine List:


S.N
Equipment name
Quantity
1
3 ton passive de-coiler
1 set
2
Main roll forming machine
1 set
3
Hydraulic punching and cutting
1 set
4
PLC Control box
1 unit
5
Hydraulic station
1 unit
6
Passive output table
1 set
7
Safety cover
1 set
8
Spare parts
1 Package
Machine Specification:
1
Material Thickness
thickness 0.8-1.2mm, Galvanized steel
2
Working Speed
About 5-6m/min
3
Forming Steps
About 12 stations
4
Material of Roller
Gcr15, Quench HRC58-62 Plated Chrome
5
Driven system
Chain driven
6
Main motor power
5.5 KW
7
Cutting type
Hydraulic cutting
8
Material of cutting
CR12 with quench treatment
9
Electronic control
PLC control


0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail

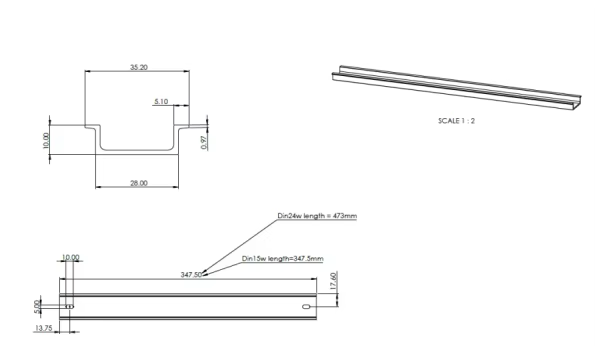

product display


0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail

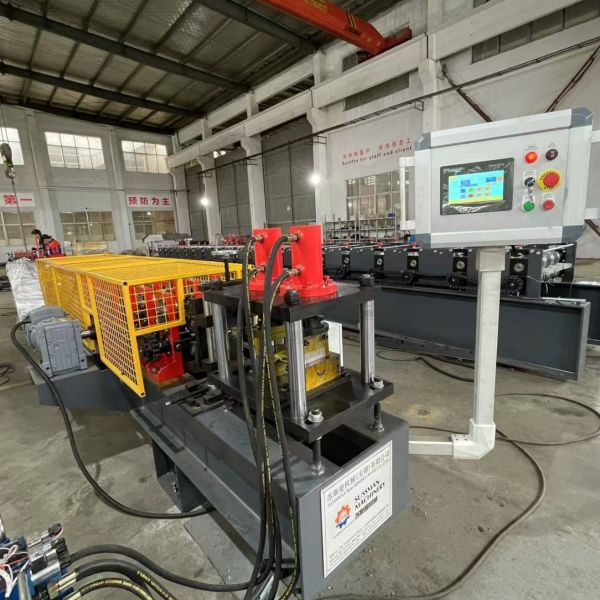

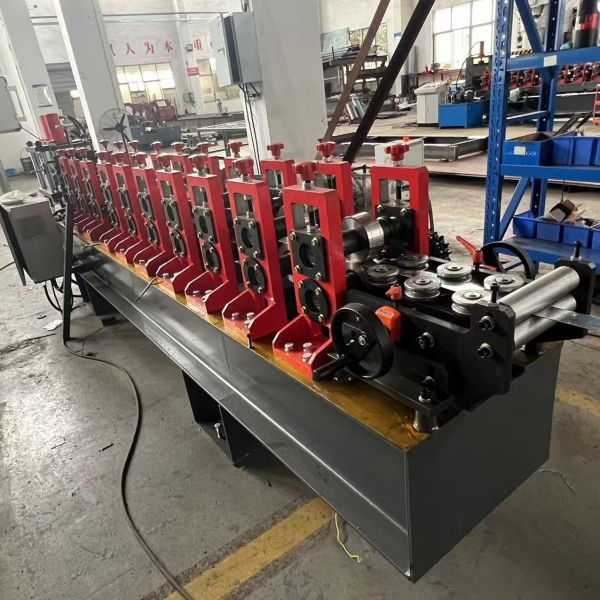

Our machine photo


0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail

0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail

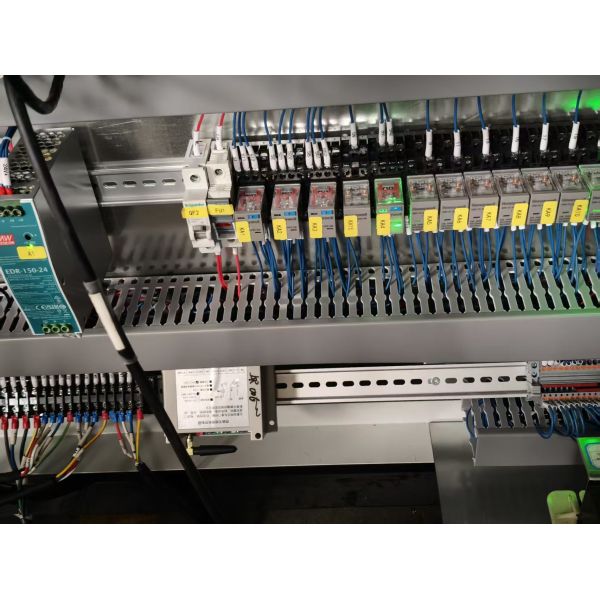

Application


0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail

0.8-1.2mm Thickness Galvanized Steel Din Rail Roll Forming Machine for Electrical Cabinet Channel Rail
